Install Additional Fan For Comand - AN82.85-P-0005-01GQC

MODEL 292.3 with CODE 522 (Audio 20 radio)

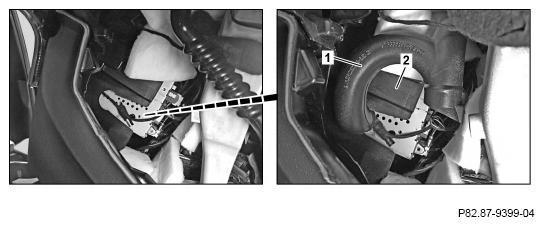

Engage air exhaust duct (1) in right-hand guide at slot (2) of COMAND controller unit as shown.

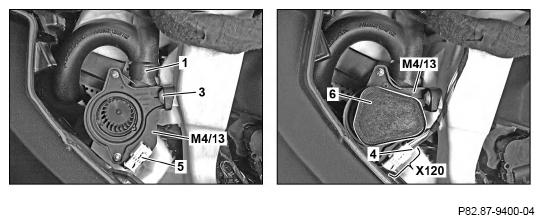

Engage COMAND fan motor (M4/13) in air exhaust duct (1) and tighten screw/bolt (3).
Engage white 4-pin connector (4) in white 4-pin plug (5) and therefore make the radio fan electrical connection (X120).
Engage filter (6) in COMAND fan motor (M4/13) as shown.
