Retrofit WLAN Antenna For Comand - AN82.85-P-0005-05GQC

MODEL 292.3 with CODE 522 (Audio 20 radio)

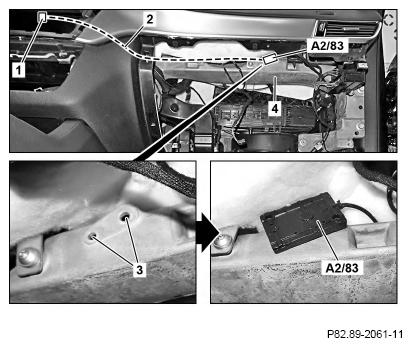

1. Clip W-LAN antenna (A2/83) into holes (3) on instrument panel support (4).

   The mounts of the WLAN antenna (A2/83) have positive fit with the holes (3); the WLAN antenna (A2/83) can therefore only be installed in one position.

2. Route electrical line (2) along instrument panel support (4) to device installation frame of COMAND controller unit and fix in place using cable ties.

The beige 1-pin connector (1) is connected to the COMAND controller unit when the COMAND controller unit is installed.
