Remove/Install TV Antenna Amplifier - AR82.62-P-8302GQC
MODEL 292
with CODE 537 (Digital radio (DAB))
with CODE 865 (TV tuner)
MODEL 292
with CODE 865 (TV tuner)
except code 537 (Digital radio (DAB))
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||

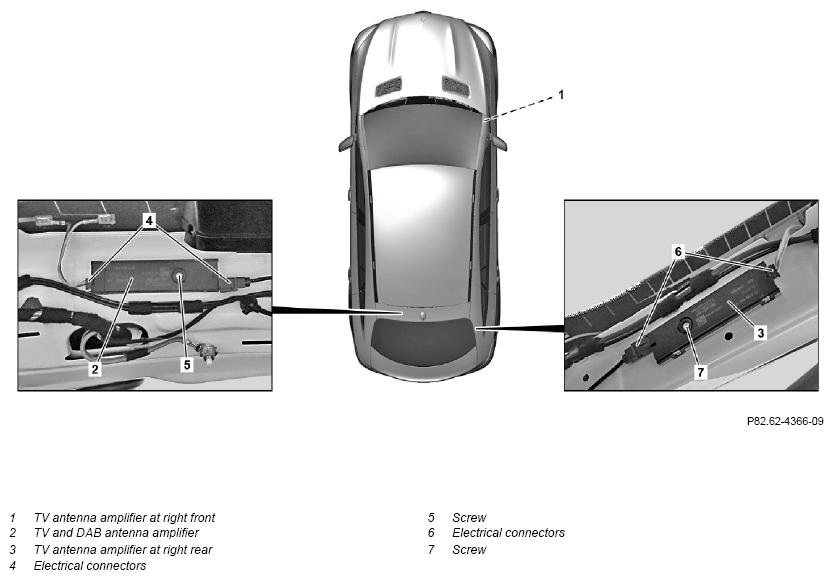

| 1.1 | Remove door trim on liftgate | When replacing the TV and DAB antenna amplifier (2) or the TV antenna amplifier at right rear (3). | |
| AR72.20-P-6445GQC | |||
| 1.2 | Remove paneling on passenger-side A-pillar | When replacing the TV antenna amplifier at right front (1). | |
| AR68.30-P-4050GQC | |||
| 2 | Switch on ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 3.1 | Separate electrical connections (6) | Model 292 with code 865 (TV tuner) except code 537 (Digital radio (DAB)) When replacing the TV antenna amplifier at right rear (3). |
|
| 3.2 | Disconnect electrical connections (4) | Model 292 with code 537 (Digital radio (DAB)) with code 865 (TV tuner) When replacing the TV and DAB antenna amplifier (2). |
|
| 3.3 | Disconnect electrical connectors | Model 292 with code 865 (TV tuner) except code 537 (Digital radio (DAB)) When replacing the TV antenna amplifier at right front (1). |
|
| 4.1 | Unscrew screw/bolt (7) | Model 292 with code 865 (TV tuner) except code 537 (Digital radio (DAB)) When replacing the TV antenna amplifier at right rear (3). |
|
| 4.2 | Remove screw (5) | Model 292 with code 537 (Digital radio (DAB)) with code 865 (TV tuner) When replacing the TV and DAB antenna amplifier (2). |
|
| 4.3 | Remove bolt | Model 292 with code 865 (TV tuner) except code 537 (Digital radio (DAB)) When replacing the TV antenna amplifier at right front (1). |
|
| 5 | Remove TV and DAB antenna amplifier (2), TV antenna amplifier at right rear (3) or TV antenna amplifier at right front (1) | ||
| 6 | Install in the reverse order |
