Remove/Install Liftgate Door Panel - AR72.20-P-6445GQC
MODEL 292
| Remove/install | |||

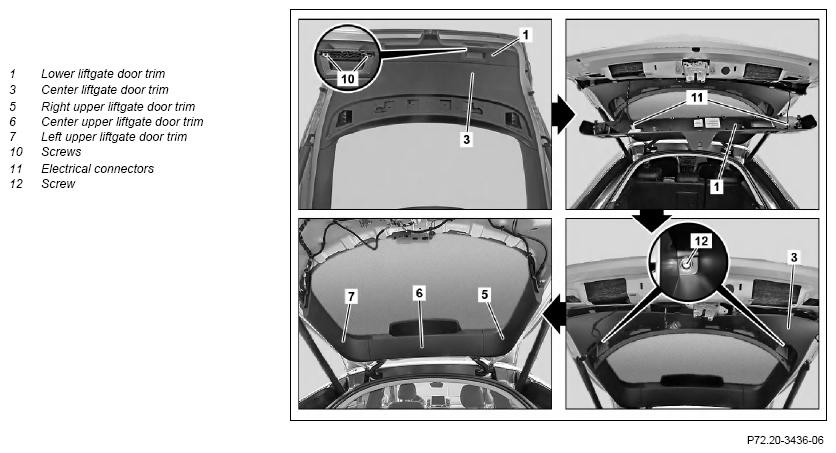

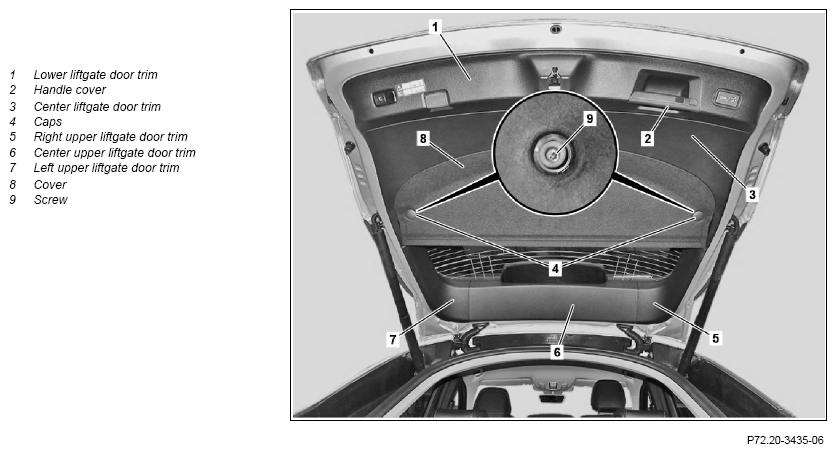

| 1 | Unclip handle cover (2) | Fig 1 | |
| 2 | Remove screws (10) | ||
| 3 | Unclip lower liftgate door trim (1) and remove until electrical connectors (11) are accessible | Fig 1 | |
| 4 | Disconnect electrical connectors (11) and remove lower liftgate door trim (1) | ||
| 5 | Unclip caps (4) | Fig 1 | |
| 6 | Remove screws (9) | ||
| 7 | Unclip cover (8) and remove | Fig 1 | |
| 8 | Remove screws (12) | ||
| 9 | Unclip center liftgate door trim (3) and remove | Fig 1 | |
| 10 | Unclip right upper liftgate door trim (5) and remove | Fig 1 | |
| 11 | Unclip left upper liftgate door trim (7) and remove | Fig 1 | |
| 12 | Unclip center upper liftgate door trim (6) and remove | Fig 1 | |
| 13 | Install in the reverse order |
