Remove/Install GSM-Net Compensator - AR82.70-P-0040GQC
MODEL 292
with CODE 386 (Comfort telephony)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch on ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 2 | Remove rear seat cushion | AR91.12-P-1021GQC | |
| 3 | Remove folding rear backrest | AR91.12-P-1721GQC | |
| 4 | Remove door sills in rear | AR68.30-P-4100GQ | |
| 5 | Fold floor covering forward | ||

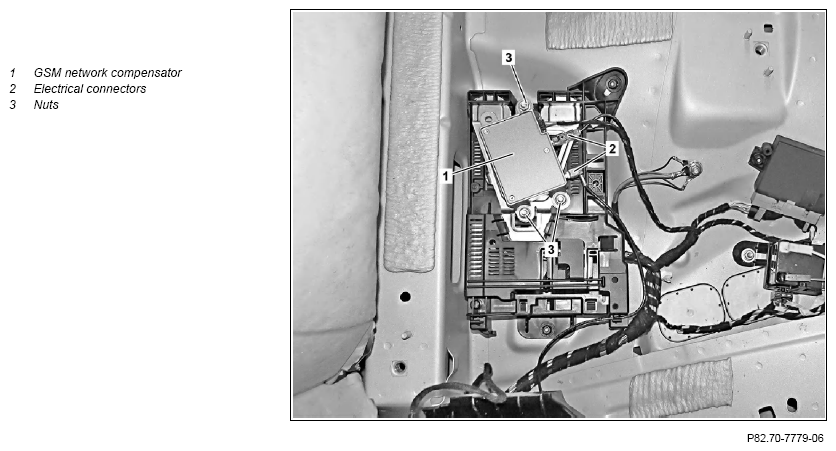

| 6 | Separate electrical connectors (2) | ||
| 7 | Unscrew nuts (3) | ||
| 8 | Remove GSM network compensator (1) | ||
| 9 | Install in the reverse order |
