Partially Replace Side Rear End - AR64.20-P-1015GQC
MODEL 292
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. | AS00.00-Z-0017-01A | |
| General information on body repair | AH60.00-P-0001-01A | ||
| General information on MB materials | AH98.00-P-9409-03A | ||
| Remove | |||
| 1 | Remove detachable parts in area to be repaired | ||
| 2 | Cover all detachable parts remaining in vehicle with fire-resistant welding protection blanket | ||
| 3 | Set straightening bench with modular members, straightening bench crossmember and straightening set | ||
| 000 588 01 23 00 Body straightening system | WS60.00-P-0023K | ||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 4 | Place vehicle on straightening bench and fasten | ||

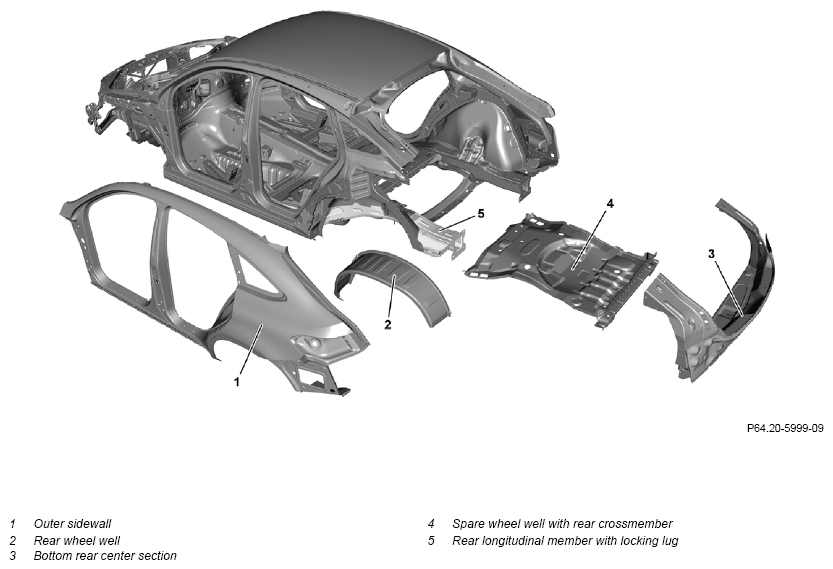

| 5 | Remove outer side wall (1) | AR63.10-P-0805GQC | |
| 6 | Install rear wheel well (2) | AR63.10-P-0665GQC | |
| 7 | Completely remove bottom rear center section (3) | AR64.20-P-1000GQC | |
| 8 | Remove spare wheel well with rear crossmember (4) | AR64.20-P-1245GQ | |
| 9 | Remove rear longitudinal member wit locking lug (5) | AR64.20-P-1260-01GQ | |
| Zinc dust paint suitable for spot welding, replaced by A 000 986 28 00 1K Zinc dust paint | *BR00.45-Z-1001-07A | ||
| 10 | Prepare rear longitudinal member with locking lug (5) for installation | AR64.20-P-1260-02GQ | |
| Zinc dust paint suitable for spot welding, replaced by A 000 986 28 00 1K zinc dust paint | *BR00.45-Z-1001-07A | ||
| Install | |||
| The high voltage used for electric welding presents a lethal hazard. Risk of explosion from welding in areas close to highly inflammable materials. Risk of injury from weld splatter and UV-light when welding. Risk of poisoning from inhaling welding gases | Use insulating mats. Wear protective clothing, safety glasses and a protective mask. Remove highly inflammable materials from the hazard area. Use air extraction system. | AS00.00-Z-0007-01A | |
| 11 | Install rear longitudinal member with locking lug (5) | AR64.20-P-1260-03GQ | |
| Measures for preventing damage to components when performing electric welding and soldering work | AH60.00-P-0001-02A | ||
| 000 588 01 84 00 Welder | WS60.00-P-0021K | ||
| 000 588 02 84 00 Welder | WS60.00-P-0022K | ||
| Zinc dust paint suitable for spot welding, replaced by A 000 986 28 00 1K zinc dust paint | *BR00.45-Z-1001-07A | ||
| 12 | Remove spare wheel well with rear crossmember (4) | AR64.20-P-1245GQ | |
| 13 | Completely install bottom rear center section (3) | AR64.20-P-1000GQC | |
| 14 | Install rear wheel well (2) | AR63.10-P-0665GQC | |
| 15 | Install outer sidewall (1) | AR63.10-P-0805GQC | |
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 16 | Release vehicle from straightening bench and remove straightening bench | ||
| 17 | Clean welds and sheet metal flanges | ||
| 18 | Remove fire-resistant welding blankets | ||
| 19 | Clean repair area | ||
| Risk of explosion caused by paint vapors igniting. Risk of poisoning caused by inhaling paint vapors. | No smoking! No open fire! Use respiratory protection, protective clothing, gloves, safety glasses and protective skin cream. Ensure that the area is well ventilated. | AS98.00-Z-0002-01A | |
| 20 | Prime repair area using primer filler Notes on paintwork repairs |
AH98.00-P-9408-02A | |
| Risk of explosion and poisoning caused by solvent vapors and gasses. Risk of injury to skin and eyes when working with anticorrosion agents | Never spray corrosion protection on flames or hot, glowing objects and keep them well away from all potential sources of ignition. Use them only in well-ventilated rooms; wear respiratory protection. | AS97.00-Z-0001-01A | |
| 21 | Seal seam following repairs | AR97.10-P-4000GQ | |
| Notes on sprayable joint sealant | AH97.10-P-0002-01A | ||
| Notes on seam seal | AH97.10-P-0002-02A | ||
| Risk of explosion caused by paint vapors igniting. Risk of poisoning caused by inhaling paint vapors. | No smoking! No open fire! Use respiratory protection, protective clothing, gloves, safety glasses and protective skin cream. Ensure that the area is well ventilated. | AS98.00-Z-0002-01A | |
| 22 | Paint repair areas and adjacent surfaces Notes on paintwork repairs |
AH98.00-P-9408-02A | |
| 23 | Add cavity preserving agent | AR97.20-P-1500GQ | |
| 24 | Install detachable parts in area to be repaired |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1001-07A | Zinc dust paint suitable for spot welding, replaced by A 000 986 28 00 1K zinc dust paint | A 000 986 34 42 |
