Cavity Preservation Following Repair Work - AR97.20-P-1500GQ

MODEL 166, 292

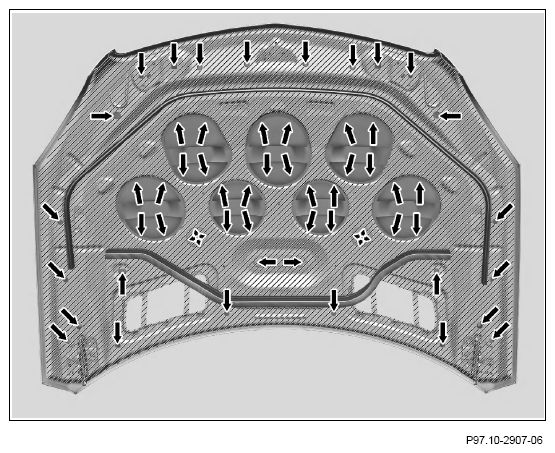

Shown on engine hood of model 166

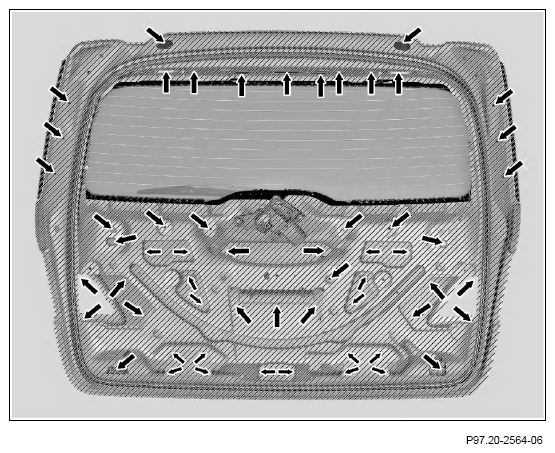

Shown on liftgate of model 166

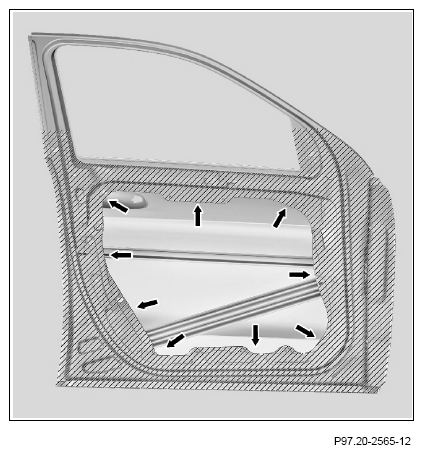

Shown on front door of model 166

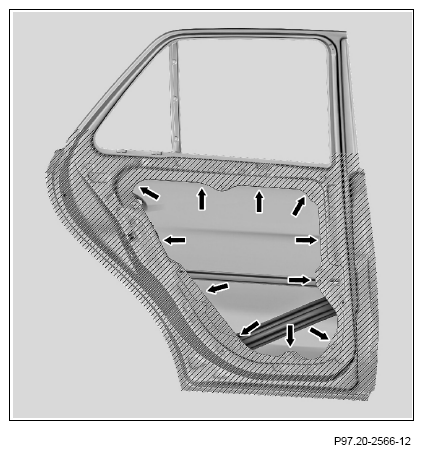

Shown on rear door of model 166

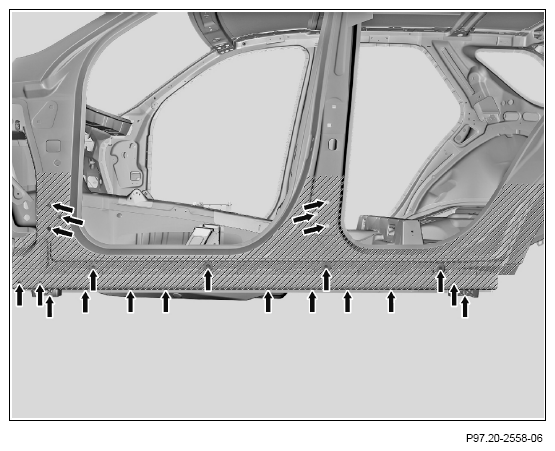

Shown on outer longitudinal member on model 166

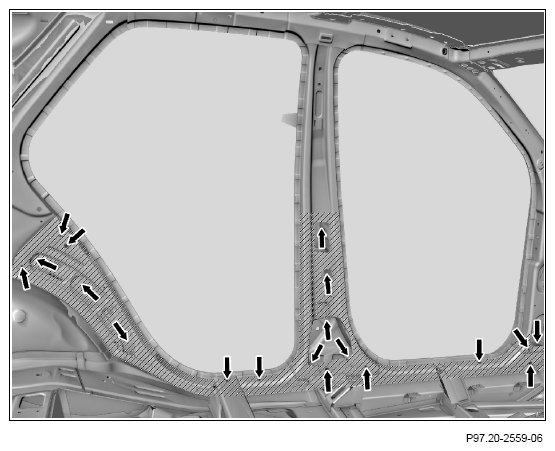

Shown on inner longitudinal member on model 166

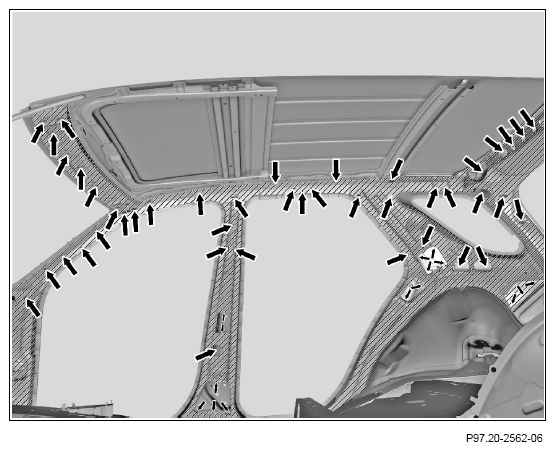

Shown on A, B, C, D-pillar and inner roof frame on model 166

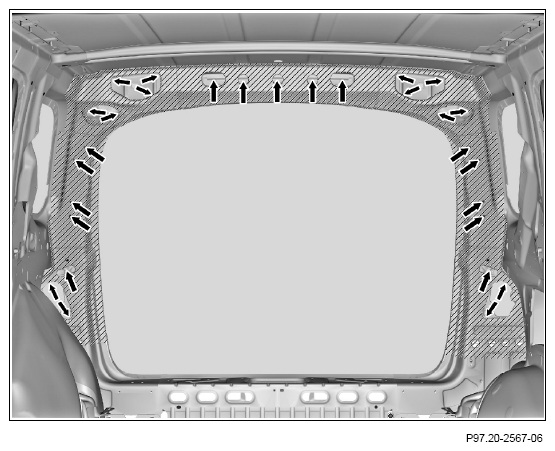

Shown on rear roof frame and D-pillars on model 166

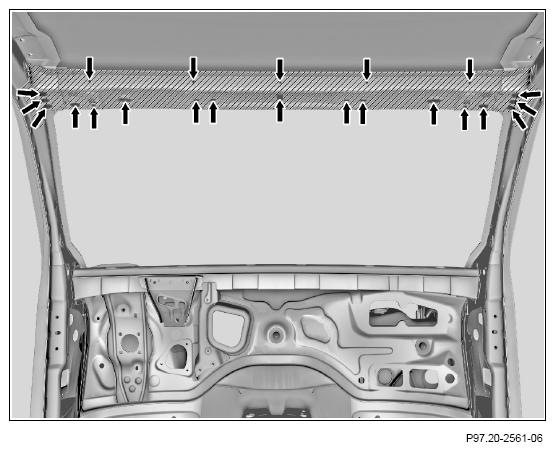

Shown on front roof frame on model 166

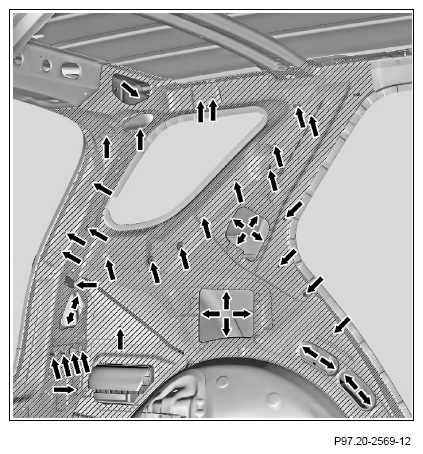

Shown on inner side wall on model 166

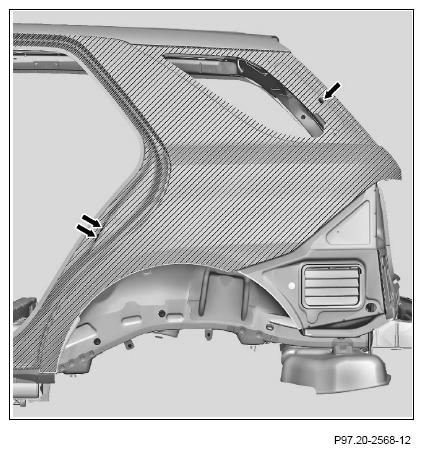

Shown on outer side wall on model 166

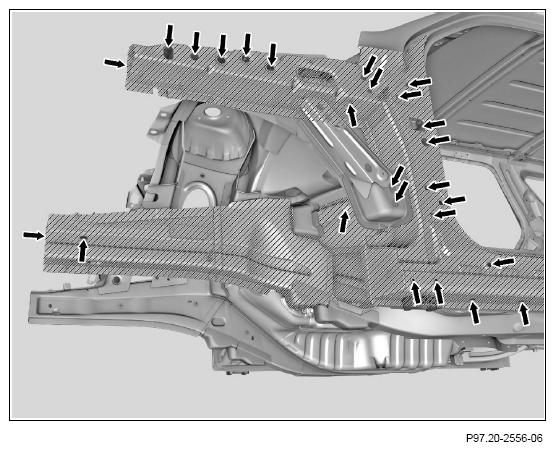

Shown on outer front longitudinal member and lower A-pillar on model 166

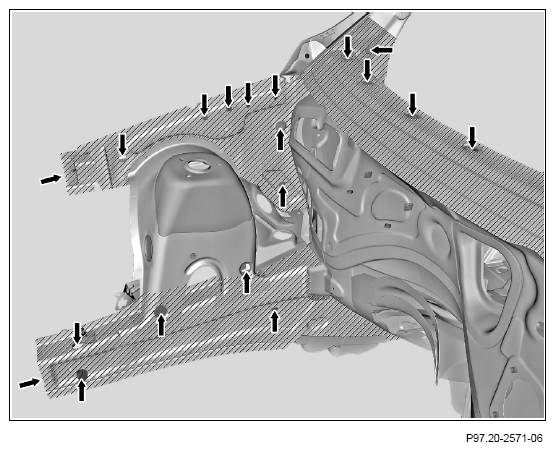

Shown on inner front longitudinal member and upper firewall on model 166

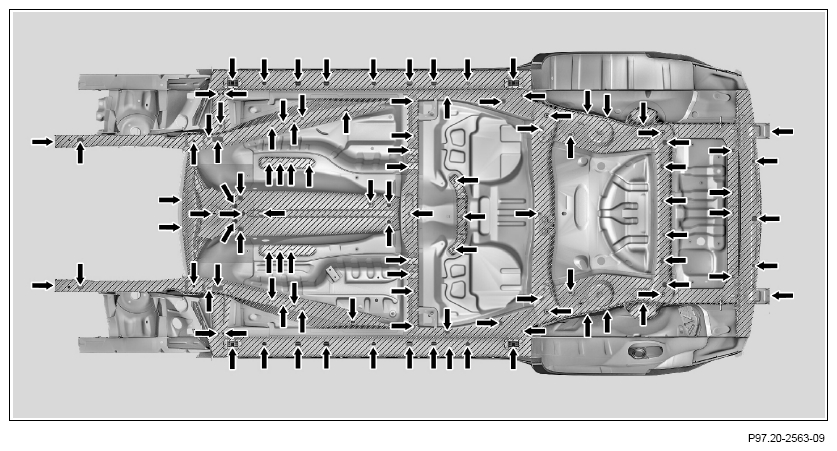

Shown on undercarriage (entire) on model 166

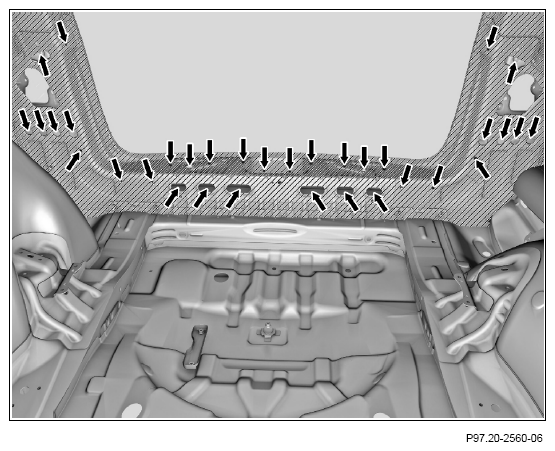

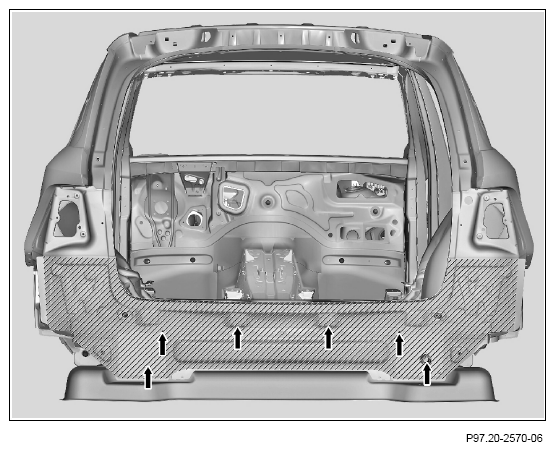

Shown on inner rear end assembly on model 166

Shown on outer rear end assembly on model 166

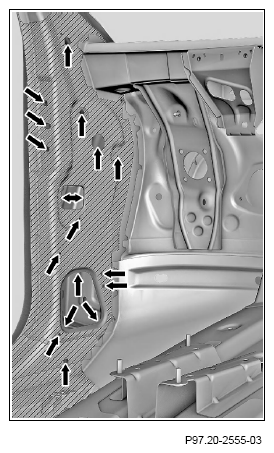

Shown on inner A-pillar on model 166

	Risk of explosion and poisoning caused by solvent vapors and gasses. Risk of injury to skin and eyes when working with anticorrosion agents	Never spray corrosion protection on flames or hot, glowing objects and keep them well away from all potential sources of ignition. Use them only in well-ventilated rooms; wear respiratory protection.	AS97.00-Z-0001-01A
	Notes on cavity preservation		AH97.20-P-0001-01B
	Apply preservation agent
1	Perform cavity preservation after repair in processed area and replace detachable body parts
		Model 166	AP97.20-P-0640-01A
		Cavity preservation, solvent-free (1 l container)	*BR00.45-Z-1003-05A
2	Remove cavity sealant from drain holes

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1003-05A	Cavity preservation, solvent-free (1 l container)	A 000 986 72 70 05
