Remove/Install Electric Parking Brake Control Unit - AR42.20-P-0610GQC

MODEL 292

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Connect diagnostic system and store basic data of electric parking brake control unit (1)	When replacing the electric parking brake control unit (1).
			AD00.00-P-2000-04A
2	Switch off ignition and keep transmitter key at a location beyond transmitter range (at least 2 m)
3	Remove rear seat cushion		AR91.12-P-1021GQC
4	Remove folding rear seat backrest		AR91.12-P-1721GQC
5	Remove rear door sill moldings		AR68.30-P-4100GQ
6	Fold floor covering forward

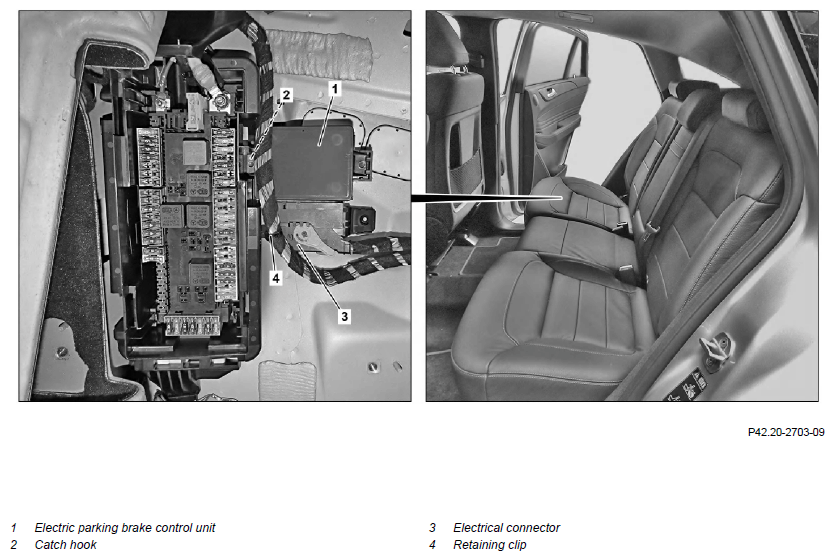

7	Unclip retaining clip (4)
8	Unclip catch hook (2) and lift electric parking brake control unit (1) at front
9	Remove electric parking brake control unit (1) from guide and lift out
10	Disconnect electrical connector (3)
11	Install in the reverse order
	Initial startup
12	Perform SCN coding of electric parking brake control unit (1) using diagnostic system	When replacing the electric parking brake control unit (1).	AR54.21-P-0015X
13	Transfer previously stored basic data to electric parking brake control unit (1)	When replacing the electric parking brake control unit (1).
			AD00.00-P-2000-04A
14	Perform initial startup of electric parking brake control unit (1)	When replacing the electric parking brake control unit (1).
