Remove/Install Motor For Roller Sun Blind On Panoramic Sliding Roof - AR77.21-P-0490GQC
MODEL 292 with CODE 413 (Automatic panoramic sliding sunroof)
Shown on MODEL 176
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||

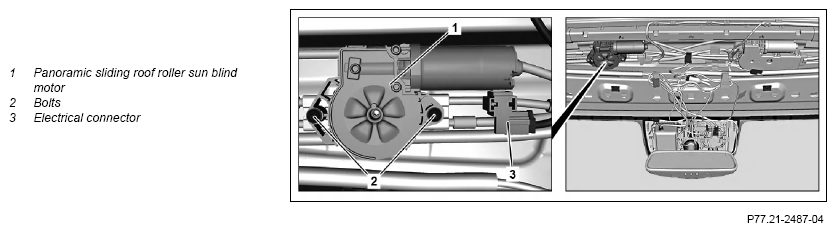

| 1 | Detach headliner in front area until panoramic sliding roof roller sun blind motor (1) is accessible | AR68.30-P-4300GQC | |
| 2 | Disconnect electrical connector (3) | ||
| 3 | Remove screws (2) | ||
| 4 | Remove panoramic sliding roof roller sun blind motor (1) | ||
| 5 | Install in the reverse order | ||
| 6 |
Synchronize panoramic sliding roof with diagnostic system and perform teach-in run for automatic reversing function | AD00.00-P-2000-04A |
