Remove/Install Roller Sun Blind On Panoramic Sliding Roof - AR77.21-P-0215GQC
MODEL 292 with CODE 413 (Automatic panoramic sliding sunroof)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Remove | |||
| 1 | Remove panoramic sliding roof | AR77.21-P-0500NKA | |

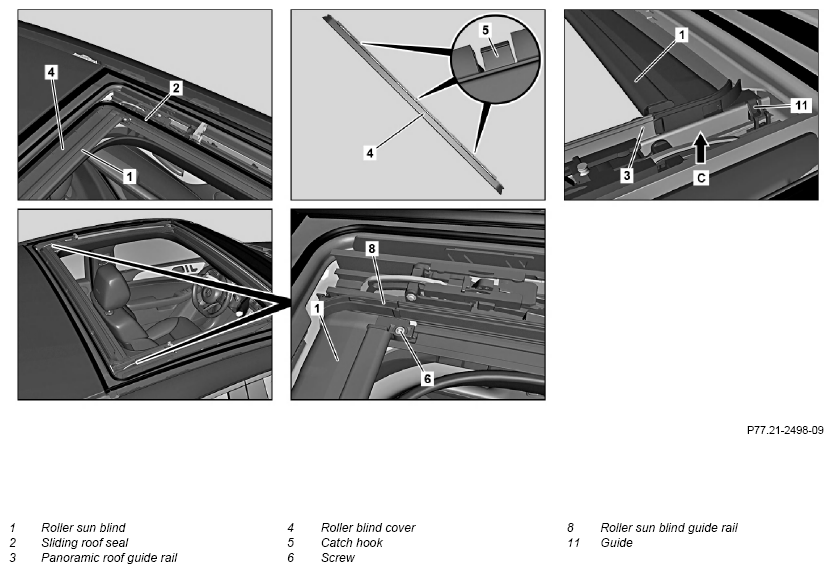

| 2 | Remove sliding roof seal (2) in area of roller sun blind (1) from panoramic roof guide rail (3) | ||
| 3 | Unclip roller sun blind cover (4) in area of catch hooks (5) and remove | ||
| 4 | Remove bolts (6) | ||

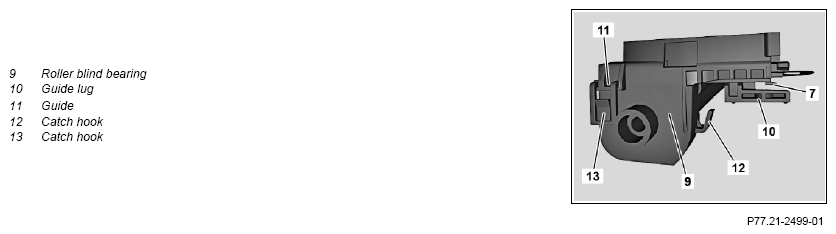

| 5 | Release catch hook (12) (arrows B) and catch hook (13) from roller blind bearing (9) and remove roller sun blind (1) from panoramic roof guide rail (3) | ||
| Install | |||
| 6 | Position roller sun blind (1) with left and right roller blind bearing (9) on panoramic roof guide rail (3) | ||
| 7 | Insert guide (11) into cutout in panoramic roof guide rail (3) and clip right roller blind bearing (9) into panoramic roof guide rail (3) | ||
| 8 | Insert guide lugs (10) into roller sun blind guide rail (8) on both sides of roller sun blind (1) | Otherwise proper function of the roller sun blind (1) is not ensured. |
|
| 9 | Uniformly push roller sun blind (1) toward front until bolts (6) can be screwed in | ||
| 10 | Tighten screw/bolts (6) | ||
| 11 | Install roller sun blind cover (4) | ||
| 12 | install sliding roof seal (2) on flange of panoramic roof guide rail (3) | ||
| 13 | Remove panoramic sliding roof | AR77.21-P-0500NKA |
