Remove/Install Rear Floor Covering - AR68.20-P-4800GQC

MODEL 292

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A

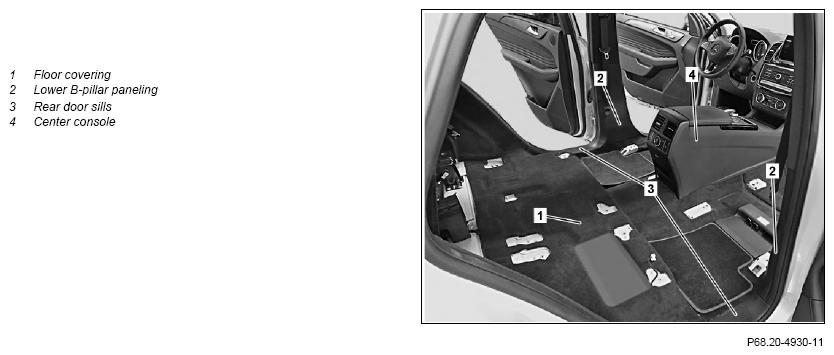

	Remove/install
1	Remove front seats		AR91.10-P-1000GQ
2	Remove rear seat cushion		AR91.12-P-1021GQC
3	Remove folding rear seat backrest		AR91.12-P-1721GQC
4	Remove rear door sills (3)		AR68.30-P-4100GQ
5	Detach electrical line from 115 V socket	Model 292 with code U80 (115 V socket)
6	Remove paneling from B-pillar (2)		AR68.30-P-4700GQ
7	Detach center console (4)	It is not necessary to disconnect the electrical connectors on the center console (4).	AR68.20-P-2000GQ
8	Lift center console (4) and pull floor covering (1) below center console (4) toward rear	Helper required. Ensure that floor covering (1) is routed correctly below center console (4).
9	Remove floor covering (1)	Ensure that floor covering (1) is routed correctly on frame floor. Otherwise air duct segments and electrical lines can be damaged. Helper required.
10	Install in the reverse order
