Remove/Install Rear Elastomer Bearing For Rear Axle Differential Suspension In Rear Axle Carrier - AR35.10-P-0050LW
Model 205 (except 205.386/387/486/487)
Model 253 (except 253.388/389/988/989/992/993)
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. | AS00.00-Z-0017-01A | |
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Notes on threaded connections fastened using a tightening angle-based tightening process | AH00.00-P-0020-01A | ||
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Notes on repair work on suspension components | AH00.00-P-0100-01A | ||
| Remove/install | |||
| 1 | Shift transmission into neutral position | ||
| 2 | Perform disable for the high-voltage on-board electrical system | Model 205.047/147/247 | AR54.10-P-1150LW |
| Model 253.354/954 | AR54.10-P-1150LVH | ||
| 3 | Secure vehicle on the lifting platform | AR00.60-P-0100CW | |
| 4 | Remove rear muffler(s) | Model 205 with engine 654 | AR49.10-P-4952OLI |
| Model 205 (except 205.386/387/486/487) with engine 177 | AR49.10-P-4952MNA | ||
| Model 205 with engine 274.9, 276 | AR49.10-P-4952LW | ||
| Model 205 with engine 651 | AR49.10-P-7100LWB | ||
| Model 253 with engine 274.9, 276.8, 642, 651.9 | AR49.10-P-4952RF | ||
| Model 205 with engine 626 | AR49.10-P-4952ORB | ||
| 5 | Remove rear elastomer bearing from center exhaust system | Model 205 with engine 276.8 except code U21 (AMG Performance exhaust system) |
|
| 6 | Support rear axle differential (50) with major assembly mount and support plate | ||
| 000 588 11 62 00 Major assembly mount | WS01.00-P-0092B | ||
| 000 588 10 62 00 Support plate | WS26.00-P-3309B | ||
| 7 | Remove screw/bolt (1) | *BA35.10-P-1006-01H | |
| 8 | Remove screw/bolt (2) | *BA35.10-P-1005-01H | |
| 9 | Lower rear axle differential (50) until elastomer bearings (10) are accessible | Do not lower the rear axle differential (50) too far. Otherwise the drive shafts will be damaged. |
|
| 10 | Press elastomer bearings (10) of rear axle differential (50) out of rear axle carrier (3) | Model 205 (except 205.386/387/486/487) Model 253 (except 253.388/389/988/989/992/993) |
AR35.10-P-0050-02LW |

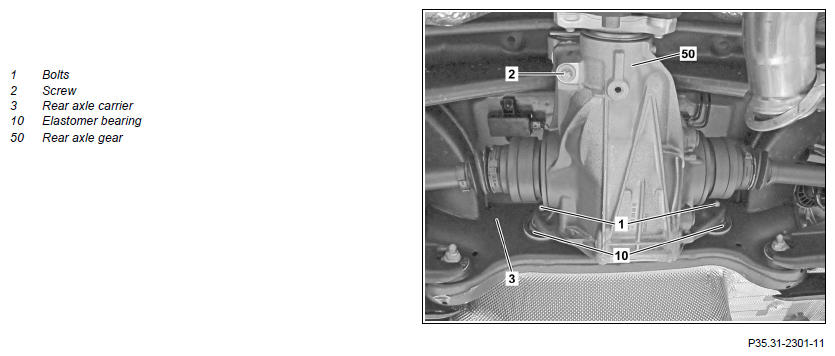

| Fig 5 | |||
| Fig 3 | |||
| Fig 2 | |||
| Fig 4 | |||
| Fig 1 | |||
| 11 | Install in the reverse order |
REAR AXLE CARRIER
| Number | Designation | Model 205 | Model 253 | |||
|---|---|---|---|---|---|---|
| BA35.10-P-1005-01H | Rear axle differential to front adapter | Rear axle differential (steel) | Nm | 65 | 65 | |
| Rear axle differential (aluminum) | Stage 1 | Nm | 40 | 40 | ||
| Stage 2 | ∠° | 45 | 45 | |||
REAR AXLE CARRIER
| Number | Designation | Model 205 | Model 253 | |
|---|---|---|---|---|
| BA35.10-P-1006-01H | Bolt, rear axle differential to rear transverse bridge | Nm | 170 | 170 |
