Fuse And Relay Box, As-Built Configuration - GF54.15-P-0800KN
Model 117, 156, 176, 242, 246
Shown on model 246

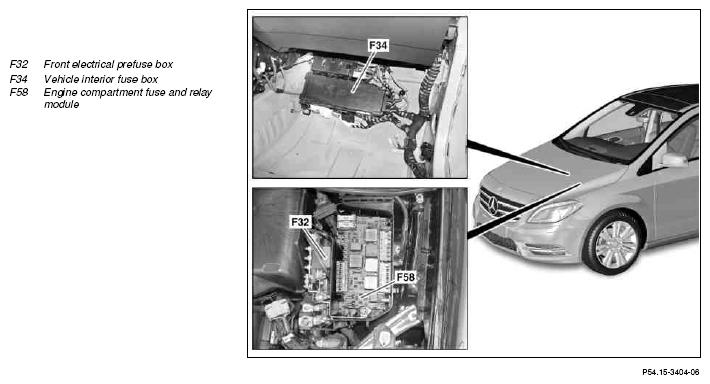

| Fuse assignment of front pre-fuse box | F32 | GF54.15-P-1256-07KN | |
| Fuse assignment of fuse box in interior compartment on passenger's side | F34 | GF54.15-P-1256-11KN | |
| Fuse assignment of fuse and relay box in left engine compartment | F58 | GF54.15-P-1256-03KN | |
| Relay assignment of fuse boxes | F32, F34 and F58 | GF54.15-P-1257-09KN |
