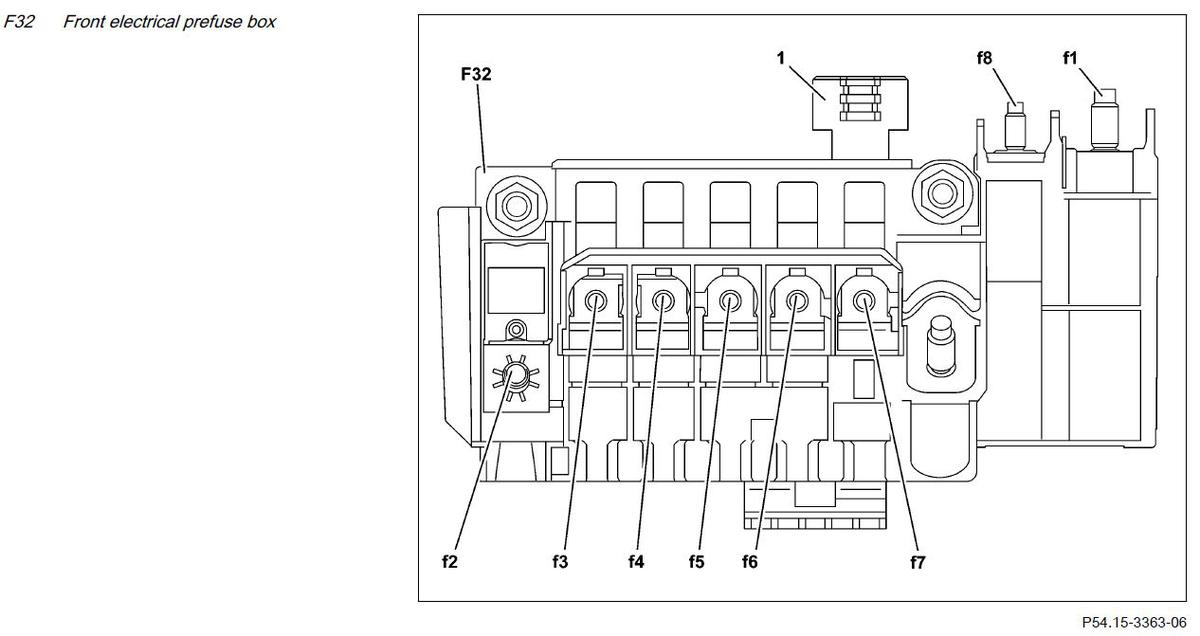

Fuse Assignment Of Front Pre-Fuse Box - GF54.15-P-1256-07KN
Model 117, 156, 176, 242, 246
| Slot | Fuse Identification | Terminal | Wire Identification | Fused | Fuse rating (A) |
|---|---|---|---|---|---|
| f1 | Pre-fuse 1 (F32f1) | 30 | 35.0 BK | Valid except model 242.890: Alternator (G2) |
300 |
| 30 | 50.0 RD | Valid for model 242.890: DC/DC converter control unit (N83/1) |
400 | ||
| f2 | Pre-fuse 2 (F32f2) | 30 | 25.0 RD | Valid for model 242.890 or for gasoline engine: Vehicle interior fuse box (F34) |
200 |
| 30 | 35.0 RD | Valid for diesel engine up to 02.09.2012: Vehicle interior fuse box (F34) |
250 | ||
| 30 | 35.0 BK | Valid for diesel engine as of 03.09.2012: Vehicle interior fuse box (F34) |
250 | ||
| f3 | Pre-fuse 3 (F32f3) | 30 | 12.0 RD | Electrical power steering control unit (N68) | 100 |
| f4 | Pre-fuse 4 (F32f4) | 30 | 6.0 RDYE | SAM control unit (N10) | 40 |
| f5 | Pre-fuse 5 (F32f5) | 30 | 10.0 RD | Fan motor (M4/7) | 80 |
| f6 | Pre-fuse 6 (F32f6) | 30 | 10.0 RDBU | Valid for engine 607: Fuel preheating control unit (N33/6) |
70 |
| f7 | Pre-fuse 7 (F32f7) | 30 | 10.0 RD | Valid for engine 607 with CODE 928 (Emissions standard EU5): DPF regeneration heater booster control unit (N33/2) |
125 |
| f8 | Pre-fuse 8 (F32f8) | 30 | 10.0 BK | Valid for engine 651: Glow output stage (N14/3) |
100 |
| 30 | 10.0 RDBK | Valid for engine 607: Glow output stage (N14/3) |
100 |
