Adjust Camber And Caster At The Front Axle - AR40.20-P-0263XG

Model 463

as of model year 2019

Courtesy of MERCEDES-BENZ USA

Camber

Courtesy of MERCEDES-BENZ USA

Run-on

	Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
	Notes on repair work on suspension components		AH00.00-P-0100-01A
	Adjust
1	Check vehicle level at front axle.		AR40.20-P-0302XG
2	Check caster and assign to tabular value.		AR40.20-P-0203XG

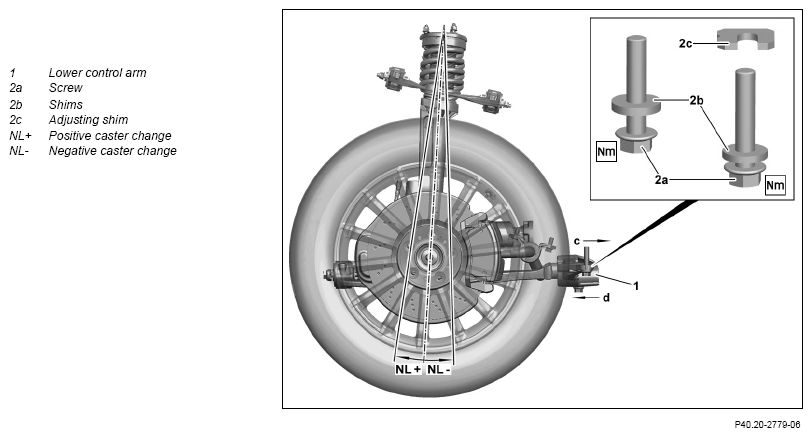

3	Replace bolt (2a), washer (2b), adjusting shim (2c) and nut (2d).	Screw on nut (2d) of bolt (2a) up to contact surface, but do not tighten yet. This relieves the elastomer bearing of the lower control arm (1) when rocking the vehicle to settle the suspension. Use adjusting shims with previously-determined values. A change in the position of the bolt (2a) changes the camber. An adjustment of the front lower control arm towards the vehicle center (arrow a) causes a positive camber change (St+). Adjustment of the front lower transverse control arm towards the outside of the vehicle (arrow b) causes a negative camber change (St-). Using different adjusting shims (2c) can misadjust the caster. Adjustment of the lower transverse control arm towards the rear (arrow c) causes a reduction in caster (NL-). Adjustment of the lower transverse control arm towards the front (arrow d) causes an increase in caster (NL+).	AR40.20-P-0263-01XG
4	Check vehicle level at front axle again after camber and caster adjustment.	The vehicle level must correspond to the quoted specified values.	AR40.20-P-0302XG
5	Tighten nut (2d) of bolt (2a) for the camber.	Tighten nut (2d) of bolt (2a) in a ready-to-drive condition. Otherwise, the elastomer bearing will be damaged. Screw/bolt, lower transverse control arm to frame	*BA33.15-P-1009-01A
6	Tighten bolt (2a) for the caster.	Tighten nut (2d) of bolt (2a) in a ready-to-drive condition. Bolt, bearing bracket for transverse control arm at bottom to frame	*BA33.15-P-1010-01A

TRAILING ARMS, TRANSVERSE CONTROL ARMS

Number	Designation				Model 460, 461 Model 463 up to model year 2019	Model 463 as of model year 2019
BA33.15-P-1009-01A	Screw/bolt, lower transverse control arm to frame	M14	Stage 1	Nm	-	120
			Stage 2	∠°	-	90

TRAILING ARMS, TRANSVERSE CONTROL ARMS

Number	Designation				Model 460, 461 Model 463 up to model year 2019	Model 463 as of model year 2019
BA33.15-P-1010-01A	Bolt, bearing bracket for transverse control arm at bottom to frame	M12	Stage 1	Nm	-	130
			Stage 2	∠°	-	45
