Check Vehicle Level At Front And Rear Axles Using Electronic Inclinometer - AR40.20-P-0302XG
Model 463
as of model year 2019
Shown on lower control arm to left of front axle
Shown on lower trailing arm to left of rear axle
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Check | |||
| 1 | Fulfill preconditions and perform tests for vehicle level measurement. | AR40.00-P-0202XG | |
| 2 | Clean measuring points on lower control arm (1) of front axle. | ||

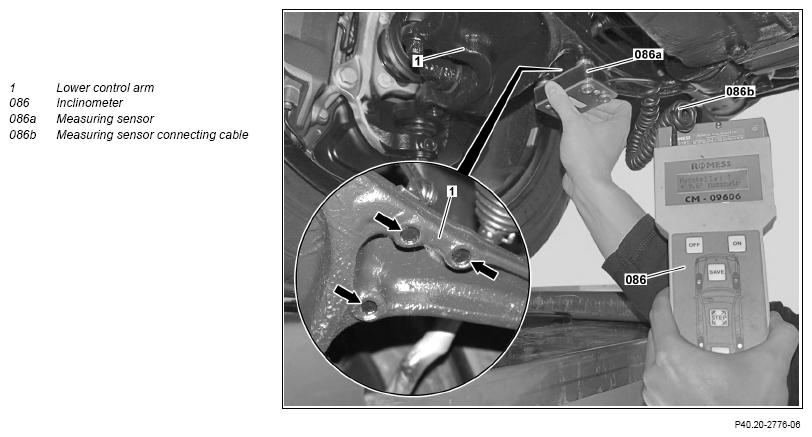

| 3 | Mount measuring sensor (086a) on lower control arm (1) of front axle (arrows), read off vehicle level on inclinometer (086) and save displayed value. | Otherwise the measurement will be inaccurate. |
AR40.20-P-0203XG |
| 4 | Clean measuring areas on lower trailing arm (2) of rear axle. | ||

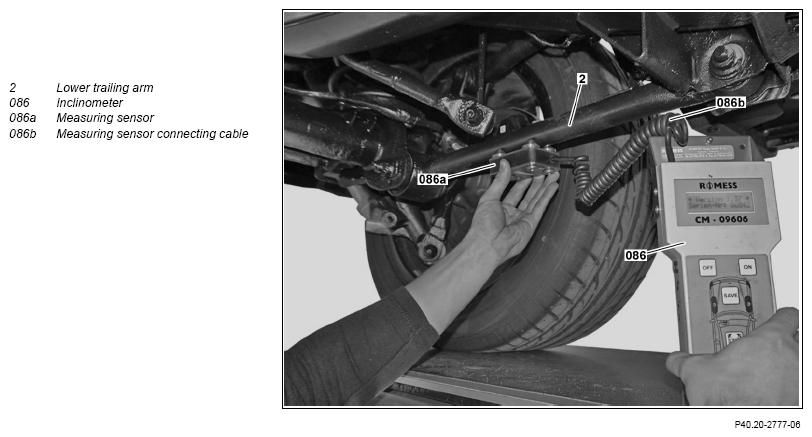

| 5 | Mount measuring sensor (086a) on lower trailing arm (2) of rear axle (arrows), read off vehicle level on inclinometer (086) and save displayed value. | Align the measuring sensor connecting cable (086b) toward the vehicle center. Otherwise the measurement will be inaccurate. |
AR40.20-P-0203XG |
| 6 | Check maximum permissible difference in vehicle level between left and right side of vehicle at front axle. | If vehicle level at front axle is out of tolerance, ↓ check suspension struts of front axle for wear and damage. |
AR40.20-P-0203XG |
| AP32.25-P-3255GA | |||
| 7 | Check maximum permissible difference in vehicle level between left and right side of vehicle at rear axle. | ↓ check springs or shock absorbers at rear axle for wear and damage. |
AR40.20-P-0203XG |
| AP32.25-P-3255GA |
