Remove/Install Rear Wheel Hub - AR35.20-P-0310GWX

Model 463.234

as of model year 2013 up to model year 2019 with code ZQ0 (G 500 4x4 ² )

Model 463.255

up to model year 2019

with code MUK2 (USA or Canada vehicle model designation)

with code ZQ0 (G 500 4x4 ² )

Model 463.274

up to model year 2019

with code LQ0 (G650 Landaulet)

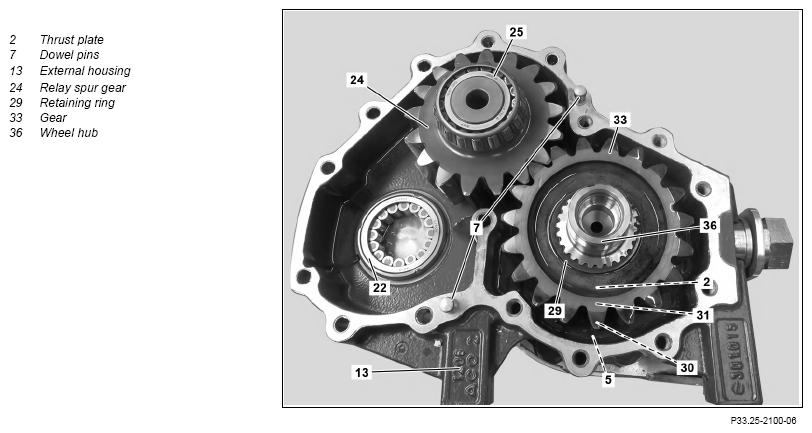

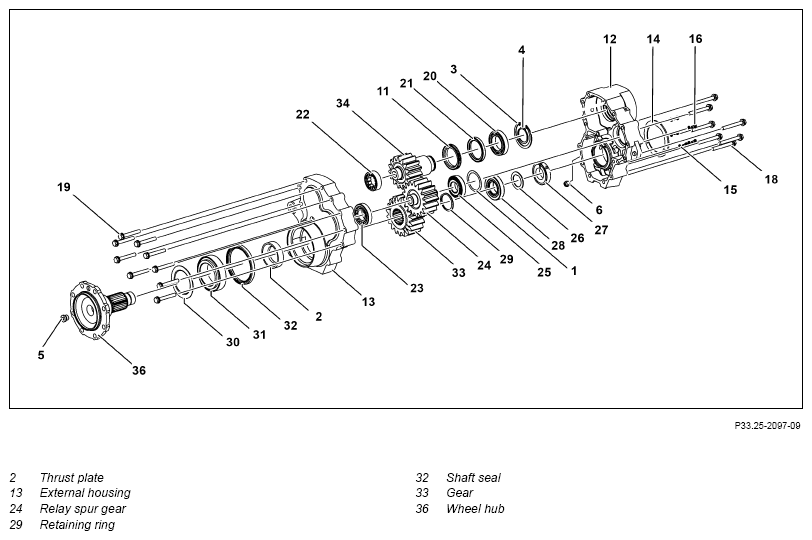

Fig 1: Rear Wheel Hub Components Location - Model 463.255 Up To Model Year 2019 With Codes ZQ0 & MUK2

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Risk of injury. Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating area of mechanical components when moving components.	AS00.00-Z-0009-01A
	Risk of injury caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Notes for repair work on hub reduction gear		AH33.25-P-0650-01GWX
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Notes on repair work on suspension components		AH00.00-P-0100-01A
	Remove
1	Remove left or right hub reduction gear.		AR35.25-P-0645GWX
2	Disconnect housing halves and remove wheel hub (36).		AR35.25-P-0650-01GWX
		Assembly tool	Fig 3
		Removal tool	Fig 2
		Blocking device	Fig 4
3	Remove thrust plate (2) from wheel hub (36).
4	Take wheel hub (36) out of assembly tool.	Assembly tool	Fig 3
5	Remove shaft seal (32) using a suitable tool.	Replace shaft seal (32).
	Clean
6	Clean all removed parts with suitable means.
7	Clean sealing and contact surfaces.		AR01.00-P-0050-01A
	Notes on application of flange sealants to seal major assemblies		AH00.00-P-0500-01MNE
		Loctite 7063 (400 ml) cleaning spray	*BR00.45-Z-1046-04A
		Loctite 7200	*BR00.45-Z-1038-04A
	Check
8	Check oil holes for deposits.	If deposits are present,
		↓
		Clean oil holes.
9	Check all component parts for damage and wear.	Always replace all sealing rings for filler and drain screws. If problems are found,
		↓
		replace affected components.
	Install
10	Coat new shaft seal (32) with multipurpose grease and install flush with housing upper edge of outer housing (13).	MB multipurpose grease, 400 g	*BR00.45-Z-1017-06A
11	Fix wheel hub (36) in assembly tool.	Assembly tool	Fig 3
12	Position thrust plate (2) on wheel hub (36).	Align the chamfer of the thrust plate (2) to the outside.
13	Fix outer housing (13) in place on assembly tool.	Assembly tool	Fig 3

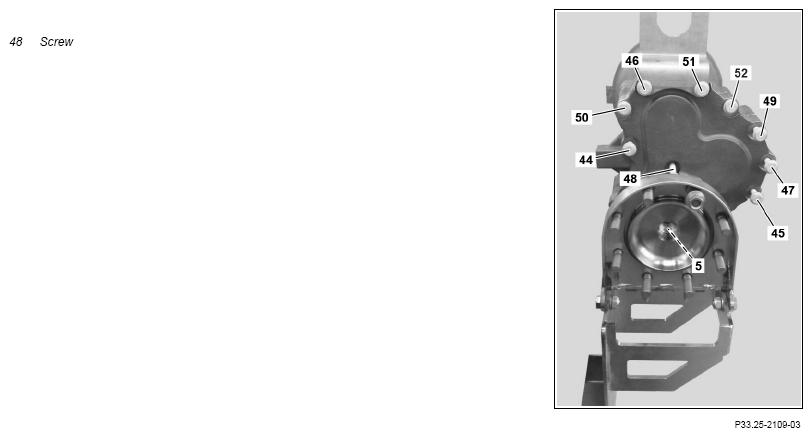

14	Position screw (48) over wheel hub (36) in bore.	It is not possible to position the screw (48) later.
15	Install gearwheel (33) of wheel hub (36).
16	Install retaining ring (29).
17	Lubricate relay spur gear (24) with bearing cage and place into outer housing (13).	The upper edge of the relay spur gear (24) and the upper edge of the gearwheel (33) must sit flush.
		Note direction of installation. Install relay spur gear (24) so that the bearing cage is seated in the associated bearing shell. The short side points downwards.
		LUKOIL TRANSMISSION MN TM-4/5 75W-90	*BR00.45-Z-1132-06A
18	Check seating of dowel pins (7) and adjust if necessary.	The dowel pins (7) must be installed up to the end stop in the external housing (13) in the correct position.
	Risk of injury. Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
19	Assembly of housing halves.	Commercially available tools/devices Soft face hammer Heating oven	AR35.25-P-0650-02GWX
		LUKOIL TRANSMISSION MN TM-4/5 75W-90	*BR00.45-Z-1132-06A
		Hub reduction gear housing screws	*BA35.25-P-1006-02A
		Screw plug, wheel hub	*BA35.25-P-1005-02A
		Screw plug for screw of clamp nut on wheel hub	*BA35.25-P-1004-02A
		Screw, wheel hub cover to hub reduction gear housing	*BA35.25-P-1008-02A
		Bolt to clamping nut	*BA35.25-P-1003-02A
		Clamp nut to wheel hub	*BA35.25-P-1002-02A
		Preload, clamp nut to wheel hub	*BA35.25-P-1001-02A
		Drain screw at portal drive	*BA35.30-P-1007-02A
		Loctite 2701	*BR00.45-Z-1078-02A
		MB multipurpose grease, 400 g	*BR00.45-Z-1017-06A
		Pipe sealant, medium strength	*BR00.45-Z-1128-01A
		Surface sealant, green	*BR00.45-Z-1129-01A
		Loctite 7063 (400 ml) cleaning spray	*BR00.45-Z-1046-04A
		Blocking device	Fig 4
		Insertion tool	Fig 5
20	Install left or right hub reduction gear.		AR35.25-P-0645GWX

REAR AXLE HUB DRIVE

Number	Designation		Model 463.234 up to model year 2019 with code ZQ0 (G 500 4x4² ) Model 463.255 up to model year 2019 with code MUK2 (USA or Canada vehicle model designation) with code ZQ0 (G500 4x4² ) Model 463.274 up to model year 2019 with code LQ0 (G650 Landaulet)
BA35.25-P-1001-02A	Preload, clamp nut to wheel hub	Nm	200

REAR AXLE HUB DRIVE

Number	Designation		Model 463.234 up to model year 2019 with code ZQ0 (G 500 4x4² ) Model 463.255 up to model year 2019 with code MUK2 (USA or Canada vehicle model designation) with code ZQ0 (G 500 4x4² ) Model 463.274 up to model year 2019 with code LQ0 (G650 Landaulet)
BA35.25-P-1002-02A	Clamp nut to wheel hub	Nm	80

REAR AXLE HUB DRIVE

Number	Designation		Model 463.234 up to model year 2019 with code ZQ0 (G 500 4x4² ) Model 463.255 up to model year 2019 with code MUK2 (USA or Canada vehicle model designation) with code ZQ0 (G 500 4x4² ) Model 463.274 up to model year 2019 with code LQ0 (G650 Landaulet)
BA35.25-P-1003-02A	Bolt to clamping nut	Nm	40

REAR AXLE HUB DRIVE

Number	Designation		Model 463.234 up to model year 2019 with code ZQ0 (G 500 4x4² ) Model 463.255 up to model year 2019 with code MUK2 (USA or Canada vehicle model designation) with code ZQ0 (G 500 4x4² ) Model 463.274 up to model year 2019 with code LQ0 (G650 Landaulet)
BA35.25-P-1004-02A	Screw plug for screw of clamp nut on wheel hub	Nm	25

REAR AXLE HUB DRIVE

Number	Designation		Model 463.234 up to model year 2019 with code ZQ0 (G 500 4x4² ) Model 463.255 up to model year 2019 with code MUK2 (USA or Canada vehicle model designation) with code ZQ0 (G 500 4x4² ) Model 463.274 up to model year 2019 with code LQ0 (G650 Landaulet)
BA35.25-P-1005-02A	Screw plug, wheel hub	Nm	40

REAR AXLE HUB DRIVE

Number	Designation		Model 463.234 up to model year 2019 with code ZQ0 (G 500 4x4² ) Model 463.255 up to model year 2019 with code MUK2 (USA or Canada vehicle model designation) with code ZQ0 (G 500 4x4² ) Model 463.274 up to model year 2019 with code LQ0 (G650 Landaulet)
BA35.25-P-1006-02A	Hub reduction gear housing screws	Nm	75

REAR AXLE HUB DRIVE

Number	Designation		Model 463.234 up to model year 2019 with code ZQ0 (G 500 4x4² ) Model 463.255 up to model year 2019 with code MUK2 (USA or Canada vehicle model designation) with code ZQ0 (G 500 4x4² ) Model 463.274 up to model year 2019 with code LQ0 (G650 Landaulet)
BA35.25-P-1008-02A	Screw, wheel hub cover to hub reduction gear housing	Nm	10

REAR AXLE DRIVE

Number	Designation		Model 463 up to model year 2019
BA35.30-P-1007-02A	Drain screw at portal drive	Nm	120

Fig 2: Identifying Removal Tool (463 589 01 33 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Assembly Tool (463 589 00 16 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Blocking Device (463 589 00 40 00)

Courtesy of MERCEDES-BENZ USA

Fig 5: Identifying Insertion Tool (463 589 01 43 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1017-06A	MB multipurpose grease, 400 g	A 001 989 34 51 11
BR00.45-Z-1038-04A	Loctite 7200	Henkel AG & Co. KGaA
BR00.45-Z-1046-04A	Loctite 7063 (400 ml) cleaning spray	A 001 986 71 71 09
BR00.45-Z-1078-02A	Loctite 2701	Henkel AG & Co. KGaA
BR00.45-Z-1128-01A	Pipe sealant, medium strength	Adolf Wurth GmbH & Co. KG
BR00.45-Z-1129-01A	Surface sealant, green	Adolf Wurth GmbH & Co. KG
BR00.45-Z-1132-06A	LUKOIL TRANSMISSION MN TM-4/5 75W-90	OOO LLK-International, Moscow, Russia
