Remove/Install Rear Axle Drive Shaft - AR35.30-P-0100GWX

Model 463.234

up to model year 2019 with code ZQ0 (G 500 4x4 2  )

Model 463.255

up to model year 2019

with code MUK2 (USA or Canada vehicle model designation)

with code ZQ0 (G 500 4x4 2  )

Model 463.274

up to model year 2019

with code LQ0 (G650 Landaulet)

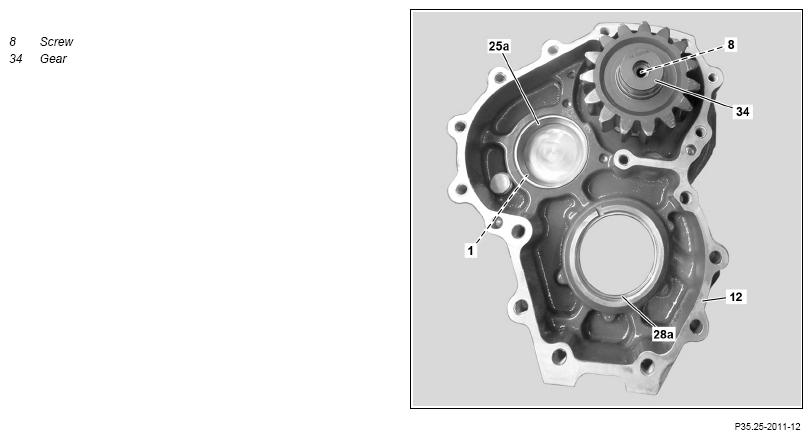

Fig 1: Rear Axle Drive Shaft Components Location - Model 463.255 Up To Model Year 2019 With Codes ZQ0 & MUK2
G13668136WARNINGCAUTIONREMOVINGSPECIAL TOOLSPECIAL TOOLSPECIAL TOOLSPECIAL TOOLCLEANINGINSPECTIMPORTANTINSTALLINGIMPORTANTSPECIAL TOOLTORQUE SPECIFICATIONWARNINGIMPORTANTTORQUE SPECIFICATIONTORQUE SPECIFICATIONTORQUE SPECIFICATIONTORQUE SPECIFICATIONTORQUE SPECIFICATIONTORQUE SPECIFICATIONTORQUE SPECIFICATIONTORQUE SPECIFICATIONSPECIAL TOOLSPECIAL TOOLCourtesy of MERCEDES-BENZ USA
WARNING Risk of injury.  Moving parts can pinch, crush or, in extreme cases even sever extremities. No parts of the body or limbs should be within the operating area of mechanical components when moving components. AS00.00-Z-0009-01A
CAUTION Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts.
Deburr repair panels.		 AS00.00-Z-0017-01A
  Notes for repair work on hub reduction gear Model 463.234 up to model year 2019 with code ZQ0 (G 500 4x42 ) AH33.25-P-0650-01GWX
  Notes on self-locking nuts and bolts   AH00.00-N-0001-01A
  Notes on repair work on suspension components   AH00.00-P-0100-01A
REMOVING Remove
1 Remove rear axle hub reduction gear.   AR35.25-P-0645GWX
2 Disconnect housing halves. Model 463.234 up to model year 2019 with code ZQ0 (G 500 4x42 ) AR35.25-P-0650-01GWX
    SPECIAL TOOL Assembly tool Fig 4
    SPECIAL TOOL Removal tool Fig 2
    SPECIAL TOOL Blocking device Fig 5
3 Secure gearwheel (34) of drive shaft to prevent it from turning. SPECIAL TOOL Blocking device Fig 3
4 Remove screw (8) and remove drive shaft.
CLEANING Clean
5 Clean all removed parts with suitable means.
6 Clean sealing and contact surfaces.   AR01.00-P-0050-01A
  Notes on application of flange sealants to seal major assemblies   AH00.00-P-0500-01MNE
    Loctite 7063 (400 ml) cleaning spray *BR00.45-Z-1046-04A
    Loctite 7200 *BR00.45-Z-1038-04A
INSPECT Check
7 Check oil holes for deposits. If deposits are present,
    ↓
    Clean oil holes.
8 Check all component parts for damage and wear. IMPORTANT Always replace all sealing rings for filler
    and drain screws.
If problems are found,
    ↓
    replace affected components.
INSTALLING Install  ↓
9 Coat teeth of drive shaft with multipurpose grease and insert drive shaft from outside to inside into gearwheel (34). IMPORTANT The drive shafts are different lengths on the left and right sides.
MB multipurpose grease, 400 g		 *BR00.45-Z-1017-06A
10 Secure gearwheel (34) of drive shaft to prevent it from turning. SPECIAL TOOL Blocking device Fig 3
11 Fasten screw (8) with thread lock. TORQUE SPECIFICATION Screw, gearwheel to drive shaft *BA35.25-P-1007-02A
    Loctite 243 *BR00.45-Z-1066-01A
WARNING Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects. Wear protective gloves, protective clothing and safety glasses, if necessary. AS00.00-Z-0002-01A
12 Assembly of housing halves Model 463.234 up to model year 2019 with code ZQ0 (G 500 4X42 ) AR35.25-P-0650-02GWX
    IMPORTANTCommercially available tools/devices
Soft face hammer
Heating oven
    TORQUE SPECIFICATION Hub reduction gear housing screws *BA35.25-P-1006-02A
    TORQUE SPECIFICATION Screw plug, wheel hub *BA35.25-P-1005-02A
    TORQUE SPECIFICATION Screw plug for screw of clamp nut on wheel hub *BA35.25-P-1004-02A
    TORQUE SPECIFICATION Screw, wheel hub cover to hub reduction gear housing *BA35.25-P-1008-02A
    TORQUE SPECIFICATION Bolt to clamping nut *BA35.25-P-1003-02A
    TORQUE SPECIFICATION Clamp nut to wheel hub *BA35.25-P-1002-02A
    TORQUE SPECIFICATION Preload, clamp nut to wheel hub *BA35.25-P-1001-02A
    TORQUE SPECIFICATION Drain screw at portal drive *BA35.30-P-1007-02A
    Loctite 2701 *BR00.45-Z-1078-02A
    LUKOIL TRANSMISSION MN TM-4/5 75W-90 *BR00.45-Z-1132-06A
    MB multipurpose grease, 400 g *BR00.45-Z-1017-06A
    Pipe sealant, medium strength *BR00.45-Z-1128-01A
    Surface sealant, green *BR00.45-Z-1129-01A
    Loctite 7063 (400 ml) cleaning spray *BR00.45-Z-1046-04A
    SPECIAL TOOL Blocking device Fig 5
    SPECIAL TOOL Insertion tool Fig 6
13 Install rear axle hub reduction gear.   AR35.25-P-0645GWX
REAR AXLE HUB DRIVE

Number Designation Model 463.234 up to model year 2019 with code ZQ0 (G 500 4x42 ) Model 463.255 up to model year 2019 with code MUK2 (USA or Canada vehicle model designation) with code ZQ0 (G 500 4x42 ) Model 463.274 up to model year 2019 with code LQ0 (G650 Landaulet)
BA35.25-P-1001-02A Preload, clamp nut to wheel hub Nm 200
REAR AXLE HUB DRIVE

Number Designation Model 463.234 up to model year 2019 with code ZQ0 (G 500 4x42 ) Model 463.255 up to model year 2019 with code MUK2 (USA or Canada vehicle model designation) with code ZQ0 (G 500 4x42 ) Model 463.274 up to model year 2019 with code LQ0 (G650 Landaulet)
BA35.25-P-1002-02A Clamp nut to wheel hub Nm 80
REAR AXLE HUB DRIVE

Number Designation Model 463.234 up to model year 2019 with code ZQ0 (G 500 4x42 ) Model 463.255 up to model year 2019 with code MUK2 (USA or Canada vehicle model designation) with code ZQ0 (G 500 4x42 ) Model 463.274 up to model year 2019 with code LQ0 (G650 Landaulet)
BA35.25-P-1003-02A Bolt to clamping nut Nm 40
REAR AXLE HUB DRIVE

Number Designation Model 463.234 up to model year 2019 with code ZQ0 (G 500 4x42 ) Model 463.255 up to model year 2019 with code MUK2 (USA or Canada vehicle model designation) with code ZQ0 (G 500 4x42 ) Model 463.274 up to model year 2019 with code LQ0 (G650 Landaulet)
BA35.25-P-1004-02A Screw plug for screw of clamp nut on wheel hub Nm 25
REAR AXLE HUB DRIVE

Number Designation Model 463.234 up to model year 2019 with code ZQ0 (G 500 4x42 ) Model 463.255 up to model year 2019 with code MUK2 (USA or Canada vehicle model designation) with code ZQ0 (G 500 4x42 ) Model 463.274 up to model year 2019 with code LQ0 (G650 Landaulet)
BA35.25-P-1005-02A Screw plug, wheel hub Nm 40
REAR AXLE HUB DRIVE

Number Designation Model 463.234 up to model year 2019 with code ZQ0 (G 500 4x42 ) Model 463.255 up to model year 2019 with code MUK2 (USA or Canada vehicle model designation) with code ZQ0 (G 500 4x42 ) Model 463.274 up to model year 2019 with code LQ0 (G650 Landaulet)
BA35.25-P-1006-02A Hub reduction gear housing screws Nm 75
REAR AXLE HUB DRIVE

Number Designation Model 463.234 up to model year 2019 with code ZQ0 (G 500 4x42 ) Model 463.255 up to model year 2019 with code MUK2 (USA or Canada vehicle model designation) with code ZQ0 (G 500 4x42 ) Model 463.274 up to model year 2019 with code LQ0 (G650 Landaulet)
BA35.25-P-1007-02A Screw, gearwheel to drive shaft Nm 25
REAR AXLE HUB DRIVE

Number Designation Model 463.234 up to model year 2019 with code ZQ0 (G 500 4x42 ) Model 463.255 up to model year 2019 with code MUK2 (USA or Canada vehicle model designation) with code ZQ0 (G 500 4x42 ) Model 463.274 up to model year 2019 with code LQ0 (G650 Landaulet)
BA35.25-P-1008-02A Screw, wheel hub cover to hub reduction gear housing Nm 10
REAR AXLE DRIVE

Number Designation Model 463 up to model year 2019
BA35.30-P-1007-02A Drain screw at portal drive Nm 120
Fig 2: Identifying Removal Tool (463 589 01 33 00)
G13668137Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Blocking Device (463 589 01 40 00)
G13668138Courtesy of MERCEDES-BENZ USA
Fig 4: Identifying Assembly Tool (463 589 00 16 00)
G13668139Courtesy of MERCEDES-BENZ USA
Fig 5: Identifying Blocking Device (463 589 00 40 00)
G13668140Courtesy of MERCEDES-BENZ USA
Fig 6: Identifying Insertion Tool (463 589 01 43 00)
G13668141Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1017-06A MB multipurpose grease, 400 g A 001 989 34 51 11
BR00.45-Z-1038-04A Loctite 7200 Henkel AG & Co. KGaA
BR00.45-Z-1046-04A Loctite 7063 (400 ml) cleaning spray A 001 986 71 71 09
BR00.45-Z-1066-01A Loctite 243 A 613 989 09 71 09
BR00.45-Z-1078-02A Loctite 2701 Henkel AG & Co. KGaA
BR00.45-Z-1128-01A Pipe sealant, medium strength Adolf Wurth GmbH & Co. KG
BR00.45-Z-1129-01A Surface sealant, green Adolf Wurth GmbH & Co. KG
BR00.45-Z-1132-06A LUKOIL TRANSMISSION MN TM-4/5 75W-90 OOO LLK-International, Moscow, Russia
