(Cut Switch Openings In Cover - AR68.20-P-2030A)

MODEL 140, 170, 202, 208, 210

MODEL 463 up to model year 2013

/model refinement package 2012

G13659619Courtesy of MERCEDES-BENZ USA
G13659620Courtesy of MERCEDES-BENZ USA
REMOVING Remove
1 Remove cover to be processed
  Edit
2 Mask painted surface on cover NOTES In area of desired switch opening over large surface with paper adhesive tape
3 Coarsely mark position of cut

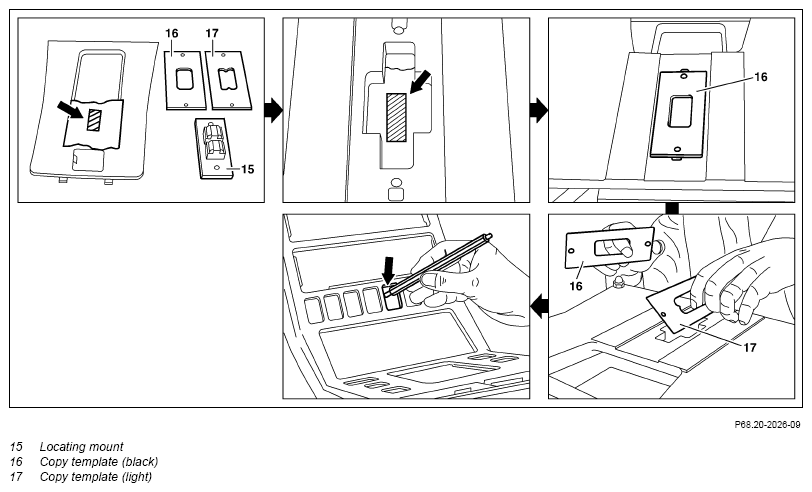

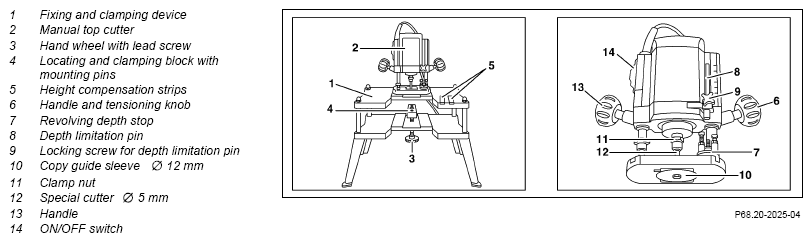

4 Position locating mount (15) and template (16 17) according to type of cover and desired switch opening Universal copy cutter with top cutter (3 single-lip cutters Ø 5x 60mm, 2 single-lip cutters Ø 5x 90mm, templates, locating mounts for model 170, 202, 208, 210, 463).
IMPORTANT If the templates and locating mounts are not included in the universal copy cutter with top cuter, use supplementary set.
Fixing mount supplementary set (model 170) Template and spacer supplementary set (model 208)
Model 140 top and bottom cover
AR68.20-P-2030-02S
    Model 170 top cover AR68.20-P-2030-02G
    Model 202 to 31.08.95 top cover AR68.20-P-2030-02E
    Model 202 to 31.08.95 top cover AR68.20-P-2030-02EB
    Model 202 as of 01.09.95 bottom cover
With plastic and veneered die cast covers
AR68.20-P-2030-02EC
    Model 208 cover AR68.20-P-2030-02K
    Model 202 as of 01.09.95 top cover
Model 210 top cover
AR68.20-P-2030-02ED
    Model 210 bottom cover AR68.20-P-2030-02FB
    Model 463 top cover AR68.20-P-2030-02H
    Model 463 to 30.04.91 bottom cover AR68.20-P-2030-02I
    Model 463 as of 01.05.91 bottom cover AR68.20-P-2030-02J
5 Insert fastening mount (15) from bottom into cover IMPORTANT Observe vehicle model and installation location of cover.
6 Insert fastening mount (15) with cover in pins on locating and clamping block IMPORTANT Position of desired switch cutout must be visible from top through locating and clamping device.
7 Tension cover against upper plate with locating and clamping device (1) NOTES Do not tighten hand wheel (3) too tight to prevent cover from being tensioned.
8.1 Insert black template (16) into dowel pins on locating and clamping device (1) IMPORTANT Model 140, 463 up to 31.07.89 with old switch generation
9.1 Cut switch opening with hand top cutter (2) IMPORTANT Model 140, 463 up to 31.07.89 with old switch generation AR68.20-P-2030-01A
10.1 Remove black template (16) IMPORTANT Model 140, 463 up to 31.07.89 with old switch generation
11 Insert bright template (17) into dowel pins on locating and clamping device (1)
12 Cut switch opening with hand top cutter (2) and revolving depth stop   AR68.20-P-2030-01B
13 Remove cover and pull of paper adhesive strip
14 Blacken visible cutting surfaces on cover with black felt pen
INSTALLING Install
15 Install cover
