Wiper system (WSA), function - GF82.30-P-0003CA
MODEL 207.3/4

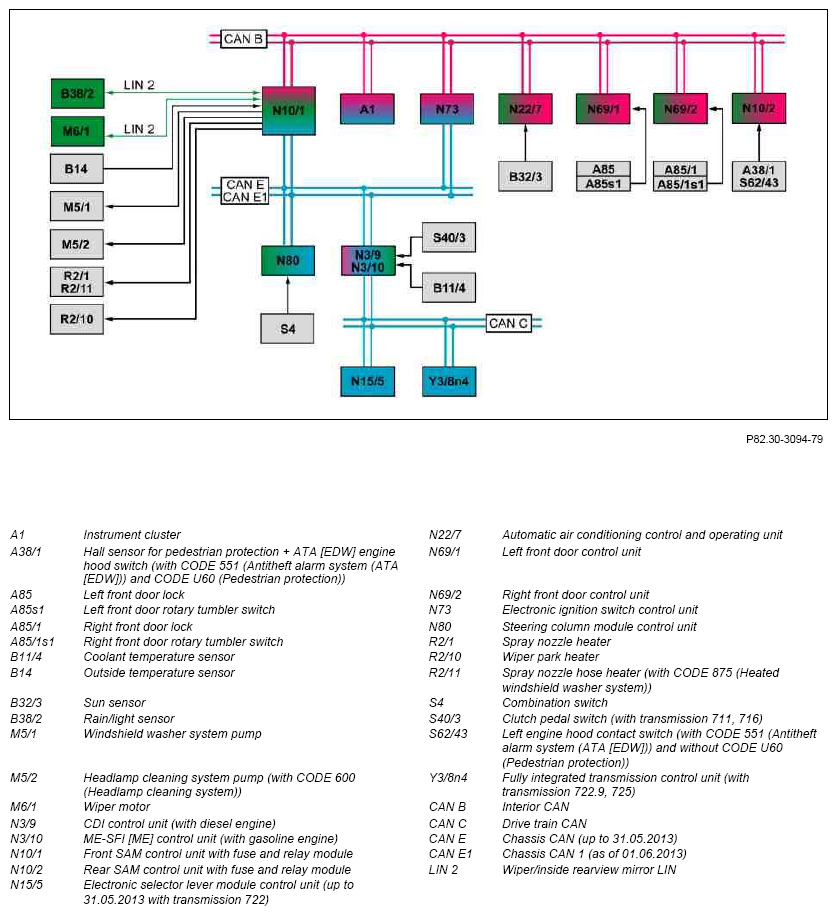

Windshield wiper system, general
The windshield wiper system regulates the wiping and washing of the windshield and the cleaning of the headlamps (with CODE 600 (Headlamp cleaning system)).
The windshield wiper system function consists of the following subfunctions, which are described in separate information:
- Windshield wiper, function
- Windshield washer, function
- Heating wiper support, function
- Spray nozzle hose heater, function
- Headlamp cleaning system, function (with CODE 600 (Headlamp cleaning system))
| Windshield wiper, function | GF82.30-P-3004CA | ||
| Windshield washer, function | GF82.35-P-3002CA | ||
| Heating wiper support, function | GF82.30-P-2003CA | ||
| Washer nozzle/washer nozzle hose heater, function | GF82.35-P-3003CA | ||
| Headlamp cleaning system, function | MODEL 207.3/4 with CODE 600 (Headlamp cleaning system) |
GF82.15-P-3000CA |
