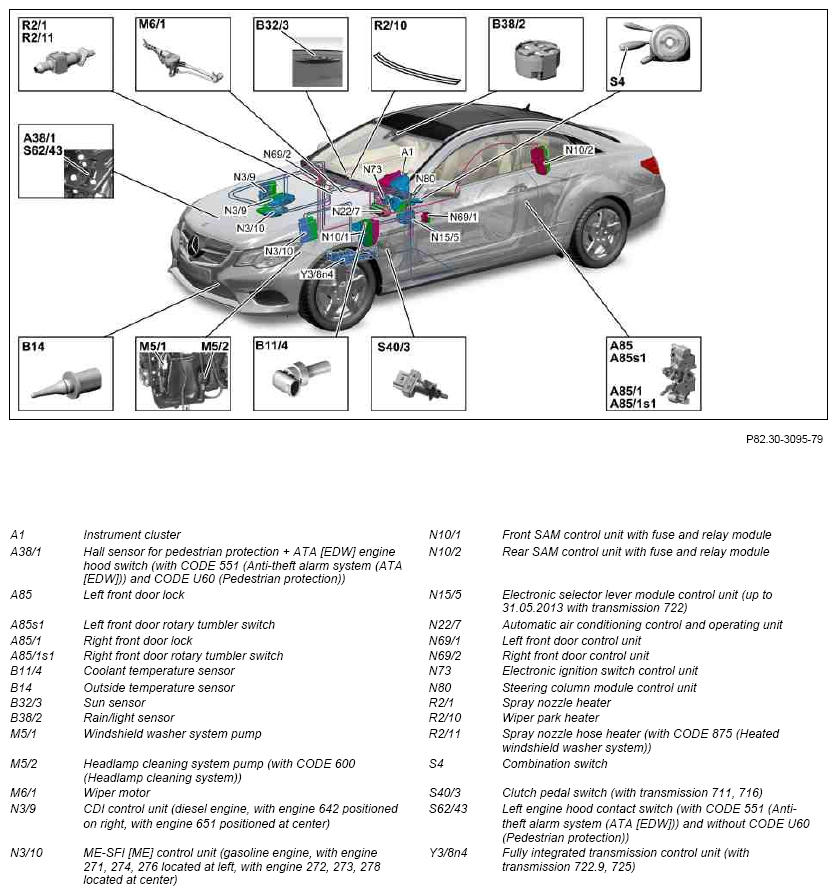

Overview of system components, wiper system (WSA) - GF82.30-P-9997CA
MODEL 207.3/4
| Component description for instrument cluster | A1 | GF54.30-P-6000CA | |
| Component description for CDI control unit | MODEL 207.3/4 with ENGINE 642.8 N3/9 | GF07.16-P-6000OG | |
| MODEL 207.3/4 with ENGINE 651.9 N3/9 | GF07.16-P-6000OM | ||
| Component description for ME-SFI (ME) control unit | MODEL 207.3/4 with ENGINE 271.8 N3/10 | GF07.61-P-6000MG | |
| MODEL 207.3/4 with ENGINE 272.9 (except 272.984) N3/10 | GF07.61-P-6000MI | ||
| MODEL 207.3/4 with ENGINE 272.984 N3/10 | GF07.61-P-6000MIE | ||
| MODEL 207.3/4 with ENGINE 273.9 N3/10 | GF07.61-P-6000ML | ||
| MODEL 207.3/4 with ENGINE 274.9 N3/10 | GF07.61-P-6000MRB | ||
| MODEL 207.3/4 with ENGINE 276.8 as of model year 2014 N3/10 | GF07.61-P-6000MMP | ||
| MODEL 207.3/4 with ENGINE 276.9 N3/10 | GF07.61-P-6000MM | ||
| MODEL 207.3/4 with ENGINE 278.9 N3/10 | GF07.61-P-6000MMA | ||
| Component description for front SAM control unit with fuse and relay module | N10/1 | GF54.21-P-6070CA | |
| Component description for rear SAM control unit with fuse and relay module | N10/2 | GF54.21-P-6030CA | |
| Component description for electronic selector lever module control unit | MODEL 207.3/4 with TRANSMISSION 722.6 up to model year 2012 N15/5 | GF27.60-P-5163ACL | |
| MODEL 207.3/4 with TRANSMISSION 722.9 up to model year 2014 N15/5 | GF27.60-P-5163AHC | ||
| Component description for automatic air conditioning control and operating unit | MODEL 207.3/4 without CODE 581 (Comfort automatic air conditioning) N22/7 |
GF83.40-P-3000CAA | |
| MODEL 207.3/4 with CODE 581 (Comfort automatic air conditioning) N22/7 |
GF83.40-P-3000CAB | ||
| Component description for left front door control unit | N69/1 | GF72.29-P-6001CA | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009CA | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001CA | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051CA | |
| Component description for fully integrated transmission control unit | MODEL 207.3/4 with TRANSMISSION 722.9 Y38n4 | GF27.60-P-5165AHC | |
| MODEL 207.3/4 with TRANSMISSION 725.0 Y38n4 | GF27.60-P-5165ANC | ||
| Contents, function description of wiper system (WSA) | GF82.30-P-0998CA |
