Navigation mode, function - GF82.85-P-2012FQA

Model 218 up to model year 2015 with code 512 (COMAND APS with DVD changer) except code 511 (Audio 50 APS with DVD changer) except code 525 (MB Audio 50 APS radio)

Model 218 up to model year 2015 with code 527 (COMAND APS with single DVD drive (with navigation)) except code 511 (Audio 50 APS with DVD changer) except code 525 (MB Audio 50 APS radio)

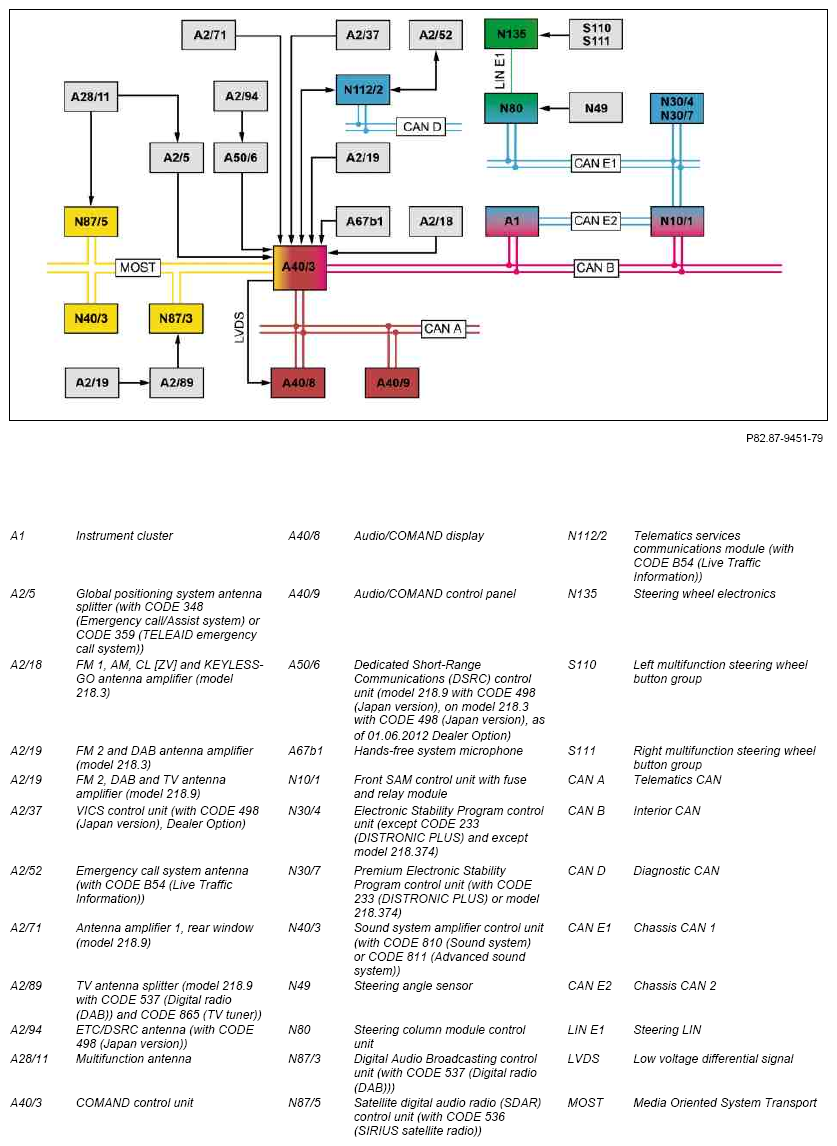

Fig 1: Navigation Mode Block Diagram - Shown On Model 218
G10083331Courtesy of MERCEDES-BENZ USA

Shown on model 218 as of 01.03.2013

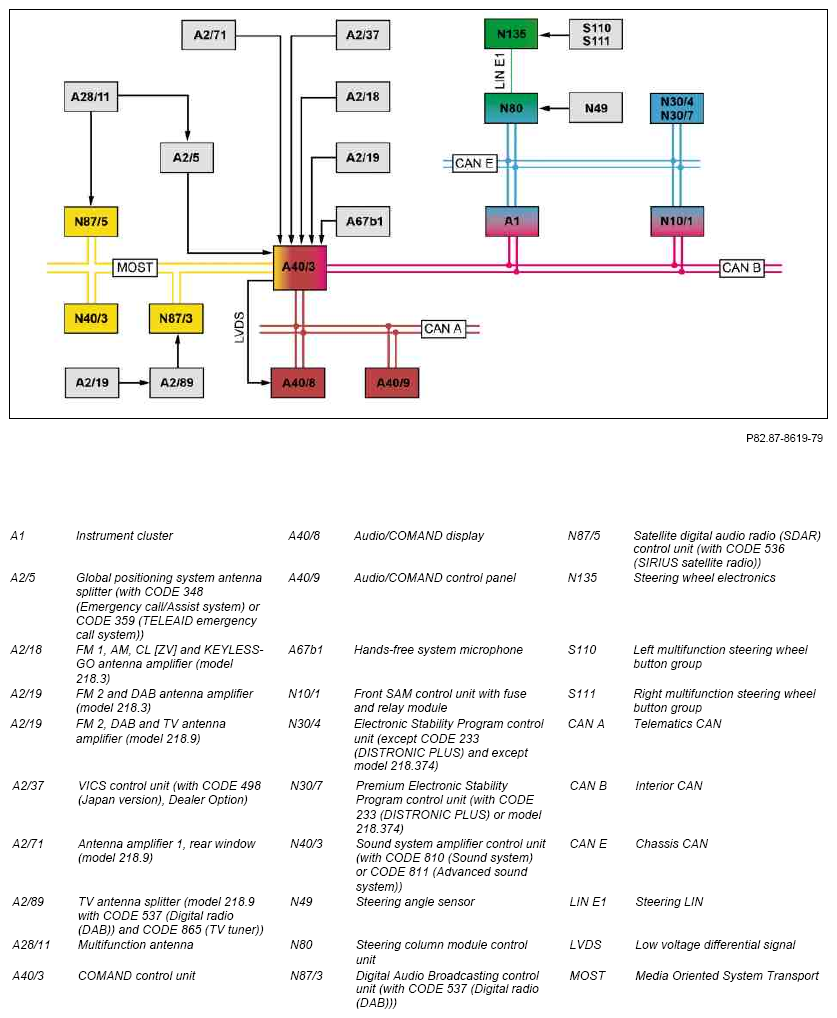

Fig 2: Navigation Mode Block Diagram - Shown On Model 218
G10083332Courtesy of MERCEDES-BENZ USA

Shown on model 218 up to 28.02.2013

Function requirements for navigation mode in general

General navigation mode

The navigation module is integrated in the COMAND controller unit.

The navigation system includes the following functionalities:

The location and direction of movement of the vehicle are continuously determined with the aid of the navigation system.

After entering or calling up a destination location, route calculation starts. Various options can be selected for calculating the route, depending on the model year and the national version, such as:

If observance of the options is not possible, then the options set are ignored for the sections in question and a message is displayed and signaled audibly. The set options can be displayed and changed at any time.

Once calculated, the route is displayed using pictograms on the Audio/COMAND display and this information is also issued as an acoustic notification: "The route is being calculated".

If the vehicle deviates from the route, the new route is re-calculated. If the recalculated values are plausible for the navigation system, then the modified route is displayed.

IMPORTANT Dynamic route guidance (with "Dynamic route" or "Eco route"): Dynamic route guidance provides an alternative route if the calculated route has a sufficiently long traffic jam or a road closure on it.

The navigation system is equipped with lists and map data on points of interest (e.g. restaurant, gas station, parking spot), that can be selected as a destination or a stopover.

IMPORTANT Routes (except CODE 498 (Japan version)) or destinations can be transmitted to the vehicle by email via the Internet using the Mercedes-Benz gateway application and taken over into the navigation system.

IMPORTANT In vehicles with CODE 348 (Emergency call/Assist system) or CODE 359 (TELEAID emergency call system), destination entries or points of interest can be supplied to the COMAND controller unit navigation module from the Service Center.

The navigation system can be operated with the following components:

As of 01.03.2013 the COMAND controller unit receives the control signals from the left and right multifunction steering wheel button groups via the following route:

Up to 28.02.2013 the COMAND controller unit receives the control signals from the left and right multifunction steering group button groups via the following route:

When entered using the Audio/COMAND control panel, the control signals are sent via the telematics CAN to the COMAND controller unit.

When entries are made via the control panels on the COMAND controller unit, the control signals are processed within the unit.

When operating with the voice control system, voice input takes place using the hands-free system microphone. Words spoken into the hands-free system microphone are converted into an electrical signal and transferred via a direct line to the COMAND controller unit.

IMPORTANT For the voice control system of the navigation, in particular for destination entry, additional name lists are available in the system. There are also additional name lists, e.g. for the following information:

The navigation function consists of the following subfunctions:

General Global Positioning System (GPS) position finding

The GPS is a satellite-based positioning system. It is available worldwide. GPS position finding is irretrievable after vehicle transport (e.g. by train or ferry or after towing). Recalculating the GPS position (after satellite reception has been interrupted) can take several minutes (up to 5 minutes during initial commissioning). The accuracy of the position finding and the actual calculation is essentially based on the measurement of the runtimes of the signals transmitted synchronously by the various satellites. A vital precondition is the synchronicity of the clocks in the satellites and in the receiver. To ensure synchronicity, the receiver is equipped with an automatic time correction that is possible thanks to the satellite signals.

Additional function requirement for GPS position finding

GPS position finding function sequence

The GPS signals are received by the GPS receiver integrated in the COMAND controller unit directly from the multifunction antenna or, in vehicles with CODE 348 (Emergency call/Assist system) or CODE 359 (TELEAID emergency call system), by the multifunction antenna via the global positioning system antenna splitter. The GPS signals are used by the COMAND controller unit to calculate the current vehicle position (receiver). The vehicle's direction of travel is also determined using the sequence of GPS calculated locations.

IMPORTANT Since GPS operates in the gigahertz range and the signals are weak, reception interference can occur as a result of the following events:

General information on basic position finding

Navigation can be continued without a GPS signal using basic position finding. A possible defect, (e.g. in the multifunction antenna) is not immediately noticeable.

Basic position finding runs parallel to GPS position finding. For basic position finding the COMAND controller unit requires the following information:

Basic position finding function sequence

For basic position finding, the COMAND controller unit requires signals from the following components:

The signals of the steering angle sensor can also flow into the position finding.

The data from the gyro sensor integrated in the COMAND controller unit is forwarded within the COMAND controller unit.

The COMAND controller unit receives the wheel speed signals from the Electronic Stability Program control unit (except CODE 233 (DISTRONIC PLUS), except model 218.374) or the Premium Electronic Stability Program control unit (with CODE 233 (DISTRONIC PLUS) or model 218.374) via the following route:

The COMAND controller unit receives the steering wheel angle signal from the steering angle sensor via the following route:

The current vehicle position is calculated from the signals that are received (longitude and latitude).

The basic position finding calculation is performed approx. once per second.

IMPORTANT Location errors in position finding, rolling backwards with "circuit 15 OFF" (ignition switched off) or transport of the vehicle falsify the basic position finding.

In both instances the deviation is automatically corrected by the COMAND controller unit's integrated navigation processor upon reception of GPS data.

Calibration

The calibration following a tire replacement is performed automatically.

Recalibration

Because of the tire abrasion, a constant recalibration of the tire circumference is required.

This recalibration is carried out automatically, and uses the difference between the calculated and actually traveled distance between two turning points that has been determined using map-based position finding.

General information on route calculation

Route calculation is accomplished using the options set to the best possible extent. If observance of the options is not possible, then the options set are ignored for the sections in question and a message is displayed and signaled audibly.

The set criteria and options can be displayed and changed at any time.

After a successful calculation, the route is displayed on the map and this information is then relayed acoustically - "Route is being calculated".

Destination-oriented navigation function sequence

The integrated navigation processor continuously compares the route calculation data with the position finding data and uses the data to deduce measures for further destination-oriented navigation.

The route guidance is carried out by outputting visual and acoustic information and is divided up into the following areas:

Map route guidance

Signals for visual depiction of the route guidance (map navigation) are generated by the COMAND controller unit and sent to the audio/COMAND display via an LVDS line.

The Audio/COMAND display is switched on via the telematics CAN by the COMAND controller unit.

Destination-oriented navigation through driving lane recommendations

For certain turnoff situations on multiple-land exit points (e.g. freeway intersection) driving lane recommendations are shown in the bottom line. In addition, when a turnoff recommendation is given, the distance to the actual turnoff point is also displayed by means of a bar graph.

The lanes have arrows assigned to them, which indicate on which lane the destination can be reached or the best way to reach it.

With day design, the following colors are valid for representation in the Audio/COMAND display:

Midnight blue: The best or recommended lane.

Light blue: The lane is correct but another lane change will soon be required.

Gray: The lane will not take you to the destination.

IMPORTANT The instrument cluster only displays the midnight blue arrows.

Route guidance by means of voice output

Route guidance by means of voice output is an assistance function that assists the driver without distracting him from the traffic. Voice is output with the selected system language.

The destination-oriented navigation of the navigation system is supported by voice outputs with the following information:

Further voice messages occur, at the start of route calculation, for example, when an intermediate destination has been reached, or when the destination has been reached.

During dynamic route guidance, additional voice messages are issued due to traffic messages affecting the route. Special information is issued in some instances by voice output, for example:

The COMAND controller unit's navigation processor links word segments during a voice output to form complete instructions or information.

IMPORTANT When voice output is active the announcement volume can be adjusted using the following components:

In vehicles without CODE 810 (Sound system) or CODE 811 (Advanced sound system), the voice output is forwarded to the speaker system by the COMAND controller unit.

In vehicles with CODE 810 (Sound system) or CODE 811 (Advanced sound system) the COMAND controller unit transmits the voice output via MOST to the sound system amplifier control unit. The sound system amplifier control unit amplifies the signals and forwards them to the speaker system.

General information on dynamic route guidance

With dynamic route guidance ("Dynamic route" or "Eco route") the current traffic situation is taken into account when appropriate traffic data is received. The traffic data recorder decodes the traffic information and forwards it internally to the navigation processor upon request.

The navigation processor makes the decision whether the route should be changed. If necessary, a message that the route should be changed is output via the speaker system.

Function sequence, dynamic route guidance (except CODE 494 (USA version), except CODE 498 (Japan version) and except CODE B54 (Live Traffic Information))

The incoming information about the traffic situation can be received by the Radio Data System/Traffic Message Channel (RDS/TMC) function via FM radio or digital radio (DAB) (with CODE 537 (Digital radio (DAB))) if an appropriate station has been selected.

The FM receiver in the COMAND controller unit receives the traffic messages from the following antenna amplifiers and transfers them to the traffic data recorder in the COMAND controller unit:

On vehicles with CODE 537 (Digital radio (DAB)), traffic messages received via DAB band III are forwarded by the FM 2 and DAB antenna amplifier (model 218.3) or by the FM 2, DAB, and TV antenna amplifier (model 218.9) to the COMAND controller unit via the following route:

Function sequence, Vehicle Information and Communication System (VICS) via FM multiplexer (with CODE 498 (Japan version))

The driver is provided with vital information by the VICS on the current traffic situation. Traffic impairments and traffic jams are shown on the map, however they are not incorporated into the dynamic route guidance. The radio antenna signal travels to the COMAND controller unit as follows:

The VICS information is processed in the FM multiplexer integrated into the COMAND controller unit. The prepared VICS information is displayed on the Audio/COMAND display via the LVDS line.

Function sequence, VICS dynamic route guidance (with CODE 498 (Japan version), Dealer Option)

Dynamic route guidance requires the VICS control unit. The VICS control unit contains both the receiver and the antenna. The antenna communicates with the VICS beacons (transmitter masts) installed at the roadside, which transmit microwave signals within a 2.5 Gigahertz reception range or infrared signals. Received signals are transmitted directly to the COMAND controller unit where they are decoded. The traffic messages are stored and relayed to the navigation processor.

The traffic data recorder decodes the traffic information and forwards this to the navigation processor upon request.

Function sequence, dynamic route guidance with Real Time Traffic Data (RTTD) (with CODE 494 (USA version) and CODE 536 (SIRIUS satellite radio))

RTTD is real time traffic data emitted via the "Sirius" satellite radio provider, the reception and processing of which is enabled by the Satellite Digital Audio Radio (SDAR) control unit. The real time traffic data contain accident and traffic jam messages as well as traffic flow information.

The real-time traffic data is available around the major cities in the USA, and is transmitted every 5 minutes.

The Satellite Digital Audio Radio (SDAR) control unit receives the real-time traffic data via a direct line from the multifunction antenna and makes it available to the navigation system of the COMAND controller unit via the MOST.

The COMAND controller unit uses the data to calculate alternative routes and displays them on the Audio/COMAND display via an LVDS line.

Function sequence, dynamic route guidance with real-time traffic data via the telematics services communications module (with CODE B54 (Live Traffic Information))

The real time traffic data contains accident and traffic jam messages and traffic flow information, and is available nationwide in the participating countries.

The telematics services communication module receives the real-time traffic data via the emergency call system antenna and transmits it to the COMAND controller unit. The COMAND controller unit uses the data to calculate alternative routes and displays them on the Audio/COMAND display via an LVDS line.

The telematics services communications module requests position data from the COMAND controller unit and transmits it to the service provider via the emergency call system antenna on request. The telematics services communications module then contributes to collating the traffic information from which the dynamic route guidance then benefits again.

Map function

Map display is always controlled by the COMAND controller unit. The following display functions are supported:

Electrical function diagram for navigation mode (COMAND) function Model 218 up to model year 2015 with code 512 (COMAND APS with DVD changer) except code 511 (Audio 50 APS with DVD changer) except code 525 (MB Audio 50 APS radio) Model 218 up to model year 2015 with code 527 (COMAND APS with single DVD drive (with navigation)) except code 511 (Audio 50 APS with DVD changer) except code 525 (MB Audio 50 APS radio) PE82.85-P-2063-97XAA
Model 218 up to model year 2015 with code 512 (COMAND APS with DVD changer) except code 511 (Audio 50 APS with DVD changer) except code 525 (MB Audio 50 APS radio) Model 218 up to model year 2015 with code 527 (COMAND APS with single DVD drive (with navigation)) except code 511 (Audio 50 APS with DVD changer) except code 525 (MB Audio 50 APS radio) PE82.85-P-2063-97XAB
Overview of system components, telematics Model 218
as of model year 2013 up to model year 2015
with code 512 (COMAND APS with DVD changer)
except code 511 (Audio 50 APS with DVD changer)
except code 525 (MB Audio 50 APS radio)
Model 218
as of model year 2013 up to model year 2015
with code 527 (COMAND APS with single DVD drive (with navigation))
except code 511 (Audio 50 APS with DVD changer)
except code 525 (MB Audio 50 APS radio)		 GF82.85-P-9999FQA
Model 218
up to model year 2013
with code 512 (COMAND APS with DVD changer)
except code 511 (Audio 50 APS with DVD changer)
except code 525 (MB Audio 50 APS radio)
Model 218
up to model year 2013
with code 527 (COMAND APS with single DVD drive (with navigation))
except code 511 (Audio 50 APS with DVD changer)
except code 525 (MB Audio 50 APS radio)		 GF82.85-P-9999FQ
