Adaptive brake (ABR), function - GF42.47-P-0001FQ

MODEL 218 up to model year 2014

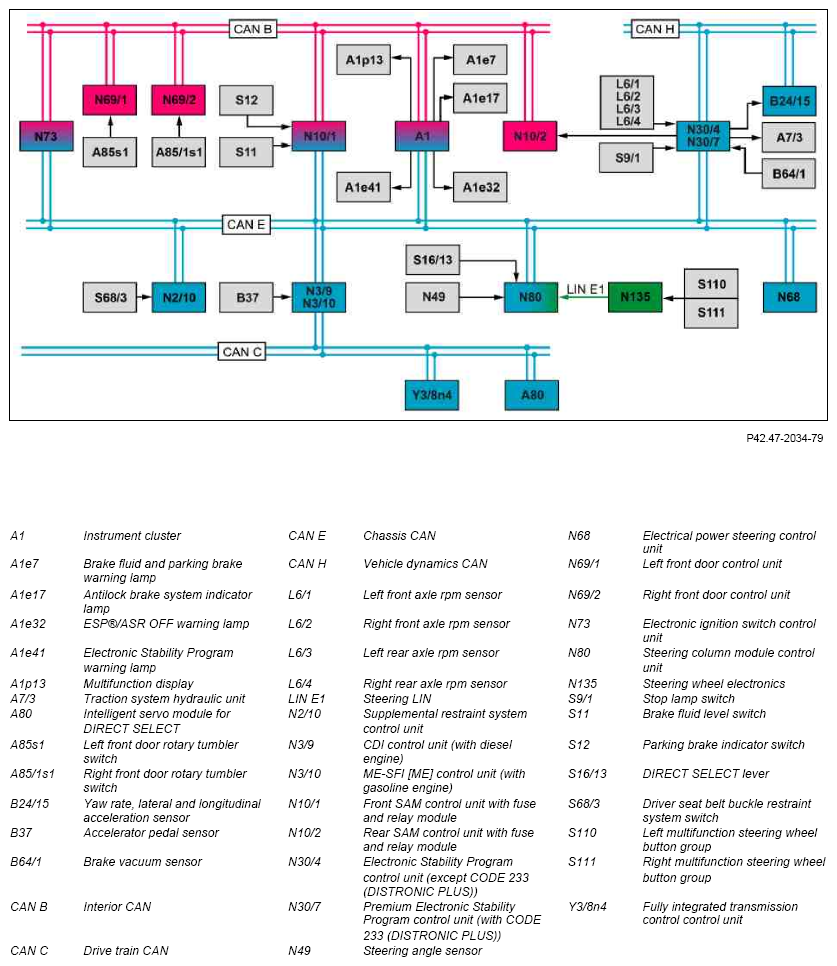

Fig 1: Adaptive Brake Block Diagram - Shown On Except Code 990 (AMG Vehicles)
G10083099Courtesy of MERCEDES-BENZ USA

Show except CODE 990 (AMG vehicles)

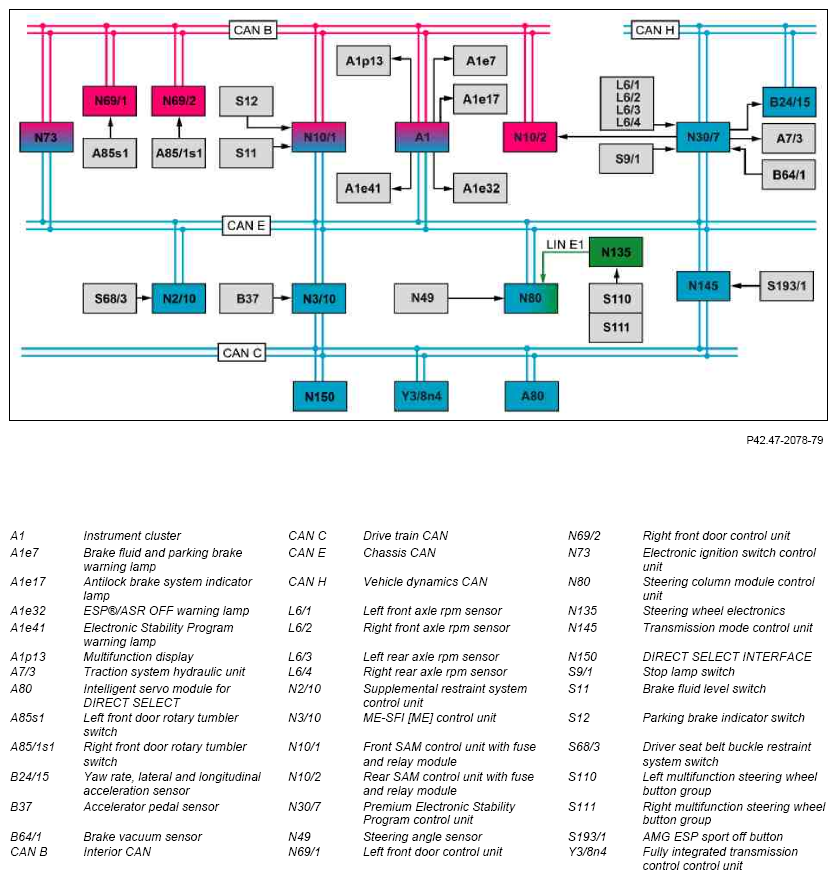

Fig 2: Adaptive Brake Block Diagram - Shown On Except Code 990 (AMG Vehicles)
G10083100Courtesy of MERCEDES-BENZ USA

Shown with CODE 990 (AMG vehicles)

Function requirements, general

ABR, general

ABR assists the driver in dangerous situations which occur suddenly and thus serves active safety.

To do so, the Electronic Stability Program control unit or the Premium Electronic Stability Program control unit evaluates the data from the following components for registering the instantaneous driving situation:

There are 2 ABR variants in use:

IMPORTANT There are no differences between the variants with respect to the ABR subfunctions described below.

The system is made up of the following subfunctions:

ESP function sequence

ESP prevents the vehicle from breaking away when oversteering or understeering. It ensures that the vehicle does not deviate from the course specified by the driver (within physical limits). Brake forces are produced selectively at the individual wheels to correct any deviations. Furthermore, reduction of the drive torque takes place in order to increase driving stability.

The ESP control unit (except CODE 233 (DISTRONIC PLUS), except CODE 990 (AMG vehicles)) or the Premium ESP control unit (with CODE 233 (DISTRONIC PLUS) or with CODE 990 (AMG vehicles)) processes the following performance indicators to determine the vehicle's behavior:

A differentiation is made between the following vehicle characteristics:

Intervention in the case of oversteer

If the vehicle begins to oversteer, brake pressure is built up at the outer front wheel. The resulting reduction in lateral force at the outer front wheel generates a yawing moment which counteracts the tendency of the vehicle to rotate inward. The vehicle speed decreases as a result of the brake force at the front wheel, which also enhances stability.

Intervention in the case of understeer

If the vehicle understeers, the maximum possible lateral force at the front axle has been exceeded. In other words, the vehicle pushes via the front axle to the outer edge of the curve.

The resulting instability is counteracted by means of a reduction of the drive torque and the following brake interventions on up to 3 wheels:

Depending on the brake force, a torque is generated which causes the vehicle to rotate inward with a simultaneous reduction in speed. This has a considerable stabilizing effect.

The ESP control unit (except CODE 233 (DISTRONIC PLUS), except CODE 990 (AMG vehicles)) or the Premium ESP control unit (with CODE 233 (DISTRONIC PLUS) or with CODE 990 (AMG vehicles)) sends a signal over the chassis CAN for reduction of the drive torque to the CDI control unit (with diesel engine) or the ME-SFI [ME] control unit (with gasoline engine), which then reduces the engine power accordingly.

A pending shift operation is suppressed for the duration of control intervention.

To this end, the ESP control unit (except CODE 233 (DISTRONIC PLUS), except CODE 990 (AMG vehicles)) or the Premium ESP control unit (with CODE 233 (DISTRONIC PLUS) or with CODE 990 (AMG vehicles)) sends a signal over the chassis CAN to the CDI control unit (with diesel engine) or the ME-SFI [ME] control unit (with gasoline engine), which forwards the information over the drive train CAN to the fully integrated transmission control unit. The fully integrated transmission control unit suppresses the shift operation.

EBD function sequence

EBD [EBV] provides assistance when the driver applies medium force to the brake pedal.

EBD [EBV] prevents overbraking of the rear axle and increases vehicle stability when braking in a curve by reducing the pressure at the rear wheel on the inside of the curve or increasing it at the front wheel on the outside of the curve as required.

The side-slip angle (angle between vehicle longitudinal axis and direction of movement of the vehicle's center of gravity) is calculated using the yaw rate (speed of vehicle rotation about vertical axis). The yaw rate, the lateral acceleration and the turning angle of the front wheels (calculated from the steering wheel angle) can be used to determine the lateral forces on the wheels. The longitudinal forces on the wheels are calculated using the engine torque, transmission stage and brake pressure at each wheel.

If the measured yaw rate does not match the specified value or the determined side-slip angle is too large, the ESP control unit (except CODE 233 (DISTRONIC PLUS), except CODE 990 (AMG vehicles)) or the Premium ESP control unit (with CODE 233 (DISTRONIC PLUS) or with CODE 990 (AMG vehicles)) generates a signal for the corresponding wheel to increase or reduce braking force. The resulting forces stabilize the vehicle.

Function sequence of exhaust test, dynamometer test mode

For vehicle test purposes, the ABR can be set to roller dynamometer mode if the workshop menu is activated through the instrument cluster and the engine is then started. ESP, ABS and ASR are then switched passive. The Electronic Stability Program warning lamp and the antilock brake system indicator lamp in the instrument cluster light up. In addition, a message is displayed in the multifunction display of the instrument cluster. The roller dynamometer mode can also be activated via Xentry Diagnostics.

ABS function sequence

ABS prevents the wheels from locking up when braking and as a result maintains the steerability and directional stability and road adhesion during vehicle deceleration.

If a blocked wheel is detected through the rpm sensor signals by the ESP control unit (except CODE 233 (DISTRONIC PLUS), except CODE 990 (AMG vehicles)) or by the Premium ESP control unit (with CODE 233 (DISTRONIC PLUS) or with CODE 990 (AMG vehicles)), the brake pressure on the corresponding brake cylinder is continuously reduced until the wheel is no longer blocked.

Function sequence for ASR, ETS

ASR and ETS prevent the drive wheels from spinning when driving. ASR and ETS also serve to provide improved directional stability and road adhesion for increased traction potential over the entire vehicle speed range. Spinning of the drive wheels is detected by the rpm sensor signals from the ESP control unit (except CODE 233 (DISTRONIC PLUS), except CODE 990 (AMG vehicles)) or from the Premium ESP control unit (with CODE 233 (DISTRONIC PLUS) or with CODE 990 (AMG vehicles)). Wheel spinning is countered by reduction of the drive torque.

To this end the ESP control unit (except CODE 233 (DISTRONIC PLUS), except CODE 990 (AMG vehicles)) or the Premium ESP control unit (with CODE 233 (DISTRONIC PLUS) or with CODE 990 (AMG vehicles)) sends a signal over the chassis CAN for reduction of the drive torque to the CDI control unit (with diesel engine) or the ME-SFI [ME] control unit (with gasoline engine), which then reduces the engine power accordingly.

A check is continuously performed to establish whether the drive torque specified by the driver via the accelerator pedal sensor can be permitted again, e.g. due to an improvement in road surface adhesion. The drive torque is transmitted to the opposite, stable drive wheel by means of intervention by the brake system on the spinning wheel.

BAS function sequence

BAS detects emergency braking situations from rapid actuation of the brake pedal and, if necessary, increases the brake pressure in order to achieve maximum possible deceleration.

The ESP control unit (except CODE 233 (DISTRONIC PLUS), except CODE 990 (AMG vehicles)) or the Premium ESP control unit (with CODE 233 (DISTRONIC PLUS) or with CODE 990 (AMG vehicles)) evaluates the degree of pressure rise in the brake system and then intiates emergency braking when a specific triggering threshold is exceeded.

Function sequence for BAS PLUS, with CODE 233 (DISTRONIC PLUS)

BAS Plus increases the brake pressure depending on the speed of the brake pedal operation and the distance of the vehicle driving in front.

Additional function requirements for the Hill Start Assist

Hill Start Assist function sequence

When starting off, the Hill-Start Assist prevents the vehicle from rolling back opposite the engaged gear range during the time it takes for the driver to change from the brake pedal to the accelerator pedal.

The function is triggered automatically, if when the vehicle is at a standstill an incline is detected via the yaw rate sensor for lateral and longitudinal acceleration which would cause rolling in the opposite direction to the gear range engaged.

This is sent over the dynamics CAN to the ESP control unit (except CODE 233 (DISTRONIC PLUS), except CODE 990 (AMG vehicles)) or the Premium ESP control unit (with CODE 233 DISTRONIC PLUS or CODE 990 (AMG vehicles).

The ESP control unit (except CODE 233 (DISTRONIC PLUS), except CODE 990 (AMG vehicles)) or the Premium ESP control unit (with CODE 233 (DISTRONIC PLUS) or with CODE 990 (AMG vehicles)) also reads in the brake lights switch directly, thereby detecting the brake pedal status.

The status of the parking brake is detected through the parking brake indicator switch. This is read in directly by the front SAM control unit with fuse and relay module and its status sent over the chassis CAN to the ESP control unit (except CODE 233 (DISTRONIC PLUS), except CODE 990 (AMG vehicles)) or the Premium ESP control unit (with CODE 233 (DISTRONIC PLUS) or with CODE 990 (AMG vehicles)).

The brake pressure applied by the driver is maintained in the brake cylinders by the traction system hydraulic unit.

Once the brake pedal is released, the brake pressure is modulated based on the downward torque due to slope, braking torque and drive torque.

Once there is sufficient starting torque, the function is deactivated and the vehicle drives off.

However, if the driver does not actuate the accelerator pedal, the pressure in the brake cylinders is released after t = 1 s.

Additional function requirements - dry braking

IMPORTANT The status of the wiper system is sent by the front SAM control unit with fuse and relay module over the chassis CAN to the ESP control unit (except CODE 233 (DISTRONIC PLUS), except CODE 990 (AMG vehicles)) or the Premium ESP control unit (with CODE 233 (DISTRONIC PLUS) or with CODE 990 (AMG vehicles).

Dry braking function sequence

Dry braking enhances the performance of the brakes on the front axle in wet driving conditions. The brake pads are applied cyclically for t = 0.5 s with a brake pressure p = 1 bar to remove the film of water from the brake disk. This improves the response time of the brake.

IMPORTANT In order to adapt the calculated triggering threshold of the accelerator pedal gradient to driver behavior, a learning algorithm is implemented which places the driver in the category "normal driver" or "hectic driver" on the basis of the average rate at which the accelerator pedal is released.

Function sequence for precharging dependent on accelerator pedal operation

Upon detection of a possible emergency braking situation, the brake pads are brought into contact with the brake disks. The clearance between the brake pad and brake disk is thus compensated before the driver operates the brake. The response time of the brake is improved and a shorter braking distance can be achieved.

Emergency braking is detected from the release gradient of the accelerator pedal, which is formed from the accelerator pedal position. If a rapid release of the accelerator pedal is detected, the system assumes that the driver intends to brake. The function is activated and a brake pressure of p = 2 to 3 bar is requested.

Function sequence for precharging depending on lateral acceleration

During dynamic cornering, the brake pads are brought into contact with the front axle brake disks. This closes the air gap between the brake pad and brake disk in order to achieve the required braking power at the corresponding wheel as quickly as possible in the event of ESP intervention by the brake system.

Function sequence for HOLD function

The HOLD function assists the driver during waiting times in traffic and when starting off on a hill. The HOLD function is activated by briefly and quickly depressing the brake pedal when the vehicle is stationary. Successful activation of the HOLD function is indicated in a status line in the instrument cluster.

The HOLD function can be activated if:

If the driver releases the brake pedal, an incline-dependent hold pressure is set and maintained until the driver presses the brake pedal again or drives off. Pressure reduction when starting off is performed by the standstill coordinator according to the respective situation.

The HOLD function is deactivated automatically if:

Safety strategy

If the HOLD function is activated and if the driver wishes to leave the vehicle, the position "P" is automatically engaged by the intelligent servo module for DIRECT SELECT when the vehicle is at a standstill and the transmitter key removed.

A warning is issued on the instrument cluster.

Function sequence for deactivating ASR and ESP, except CODE 990 (AMG vehicles)

The ASR and ESP functions can be deactivated using the left multifunction steering wheel button group and right multifunction steering wheel button group through the "Assist" menu and "ESP" submenu in the instrument cluster. The instrument cluster receives control signals from the multifunction steering wheel (MFL) in the following way:

The instrument cluster sends the "ESP_OFF" request over the chassis CAN to the ESP control unit (except CODE 233 (DISTRONIC PLUS), except CODE 990 (AMG vehicles)) or the Premium ESP control unit (with CODE 233 (DISTRONIC PLUS) or with CODE 990 (AMG vehicles)).

If the system is switched passive, the Electronic Stability Program warning lamp lights up in the instrument cluster. The control thresholds are raised in the case of passive switching.

IMPORTANT ABS cannot be deactivated. ESP is always active during a brake application.

Function sequence for ASR and ESP ON, Sport or OFF, with CODE 990 (AMG vehicles)

ESP can be operated in 3 different operating modes. You can switch between the operating conditions by pressing the ESP Sport Off AMG button. To switch between ESP ON and ESP Sport mode, press the ESP OFF switch only briefly. To switch off the ESP, the ESP Sport Off AMG button has to be pressed for t > 2.5 s. The ESP Sport Off AMG button status is read in by the transmission mode control unit and sent over chassis CAN to the Premium Electronic Stability Program control unit.

The operating modes are:

ESP ON

ABS, ASR and ESP operate as on series production vehicles with adjusted control thresholds.

The Electronic Stability Program warning lamp and the ESP®/ASR OFF warning lamp in the instrument cluster are off, during an ESP intervention the Electronic Stability Program warning lamp flashes on and off.

ESP SPORT

The ABS operates as on series production vehicles with adapted control thresholds.

When engine torque control is active, ASR operates with significantly reduced intervention strength and adjusted single-sided brake system interventions to improve traction.

ESP operates as with reduced intervention strength and adapted control thresholds.

The Electronic Stability Program warning lamp in the instrument cluster remains lit; it flashes during ESP intervention. The message "ESP SPORT" appears in the instrument cluster.

ESP OFF

The ABS is configured for maximum deceleration. Ride comfort is of secondary importance.

The ASR operates without engine torque control. Only the single-sided brake system interventions to improve traction are active.

ESP is completely deactivated, no engine torque or brake system interventions are made.

The Electronic Stability Program warning lamp and the ESP®/ASR OFF warning lamp in the instrument cluster remain lit. The message "ESP OFF" appears in the instrument cluster.

IMPORTANT All PRE-SAFE functions are deactivated in ESP OFF mode.

Function sequence for standstill coordinator (SSK)

The standstill coordinator monitors the braking support systems DISTRONIC PLUS (with ABR premium system (with code 233 (DISTRONIC PLUS))) and HOLD function below a speed of 3 km/h until the vehicle has come to a safe standstill. Within this vehicle speed range, the SSK is responsible of the transfer to a safe state when a securing event occurs.

When the vehicle is at a safe standstill, the rolling monitoring function of the SSK is requested by the support systems. If vehicle rolling is detected, the brake pressure is increased until the vehicle is stationary again. For vehicles with the ABR Premium system (with CODE 233 (DISTRONIC PLUS) or with CODE 990 (AMG vehicles)) a leakage compensation is also active during the safe standstill. If the brake pressure measured by means of the circuit pressure sensors drops relative to the specified pressure request of the SSK, the specified pressure of the SSK is restored by means of an active pressure buildup.

Securing the vehicle by means of the SSK is necessary if the following events occur:

Door contact plausibility check

The plausibility check is used to detect a fault in the signal path from the let front door rotary tumbler switch or the right front door rotary tumbler switch (dependent on global national code for right-hand or left-hand drive vehicle), read in by the left front door control unit or the right front door control unit, and sent over the interior CAN and chassis CAN to the ESP control unit (except CODE 233 (DISTRONIC PLUS), except CODE 990 (AMG vehicles)) or the Premium ESP control unit (with CODE 233 (DISTRONIC PLUS) or with CODE 990 (AMG vehicles)). If "Driver door closed" is erroneously detected because of an electrical or mechanical fault, although the driver door is open, this is detected by the door contact plausibility check in the SSK, and a corresponding fault is stored in the ESP control unit (except CODE 233 (DISTRONIC PLUS), except CODE 990 (AMG vehicles)) or the Premium ESP control unit (with CODE 233 (DISTRONIC PLUS) or with CODE 990 (AMG vehicles)).

SSK deactivation

Any deactivation of the SSK is notified internally in the ESP control unit (except CODE 233 (DISTRONIC PLUS), except CODE 990 (AMG vehicles)) or the Premium ESP control unit (with CODE 233 (DISTRONIC PLUS) or with CODE 990 (AMG vehicles)) and externally over the chassis CAN. An activation of the support systems is no longer possible. Securing of the vehicle is additionally requested immediately if the SSK is deactivated and a support system is active.

Sliding and skidding

When the vehicle is stationary, the SSK monitors whether the vehicle is sliding or skidding. Activation of the support systems is not permitted here. The active support systems must be deactivated when the brake pedal is depressed and the vehicle is sliding.

Safety strategy, request engage "P" or Emergency-P path

The safety strategy is implemented via the intelligent servo module for DIRECT SELECT. The ESP control unit (except CODE 233 (DISTRONIC PLUS), except CODE 990 (AMG vehicles)) or the Premium ESP control unit (with CODE 233 (DISTRONIC PLUS) or with CODE 990 (AMG vehicles)) sends a request to engage gear range "P" over the chassis CAN and drive train CAN with the interface for the CDI control unit (with diesel engine) or the ME-SFI [ME] control unit (with gasoline engine) to the intelligent servo module control unit for DIRECT SELECT. After engaging gear range "P" by the intelligent servo module for DIRECT SELECT and feedback to the ESP control unit (except CODE 233 (DISTRONIC PLUS), except CODE 990 (AMG vehicles)) or the Premium ESP control unit (with CODE 233 (DISTRONIC PLUS) or with CODE 990 (AMG vehicles)) the vehicle is then secured.

The existing brake pressure at the wheels is reduced and the SSK becomes inactive. If the intelligent servo module for DIRECT SELECT does not signal engagement of gear range "P" within a defined time, the Emergency-P function of the electronic ignition lock control unit forces gear range "P" to be engaged.

Steer Assist function sequence

Steer Assist is intended to help the driver achieve the optimal steering characteristics in critical situations. Steer Assist is implemented with the aid of the electrical power steering control unit and the ESP control unit (except CODE 233 (DISTRONIC PLUS), except CODE 990 (AMG vehicles)) or the Premium ESP control unit (with CODE 233 (DISTRONIC PLUS) or with CODE 990 (AMG vehicles)).

The following functions are performed here:

The current driving status is detected by the ESP control unit (except CODE 233 (DISTRONIC PLUS), except CODE 990 (AMG vehicles) or by the Premium ESP control unit (with CODE 233 (DISTRONIC PLUS) or with CODE 990 (AMG vehicles)). If necessary, the message "Steering assistance request" is sent via the chassis CAN to the electrical power steering control unit which actuates the electric power steering actuator motor accordingly.

System fault display function sequence

The driver is informed about the system status and about faults by the following displays:

In the event of a failure of the ESP control unit or the Premium ESP control unit a basic brake function without ABS is still available.

IMPORTANT The status of the brake fluid level switch and the parking brake indicator switch is read in by the front SAM control unit with fuse and relay module and sent over the interior CAN to the instrument cluster.

  Electrical function schematic for Adaptive Brake (ABR)   PE42.47-P-2050-97XAA
  Overview of system components, Adaptive Brake (ABR)   GF42.47-P-9997FQ
