Overview of system components, Adaptive Brake (ABR) - GF42.47-P-9997FQ
MODEL 218

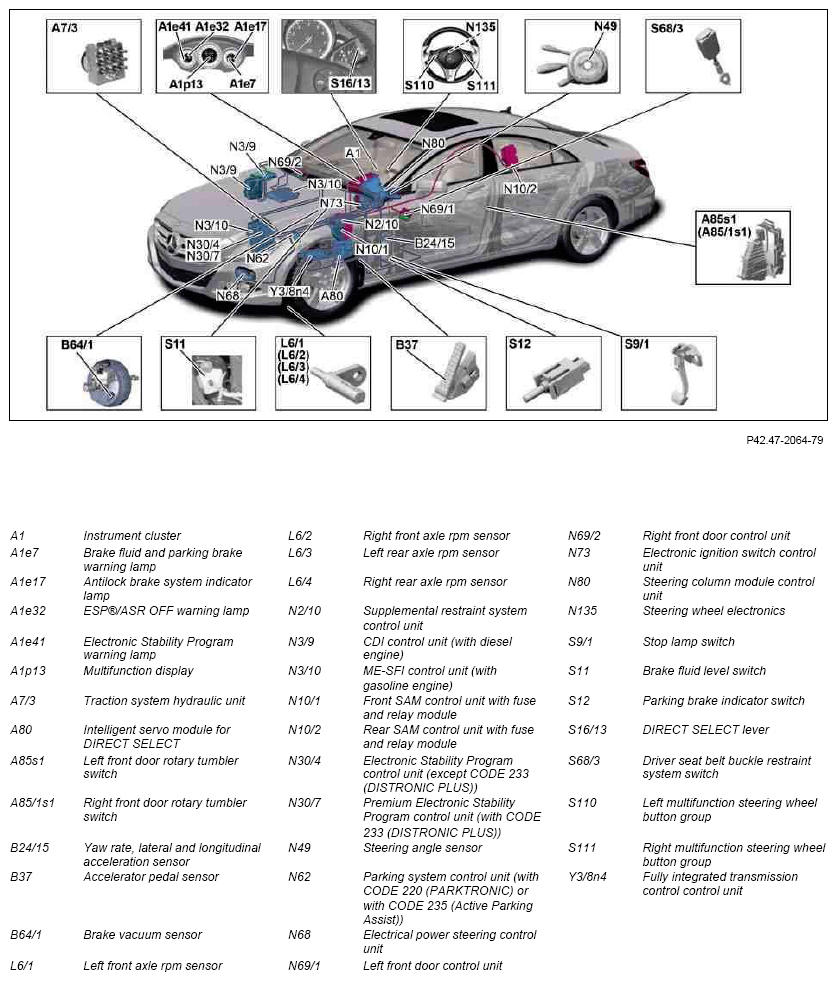

Shown with exception of model 218.374

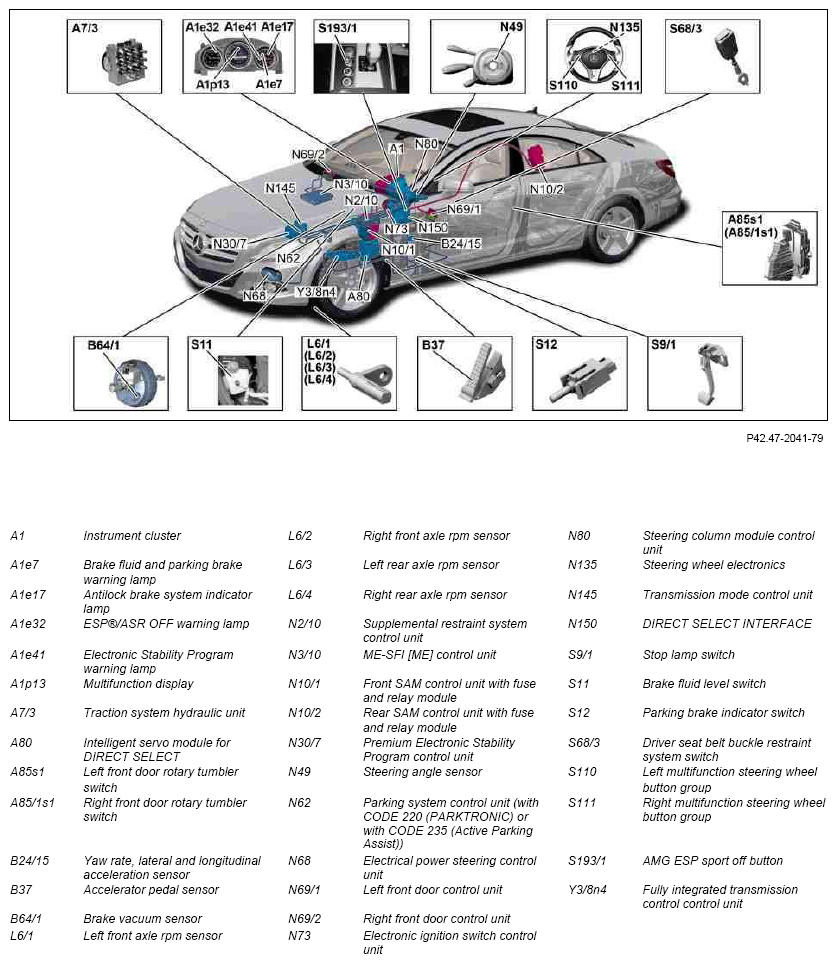

Shown on model 218.374
| Component description for instrument cluster | A1, A1e7, A1e17, A1e32, A1e41, A1p13 | GF54.30-P-6000FQ | |
| Component description for intelligent servo module for DIRECT SELECT | MODEL 218 with TRANSMISSION 722.9 (except 722.931) A80 |
GF27.19-P-4020AHQ | |
| MODEL 218 with TRANSMISSION 722.931 | GF27.19-P-4020AHR | ||
| Component description for yaw rate sensor for lateral and longitudinal acceleration | B24/15 | GF42.45-P-4810FQ | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080FQ | |
| Component description for CDI control unit | MODEL 218 with ENGINE 642.8 N3/9 |
GF07.16-P-6000OG | |
| MODEL 218 with ENGINE 651.9 | GF07.16-P-6000OM | ||
| Component description for ME-SFI (ME) control unit | MODEL 218 with ENGINE 276.9 N3/10 |
GF07.61-P-6000MM | |
| MODEL 218 with ENGINE 157.9 MODEL 218 with ENGINE 278.9 |
GF07.61-P-6000MMA | ||
| MODEL 218 with ENGINE 276.8 as of model year 2015 |
GF07.61-P-6000MMP | ||
| Component description for front SAM control unit with fuse and relay module | N10/1 | GF54.21-P-6070FQ | |
| Component description for rear SAM control unit with fuse and relay module | N10/2 | GF54.21-P-6030FQ | |
| Component description for Electronic Stability Program control unit | MODEL 218 up to model year 2014 N30/4, N30/7 |
GF42.45-P-5119FQ | |
| MODEL 218 as of model year 2014 |
GF42.45-P-5119FQA | ||
| Parking system control unit component description | MODEL 218 up to model year 2015 with CODE 220 (PARKTRONIC) MODEL 218 up to model year 2015 with CODE 235 (Active Park Assist) N62 |
GF54.65-P-5002FQ | |
| MODEL 218 as of model year 2015 with CODE 235 (Active Park Assist) |
GF54.65-P-5002FQM | ||
| Electrical power steering control unit (ES), component description | MODEL 218 up to model year 2014 N68 |
GF46.35-P-7010FQ | |
| MODEL 218 as of model year 2014 |
GF46.35-P-7010FQA | ||
| Component description for left front door control unit | N69/1 | GF72.29-P-6001FQ | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009FQ | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001FQ | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051FQ | |
| Component description for transmission mode control unit | MODEL 218 with TRANSMISSION 722.931 N145, S193/1 |
GF27.19-P-1350AHR | |
| DIRECT SELECT interface, component description | MODEL 218 with TRANSMISSION 722.931 N150 |
GF27.19-P-1300AHR | |
| Component description for fully integrated transmission control unit | MODEL 218 with TRANSMISSION 722.9 (except 722.931) Y38n4 |
GF27.60-P-5165AHQ | |
| MODEL 218 with TRANSMISSION 722.931 | GF27.60-P-5165AHR | ||
| Table of contents for function description, adaptive brake (ABR) | GF42.47-P-0999FQ |
