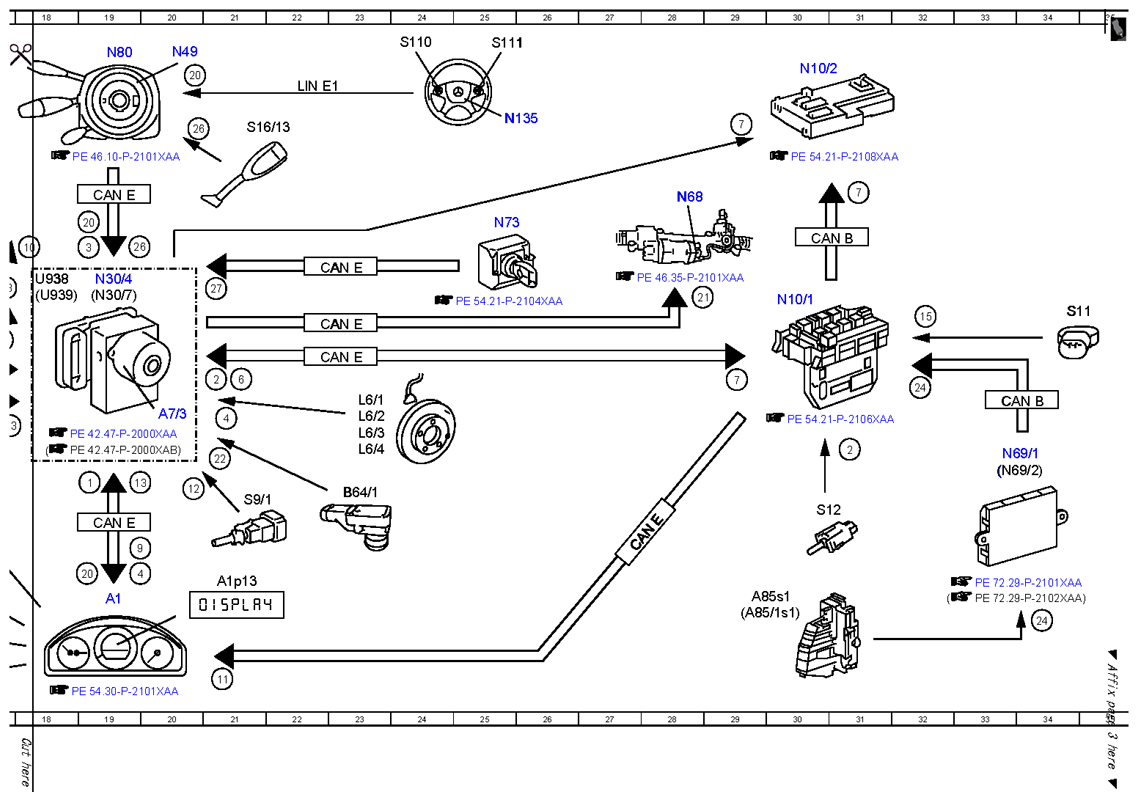

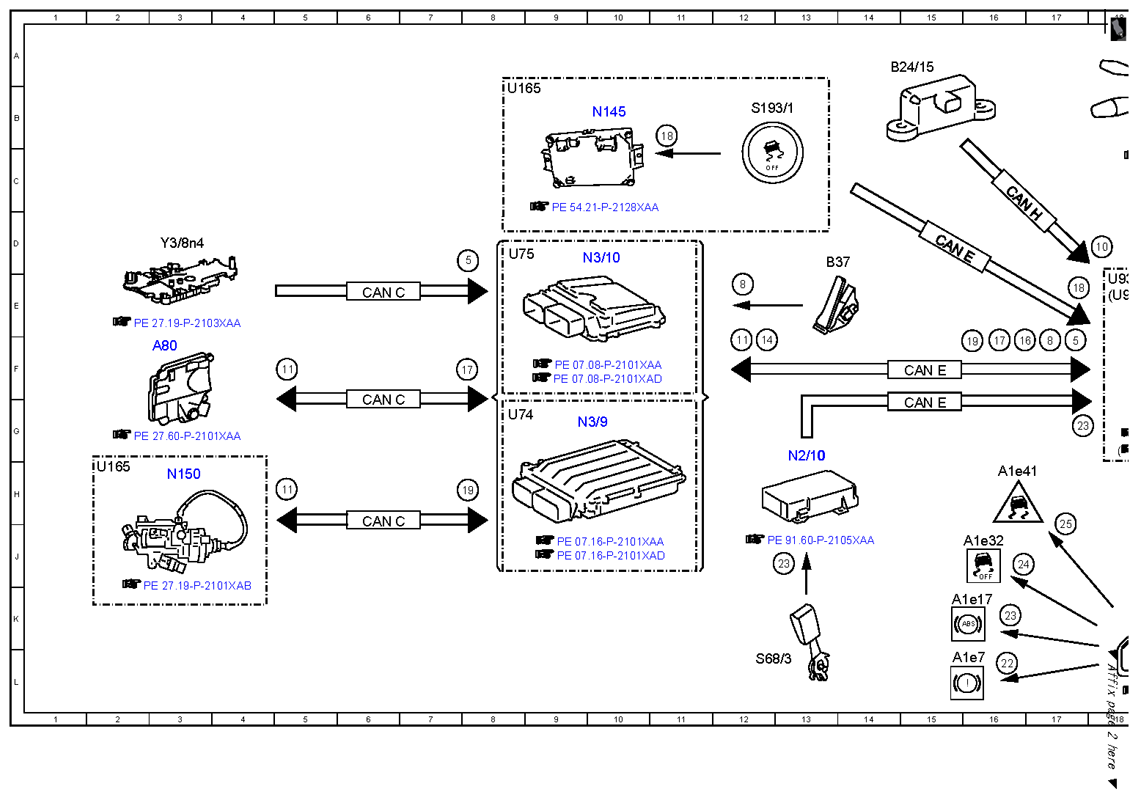

| 1 |
ESP OFF, request |
19H |
| 10 |
Yaw rate, lateral and longitudinal acceleration sensor, signal |
18D |
| 11 |
Service brake, status |
12F |
| 11 |
Service brake, status |
21L |
| 11 |
Service brake, status |
5H |
| 12 |
Brake light switch, status |
20H |
| 13 |
Dynamometer mode, status |
19H |
| 14 |
Engine torque, reduce request |
12F |
| 15 |
Brake fluid level switch, status |
32E |
| 16 |
Circuit 61, status |
16F |
| 17 |
Intelligent servo module, status |
8F |
| 17 |
Intelligent servo module, status |
16F |
| 18 |
AMG ESP Sport Off button status |
11B |
| 18 |
AMG ESP Sport Off button status |
17E |
| 19 |
Selector lever position, status |
8H |
| 19 |
Selector lever position, status |
16F |
| 2 |
Parking brake indicator switch, status |
31G |
| 2 |
Parking brake indicator switch, status |
21F |
| 20 |
Multifunction steering wheel button group, signal |
20A |
| 20 |
Multifunction steering wheel button group, signal |
19D |
| 20 |
Multifunction steering wheel button group, signal |
19J |
| 21 |
Steering assistance, request |
28E |
| 22 |
Brake fluid and parking brake warning lamp, actuation |
21H |
| 23 |
Anti-lock braking system indicator lamp, actuation |
17G |
| 24 |
Door rotary tumbler switch, status |
32F |
| 24 |
Door rotary tumbler switch, status |
34K |
| 25 |
Electronic Stability Program warning lamp, actuation |
17J |
| 26 |
Selector lever position, status |
19D |
| 26 |
Selector lever position, status |
20B |
| 27 |
Circuit 15, status |
21E |
| 3 |
Steering angle, signal |
19D |
| 4 |
Wheel speed, signal |
19J |
| 4 |
Wheel speed, signal |
21G |
| 5 |
Shift stage, status |
8D |
| 5 |
Shift stage, status |
17F |
| 6 |
Variant coding, signal |
21F |
| 7 |
Brake lights, request |
29F |
| 7 |
Brake lights, request |
31C |
| 7 |
Brake lights, request |
29B |
| 8 |
Accelerator pedal sensor, signal |
12E |
| 8 |
Accelerator pedal sensor, signal |
17F |
| 9 |
Instrument cluster, message |
19J |
| A1 |
Instrument cluster |
19K |
| A1e17 |
Antilock brake system indicator lamp |
15K |
| A1e32 |
ESP®/ASR OFF warning lamp |
16J |
| A1e41 |
Electronic Stability Program warning lamp |
16H |
| A1e7 |
Brake fluid and parking brake warning lamp |
15L |
| A1p13 |
Multifunction display |
21J |
| A7/3 |
Traction system hydraulic unit |
20G |
| A80 |
Intelligent servo module for DIRECT SELECT |
3F |
| A85/1s1 |
Right front door rotary tumbler switch |
29K |
| A85s1 |
Left front door rotary tumbler switch |
29K |
| B24/15 |
Yaw rate, lateral and longitudinal acceleration sensor |
14A |
| B37 |
Accelerator pedal sensor |
13D |
| B64/1 |
Brake vacuum sensor |
23H |
| CAN B |
Interior CAN |
30D |
| CAN B |
Interior CAN |
33G |
| CAN C |
Drive train CAN |
6G |
| CAN C |
Drive train CAN |
6E |
| CAN C |
Drive train CAN |
6J |
| CAN E |
Chassis CAN |
19J |
| CAN E |
Chassis CAN |
15F |
| CAN E |
Chassis CAN |
19C |
| CAN E |
Chassis CAN |
28J |
| CAN E |
Chassis CAN |
23F |
| CAN E |
Chassis CAN |
15D |
| CAN E |
Chassis CAN |
23E |
| CAN E |
Chassis CAN |
15G |
| CAN E |
Chassis CAN |
23D |
| CAN H |
Vehicle dynamics CAN |
16C |
| L6/1 |
Left front axle rpm sensor |
23G |
| L6/2 |
Right front axle rpm sensor |
23G |
| L6/3 |
Left rear axle rpm sensor |
23G |
| L6/4 |
Right rear axle rpm sensor |
23G |
| LIN E1 |
Steering LIN |
22B |
| N10/1 |
Front SAM control unit with fuse and relay module |
30E |
| N10/2 |
Rear SAM control unit with fuse and relay module |
30A |
| N135 |
Steering wheel electronics |
25B |
| N145 |
Transmission mode control unit |
10B |
| N150 |
DIRECT SELECT INTERFACE |
3H |
| N2/10 |
Supplemental restraint system control unit |
13G |
| N3/10 |
ME-SFI [ME] control unit |
9D |
| N3/9 |
CDI control unit |
9G |
| N30/4 |
Electronic Stability Program control unit |
19E |
| N30/7 |
Premium Electronic Stability Program control unit |
19E |
| N49 |
Steering angle sensor |
20A |
| N68 |
Electrical power steering control unit |
28C |
| N69/1 |
Left front door control unit |
33G |
| N69/2 |
Right front door control unit |
33H |
| N73 |
Electronic ignition switch control unit |
25D |
| N80 |
Steering column module control unit |
19A |
| S11 |
Brake fluid level switch |
34E |
| S110 |
Left multifunction steering wheel button group |
24A |
| S111 |
Right multifunction steering wheel button group |
25A |
| S12 |
Parking brake indicator switch |
30H |
| S16/13 |
DIRECT SELECT lever |
21B |
| S193/1 |
AMG ESP sport off button |
12B |
| S68/3 |
Driver seat belt buckle restraint system switch |
12L |
| S9/1 |
Stop lamp switch |
21H |
| U165 |
Valid for AMG |
8B |
| U165 |
Valid for AMG |
2H |
| U74 |
Valid for diesel engines |
8G |
| U75 |
Valid for gasoline engines |
8D |
| U938 |
Valid for ESP Basic |
18E |
| U939 |
Valid for ESP Premium |
18E |
| Y3/8n4 |
Fully integrated transmission control control unit |
3D |
