Replace rubber mount for compressor - AR32.22-P-2011LW

MODEL 205 with CODE 489 (AIRMATIC)

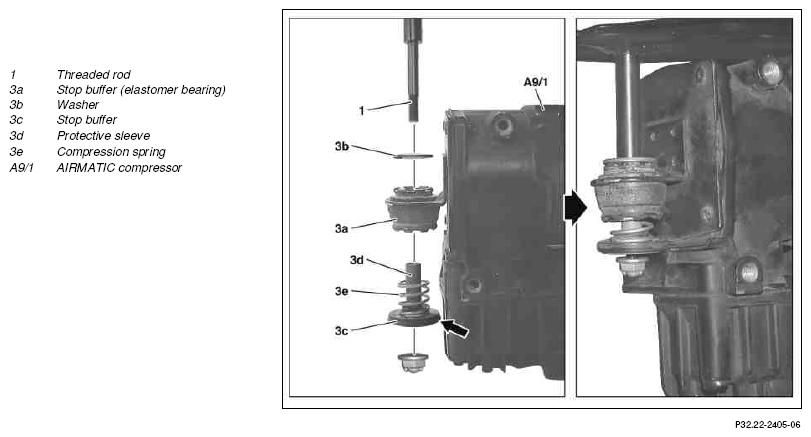

Fig 1: Compressor Rubber Mount Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove
1	Remove AIRmatic compressor (A9/1)		AR32.22-P-2001LW
	Check
2	Check bracket of AIRmatic compressor (A9/1)	If the threaded rods (1) exhibit damage or galling: ↓ Replace bracket for AIRmatic compressor (A9/1).
			AR32.22-P-2009LW
	Disassemble
3	Push stop buffer (3a) out of eyelet on AIRmatic compressor (A9/1)	Replace the stop buffer (3a) and attaching parts of the AIRmatic compressor (A9/1). If the stop buffer and (3a) and attaching parts are reused, knocking and thumping noises may occur.
	Assemble
4	Insert stop buffer (3a) in eyelet on AIRmatic compressor (A9/1)	The raised section of the stop buffer (3a) must face downwards. The groove of the stop buffer (3a) must latch all round its total circumference into the eyelet on the AIRmatic compressor (A9/1).
5	Fit shim (3b) onto stop buffer (3a)
6	Slide stop buffer (3c) onto protective sleeve (3d)	The outer lip of the stop buffer (3c) must enclose the washer of the protective sleeve (3d) around its total circumference (arrow).
7	Mount push spring (3e) onto protective sleeve (3d)	The push spring (3e) is centered by a demolding on the stop buffer (3c).
	Install
8	Install AIRmatic compressor (A9/1)		AR32.22-P-2001LW
