Remove/install front stabilizer bar link rod - AR32.35-P-3328LW

MODEL 205 except CODE M005 (4MATIC)

Shown on right side of vehicle

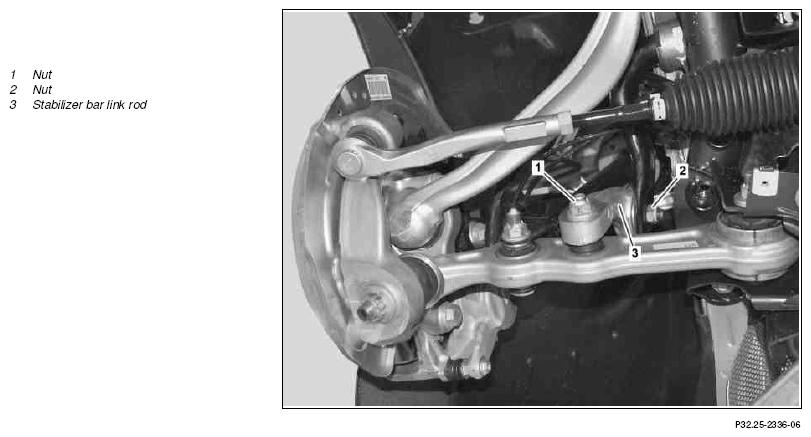

Fig 1: Front Stabilizer Bar Link Rod Remove/Install Components - Shown On Right Side Of Vehicle

Courtesy of MERCEDES-BENZ USA

	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Notes on AIRmatic		AH32.22-P-1000-02LW
	Notes on repair work on suspension components		AH00.00-P-0100-01A
	Remove/install
1	Vent pressure in AIRmatic system using diagnostic system
		MODEL 205 with CODE 489 (AIRmatic)	AD00.00-P-2000-04B
2	Remove left or right front wheel-and-tire assy		AR40.10-P-1101A
3	Detach suspension strut from spring control arm	MODEL 205 with CODE 489 (AIRmatic) Carefully push suspension strut outwards. Otherwise the boot on the suspension strut joint may be damaged.	AR32.25-P-1017LWL
4	Unscrew nut (1)	Nut, torsion bar linkage to spring control arm	*BA32.20-P-1003-02R
5	Unscrew nut (2)	Counterhold torsion bar link rod (3) on elastomer bearing. Otherwise the elastomer bearing may be damaged.
		Nut, torsion bar linkage to torsion bar	*BA32.20-P-1002-02R
		Wrench SW 12	Fig 2
6	Turn steering and remove torsion bar link rod (3)	When removing the left torsion bar link rod (3), turn steering to the left. When removing the right torsion bar link rod (3), turn steering to the right.
	Check
7	Check condition of elastomer bearing of torsion bar link rod (3) and for signs of damage	If damaged: ↓ Replace stabilizer bar link rod (3).
8	Check condition of torsion bar pivot bushing on spring control arm (5)		AR33.15-P-0170LW
		If damaged: ↓ Replace spring control arm.
9	Install in the reverse order

Fig 2: Identifying Wrench SW 12 (451 589 00 10 00)

Courtesy of MERCEDES-BENZ USA
