Remove/install upper control arm - AR33.20-P-0500LW

MODEL 205

Shown on vehicle except CODE 489 (AIRMATIC)

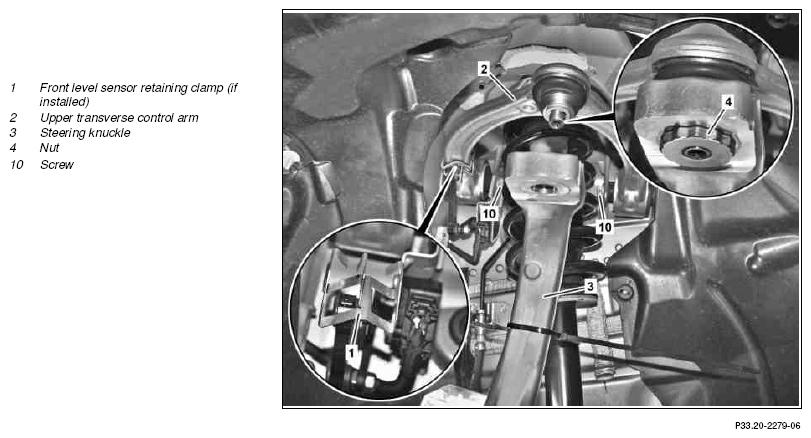

Fig 1: Upper Control Arm Remove/Install Components - Shown On Vehicle Except Code 489

Courtesy of MERCEDES-BENZ USA

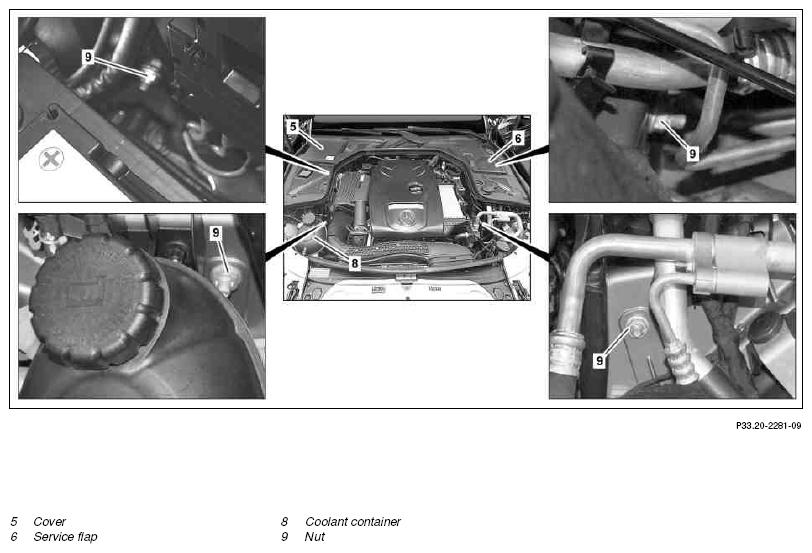

Fig 2: Upper Control Arm Remove/Install Components - Shown On Vehicle Except Code 489

Courtesy of MERCEDES-BENZ USA

Fig 3: Upper Control Arm Remove/Install Components - Shown On Vehicle Except Code 489

Courtesy of MERCEDES-BENZ USA

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Notes on repair work on suspension components		AH00.00-P-0100-01A
	Remove/install
1	Disconnect ground line and positive line of on-board electrical system battery	When removing upper transverse control arm (2) on right side.
		MODEL 205 (except 205.08/28/38) without CODE ME04 (Hybrid drive, 20KW variant) without CODE ME06 (Hybrid drive 50-KW variant (incl. plugin))	AR54.10-P-0005LW
2	Remove left or right front wheel-and-tire assy		AR40.10-P-1101A
3	Remove corresponding front suspension strut	MODEL 205 with CODE 489 (AIRMATIC)	AR32.25-P-1017LWL
4	Detach front level sensor retaining clamp (1) from upper transverse control arm (2)	If installed. Pay attention to installation position.
5	Secure steering knuckle (3) against folding down
6	Unscrew nut (4) and detach upper transverse control arm (2) at steering knuckle (3)	The ball head must be counterheld and a impact wrench/driver must not be used. Otherwise the ball head or steering knuckle (3) may be damaged.
		Nut, steering knuckle to transverse control arm	*BA33.20-P-1006-01U
7	Remove support from working area and lower vehicle	MODEL 205 with CODE 489 (AIRMATIC) Do not lower vehicle too far.
8	Remove cover (5) or service flap (6)
9	Unscrew nuts (7) and place engine fuse and relay module (K40/8) to one side	When removing the upper transverse control arm (2) on left side.
10	Unclip coolant container (8)	When removing upper transverse control arm (2) on right side.
11	Unscrew nuts (9) on corresponding side of vehicle	Nut, transverse control arm to body	*BA33.20-P-1005-01U
12	Unscrew screws/bolts (10) and remove upper transverse control arm (2)
	Check
13	Check elastomer bearing and ball-and-socket-type joint from upper transverse control arm (2) for signs of wear and damage	When reinstalling upper transverse control arm (2). Perform visual inspection and replace transverse control arm (2) if necessary.
14	Install in the reverse order
