Remove/install track rod - AR46.40-P-0200LW

MODEL 205

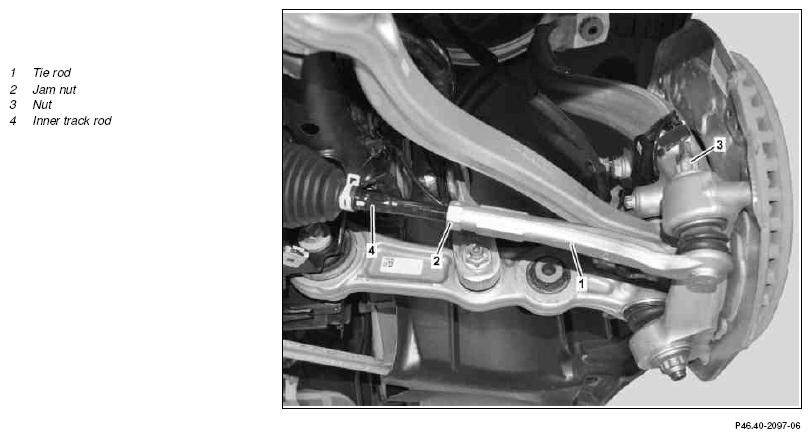

Fig 1: Track Rod Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Detach front left or front right complete wheel		AR40.10-P-1101A
2	Counterhold tie rod (1) and release jam nut (2)	It is essential to counterhold the tie rod (1). Otherwise the tie rod (1) will be damaged. Once released. do not turn jam nut (2) any more on the tie rod (1).
		Jam nut, tie rod to inner tie rod	*BA46.40-P-1002-01P
3	Unscrew nut (3) and remove tie rod (1) from steering knuckle
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
		The ball head must be counterheld and a impact wrench/driver must not be used. Otherwise the ball head or steering knuckle may be damaged.
		Self-locking nut, tie rod to steering knuckle	*BA46.40-P-1001-01P
4	Unscrew tie rod (1) from inner tie rod (4)
5	Install in the reverse order
6	Perform wheel alignment check		AR40.20-P-0200LW

TIE ROD

Number	Designation			MODEL 205
BA46.40-P-1001-01P	Self-locking nut, tie rod to steering knuckle	Stage 1	Nm	90
		Stage 2	∠°	90

TIE ROD

Number	Designation		MODEL 205
BA46.40-P-1002-01P	Jam nut, tie rod to inner tie rod	Nm	65
