Remove/install expansion valve - AR83.30-P-5520LW

MODEL 205

MODEL 253

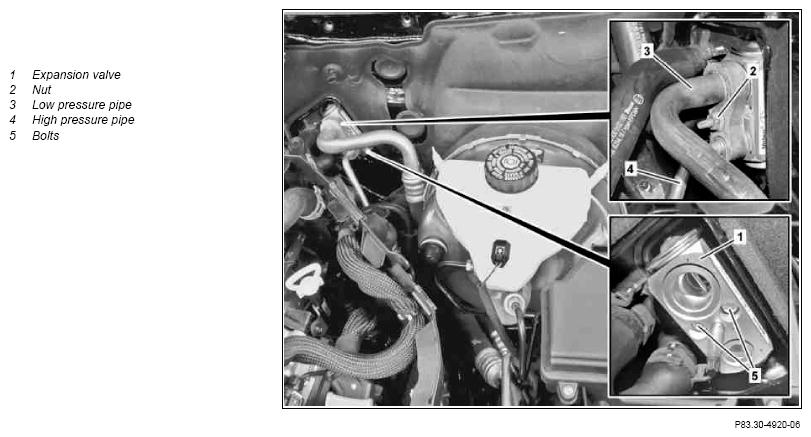

Fig 1: Expansion Valve Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Protect air conditioning circuit and components from moisture when carrying out repair work		AH83.30-P-0005-01A
	Procedure for a damaged or leaky air conditioning system		AH83.30-N-0004-01A
	Notes on handling refrigerant R134a		AH83.30-N-0003-01A
	Remove/install
1	Drain air conditioning system		AR83.30-P-1760LW
2	Remove windshield wiper system		AR82.30-P-6400LW
3	Unscrew nut (2)	Nut, refrigerant line to expansion valve	*BA83.30-P-1003-01Q
4	Remove low-pressure line (3) and high-pressure line (4) from expansion valve (1) and seal openings with suitable stop plugs	Install new seals.
		Record plug	Figure
5	Remove screws/bolts (5), remove expansion valve (1) and seal openings with suitable stop plugs	If the thread of screws/bolts (5) does not engage, remove threaded plate using extraction hook, hold in position and screw in screws/bolts (5) alternately.
		Bolt, expansion valve to retaining plate	*BA83.30-P-1005-01Q
		Record plug	Figure
		Extraction hook	Figure
6	Install in the reverse order

AIR CONDITIONING

Number	Designation		Model 205	Model 253
BA83.30-P-1003-01Q	Nut, refrigerant line to expansion valve	Nm	12	12

AIR CONDITIONING

Number	Designation		Model 205	Model 253
BA83.30-P-1005-01Q	Bolt, expansion valve to retaining plate	Nm	7	7

Fig 2: Identifying Record Plug (129 589 00 91 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Extraction Hook (140 589 02 33 00)

Courtesy of MERCEDES-BENZ USA
