Remove/install wiper system - AR82.30-P-6400LW

MODEL 205

MODEL 253

Shown on model 205

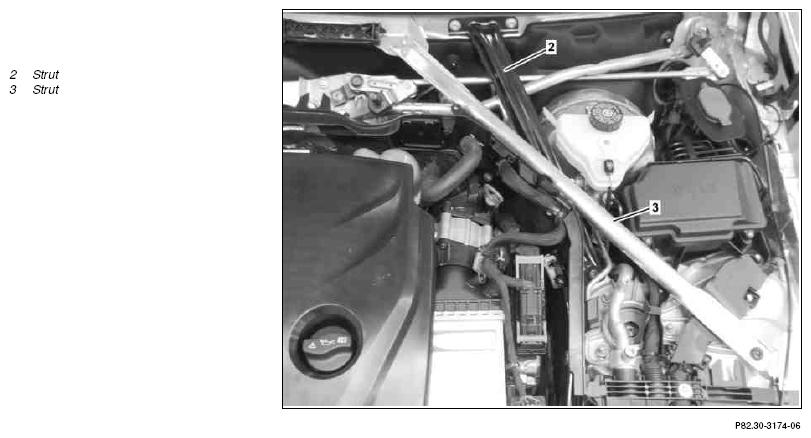

Fig 1: Wiper System Remove/Install Components - Shown On Model 205 (1 Of 4)

Courtesy of MERCEDES-BENZ USA

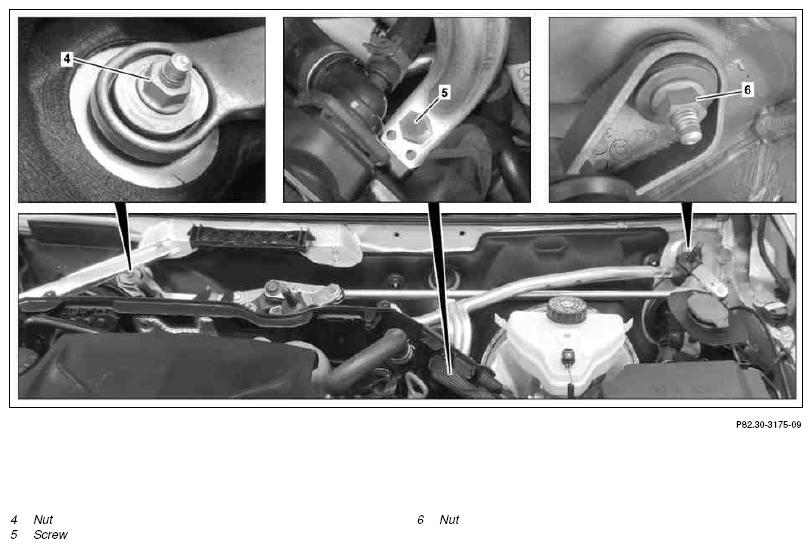

Fig 2: Wiper System Remove/Install Components - Shown On Model 205 (2 Of 4)

Courtesy of MERCEDES-BENZ USA

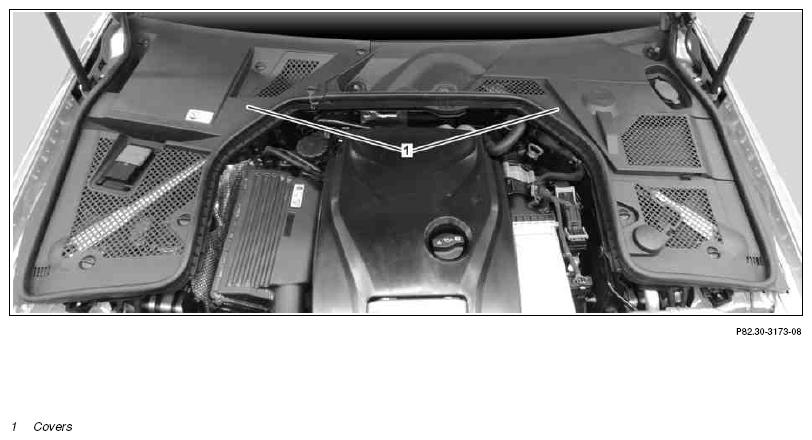

Fig 3: Wiper System Remove/Install Components - Shown On Model 205 (3 Of 4)

Courtesy of MERCEDES-BENZ USA

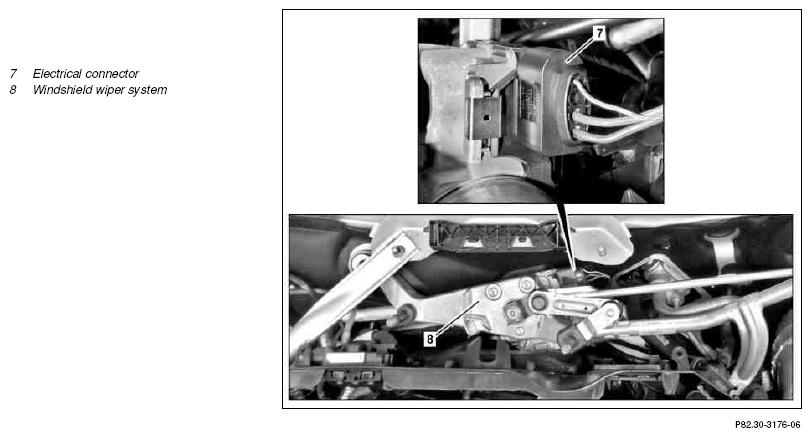

Fig 4: Wiper System Remove/Install Components - Shown On Model 205 (4 Of 4)

Courtesy of MERCEDES-BENZ USA

	Injury hazard from pinching and crushing, in extreme cases extremities can even be cut off when caught in windshield wiper mechanism.	Always remove ignition key when working on windshield wiper mechanism.	AS82.30-Z-0001-01A
	Remove/install
1	Remove wiper arms		AR82.30-P-6100LW
2	Remove covers (1)
3	Remove strut (2)	Screw/bolt, lower strut to firewall	*BA62.30-P-1004-02K
		Screw/bolt, lower strut to suspension strut tower mounting bracket	*BA62.30-P-1003-02K
4	Remove strut (3)	Nut, upper struts to firewall	*BA62.30-P-1002-02K
		Screw/bolt, upper struts to suspension strut tower mounting bracket	*BA62.30-P-1001-02K
5	Unscrew nuts (4, 6)	Nut, windshield wiper system to body	*BA82.30-P-1003-01M
6	Remove screw (5)	Screw/bolt, windshield wiper system to bracket	*BA82.30-P-1002-01M
7	Raise windshield wiper system (8) until electrical plug (7) is accessible
8	Release and disconnect electrical plug (7)
9	Remove windshield wiper system (8)
10	Install in the reverse order
	Check
11	Check, adjust windshield wiper system		AR82.30-P-6000LW

FROND END WITH FRONT REINFORCEMENT

Number	Designation		Model 205	Model 253
BA62.30-P-1001-02K	Screw/bolt, upper struts to suspension strut tower mounting bracket	Nm	50	50

FROND END WITH FRONT REINFORCEMENT

Number	Designation		Model 205	Model 253
BA62.30-P-1002-02K	Nut, upper struts to firewall	Nm	23	23

FROND END WITH FRONT REINFORCEMENT

Number	Designation		Model 205	Model 253
BA62.30-P-1003-02K	Screw/bolt, lower strut to suspension strut tower mounting bracket	Nm	50	50

FROND END WITH FRONT REINFORCEMENT

Number	Designation		Model 205	Model 253
BA62.30-P-1004-02K	Screw/bolt, lower strut to firewall	Nm	23	23

WINDSHIELD WIPER

Number	Designation		Model 205	Model 253
BA82.30-P-1002-01M	Screw/bolt, windshield wiper system to bracket	Nm	11	11

WINDSHIELD WIPER

Number	Designation		Model 205	Model 253
BA82.30-P-1003-01M	Nut, windshield wiper system to body	Nm	20	20
