Remove/install air conditioner housing - AR83.30-P-5200LW

MODEL 205

MODEL 253

Shown on MODEL 205 with CODE 581 (Automatic air conditioning)

	Risk of injury  to skin and eyes suffering scalding from contact with hot coolant spray. Risk of poisoning  from swallowing coolant.	Do not open cooling system unless coolant temperature is below 90 °C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses.	AS20.00-Z-0001-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on coolant		AH20.00-N-2080-01A
	Remove/install
1	Remove low and high pressure line from expansion valve		AR83.30-P-5520LW
2	Carefully open cap at coolant expansion reservoir, release pressure from coolant system and close cap again

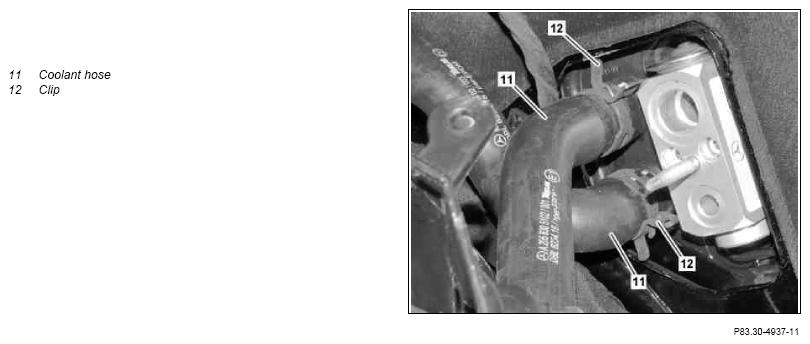

3	Pinch off coolant hoses (11) using pinch-off pliers
4	Release clamps (12) from coolant hoses (11) and pull back	Replace clamps (12).
		Hose clamp pliers	Figure
5	Remove coolant hoses (11) from heat exchanger	Collect escaping coolant.
6	Seal heat exchanger connections	Record plug	Fig 8
7	Remove dashboard		AR68.10-P-1000LW

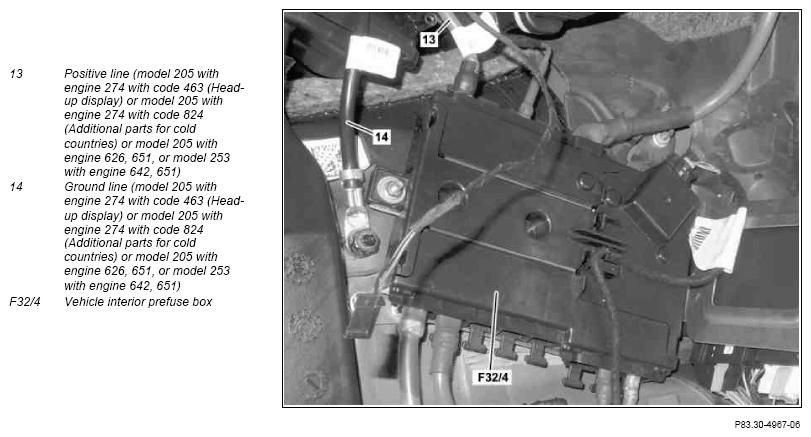

8	Disconnect positive line (13) from vehicle interior prefuse box (F32/4)	Model 205 with engine 274 with code 463 (Head-up display) Model 205 with engine 274 with code 824 (Add.parts for countries w.low temperatures) Model 205 with engine 626, 651 Model 253 with engine 642, 651
			AR54.15-P-1350LW
9	Disconnect ground line (14)	Model 205 with engine 274 with code 463 (Head-up display) Model 205 with engine 274 with code 824 (Add.parts for countries w.low temperatures) Model 205 with engine 626, 651 Model 253 with engine 642, 651
		Ground point/PTC heater booster	*BA00.19-P-1020-01E
10	Remove cross member under instrument panel	Bolt, cross member to A-pillar	*BA68.10-P-1001-02F
		Bolt, cross member to firewall below windshield	*BA68.10-P-1002-02F
		Bolt, cross member strut to side of transmission tunnel	*BA68.10-P-1004-02F

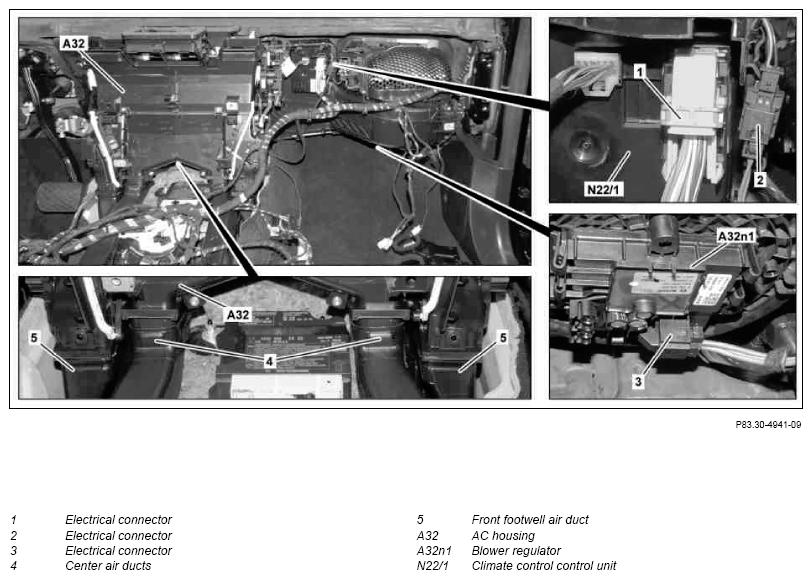

11	Disconnect electrical connectors (1, 2) from climate control, control unit (N22/1)
12	Disconnect electrical connector (3) from the blower regulator (A32n1)
13	Extend center air ducts (4) at air conditioner housing (A32)
14	Extend front footwell air ducts (5) at air conditioner housing (A32)

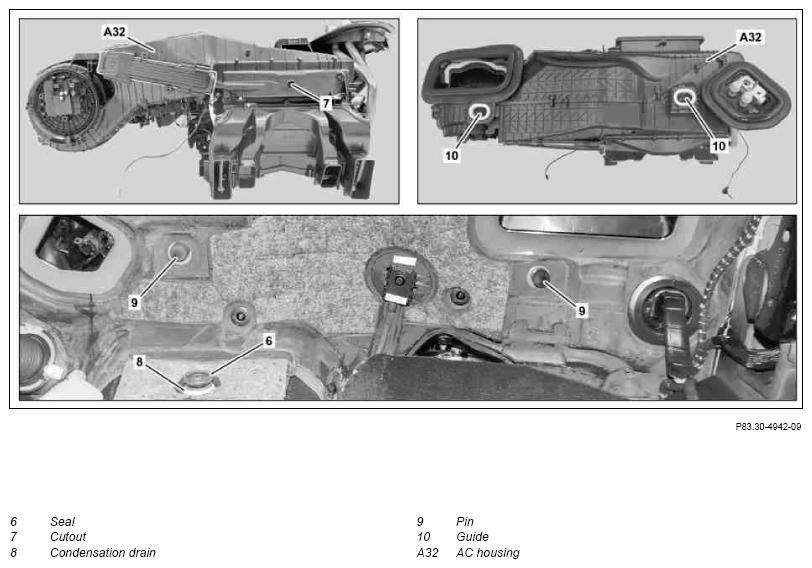

15	Carefully remove air conditioner housing (A32) and take off towards passenger side	Ensure correct seating of seal (6) between notch (7) of air conditioner housing (A32) and condensation drain (8). Otherwise condensation can get into the vehicle interior. Helper required. Make sure that studs (9) are seated in the guides (10).
16	Install in the reverse order
17	Pour in coolant and bleed engine cooling system	Model 205 Model 253
		Model 205 with engine 177, 274, 276, 651 Model 253 with engine 274, 276, 642, 651 Use clean coolant again.	AR20.00-P-1142-04A
		Coolant mixing ratio	*BF20.00-P-1001-04A
		Electric vacuum pump	Fig 6
		NTKL Adaption	Fig 7
		Cooler vacuum filling device	Fig 9
		Test cap	Fig 5
	Check
18	Check engine cooling system for leaktightness	Model 205 Model 253
		Model 205 with engine 177, 274.9, 276.8, 626, 651 Model 253 with engine 651	AR20.00-P-1010LW
	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
19	Perform an engine test run and check engine cooling system for proper operation

Number	Designation			Model 205	Model 253
BA00.19-P-1020-01E	Ground point/PTC heater booster	W15/9	Nm	15	15

Number	Designation		Model 205	Model 253
BA68.10-P-1001-02F	Bolt, cross member to A-pillar	Nm	25	25

Number	Designation		Model 205	Model 253
BA68.10-P-1002-02F	Bolt, cross member to firewall below windshield	Nm	25	25

Number	Designation		Model 205	Model 253
BA68.10-P-1004-02F	Bolt, cross member strut to side of transmission tunnel	Nm	30	30

Number	Designation			ENGINE ALL
BF20.00-P-1001-04A	Coolant mixing ratio	Antifreeze/water	up to	-37°C 50/50
		Antifreeze/water	up to	-45°C 55/45
		Specification		Coolant (Specification 310.1). See https://bevo.mercedes-benz.com/index.php?language_id=1
