Remove/install desiccant cartridge - AR83.30-P-6521LW
MODEL 205
MODEL 253
MODIFICATION NOTES
| 23.4.15 | Work procedure changed. |

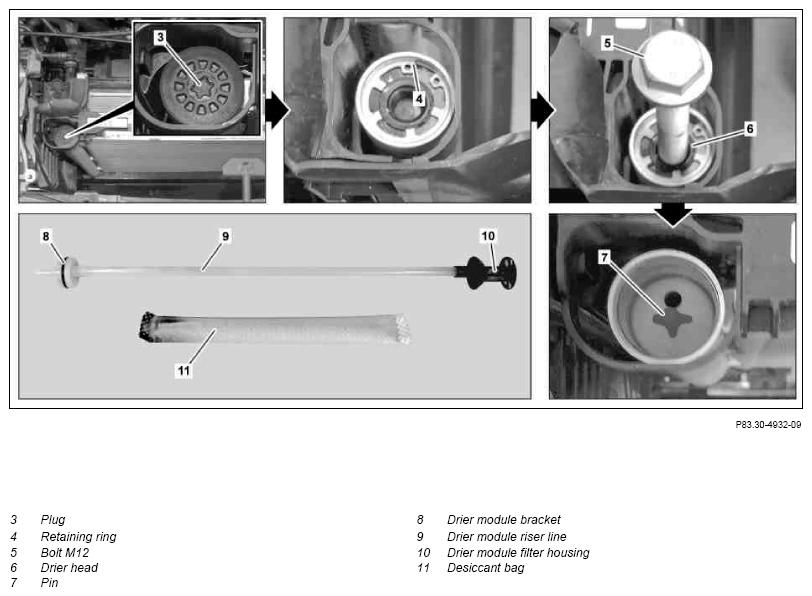

Shown in installed condition
| Risk of explosion caused by welding or soldering work on closed air conditioning system. Risk of poisoning caused by inhaling overheated refrigerant vapors. Risk of injury to skin and eyes caused by contact with liquid refrigerant. | Never perform welding work on or near a closed air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated areas. Carry out repair work on the air conditioning system circuit only after the system has been drained. | AS83.00-Z-0001-01A | |
| Procedure for a damaged or leaky air conditioning system | AH83.30-N-0004-01A | ||
| Protect air conditioning circuit and components from moisture when carrying out repair work | AH83.30-P-0005-01A | ||
| Notes on handling refrigerant R134a | AH83.30-N-0003-01A | ||
| Remove/install | |||
| 1 | Remove condenser | Model 205 Model 253 |
|
| Model 205 with engine 274, 276, 651 Model 253 with engine 274, 276, 642, 651 |
AR83.30-P-6540LW | ||
| Model 205 with engine 177 | AR83.30-P-6540LWA | ||
| 2 | Unscrew plug (3) | *BA83.30-P-1007-01Q | |
| 3 | Remove retaining ring (4) | ||
| 4 | Screw screw/bolt M12 (5) into drier head (6) and remove drier head (6) | ||
| 5 | Use suitable pliers to pull out drier module bracket (8) at pin (7) | ||
| 6 | Remove drier module riser line (9) together with drier module filter housing (10) | Apply new desiccant bag (11) on drier module riser line (9). |
|
| 7 | Install in the reverse order |
AIR CONDITIONING
| Number | Designation | Model 205 | Model 253 | |
|---|---|---|---|---|
| BA83.30-P-1007-01Q | Plug to condenser | Nm | 4 | 4 |
