Remove/install coolant circuit feed line of turbochargers - AR20.20-P-1100MNA

ENGINE 176 in MODEL 463

ENGINE 177 in model 205

Engine 178 in model 190

Shown on ENGINE 177

Fig 1: Coolant Circuit Feed Line Of Turbochargers Remove/Install Component - Shown On Engine 177 (1 Of 4)

Courtesy of MERCEDES-BENZ USA

Fig 2: Coolant Circuit Feed Line Of Turbochargers Remove/Install Component - Shown On Engine 177 (2 Of 4)

Courtesy of MERCEDES-BENZ USA

Fig 3: Coolant Circuit Feed Line Of Turbochargers Remove/Install Component - Shown On Engine 177 (3 Of 4)

Courtesy of MERCEDES-BENZ USA

Fig 4: Coolant Circuit Feed Line Of Turbochargers Remove/Install Component - Shown On Engine 177 (4 Of 4)

Courtesy of MERCEDES-BENZ USA

	Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Remove/install
1	Drain coolant from low-temperature circuit	Engine 176 in model 463	AR09.41-P-6834MNF
		Engine 178 in model 190	AR09.41-P-6834MNB
		Engine 177 in model 205	AR09.41-P-6834MNA
2	Remove left and right air filter housing	Engine 176 in model 463 Engine 177 in model 205	AR09.10-P-1150MNA

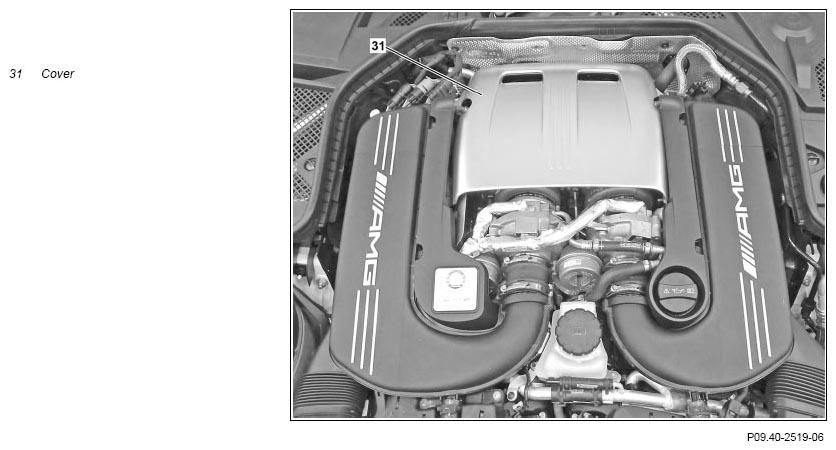

3	Remove cover (31)	Check for correct seating of the cover (31).

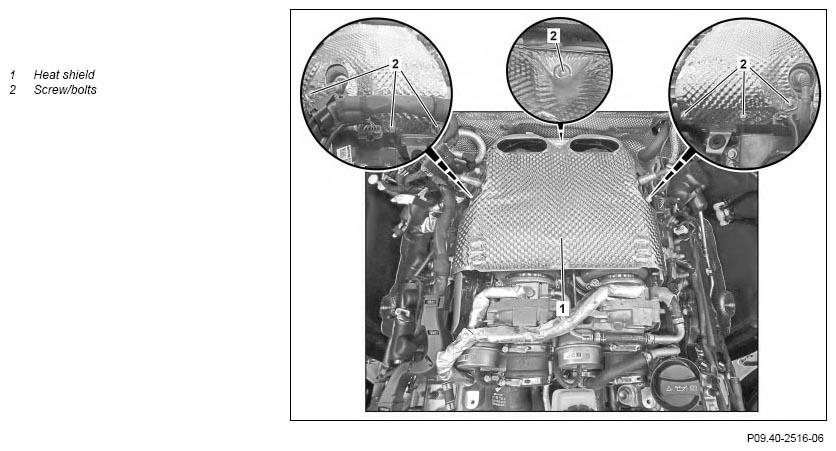

4	Remove screw/bolts (2) and remove heat shield (1) upwards	Bolt, upper heat shield to bracket/side heat shield	*BA09.40-P-1006-01ZA

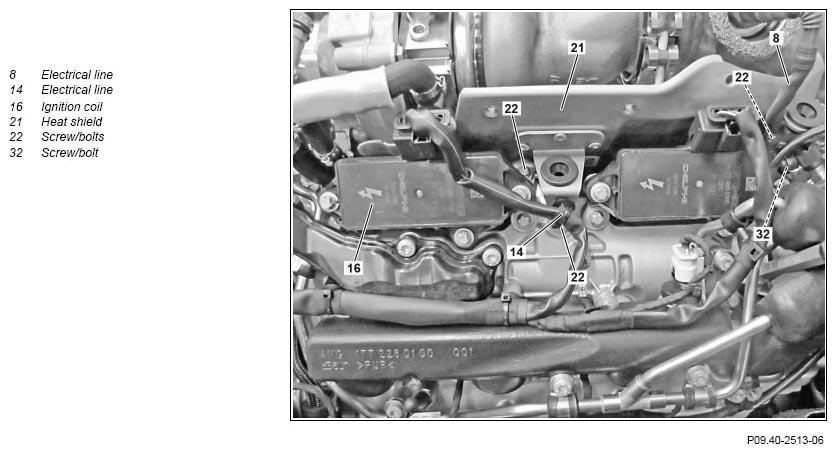

5.1	Unclip electrical lines (8, 14) on heat shield (21)	Engine 177 in model 205
5.2	Unclip electrical line (8) on heat shield (21)	Engine 178 in model 190
5.3	Unclip electrical line (14) on heat shield (21)	Engine 176 in model 463
6	Remove the ignition coil (16)	Engine 178 in model 190	AR15.12-P-2003MNB
		Engine 176 in model 463 Engine 177 in model 205	AR15.12-P-2003MNA
7	Remove screw/bolt (32)	Engine 176 in model 463 Engine 177 in model 205
8	Remove screw/bolts (22) and remove heat shield (21) upwards	Bolt, side heat shield to cylinder head cover	*BA09.40-P-1007-01ZA
9	Remove left intake air duct downstream of the left air filter housing	Engine 178 in model 190
10	Detach boot on left ATL and place to one side		AR09.40-P-6026MNA
11	Remove coolant circuit return line with coolant circuit vent line		AR20.20-P-1101MNA

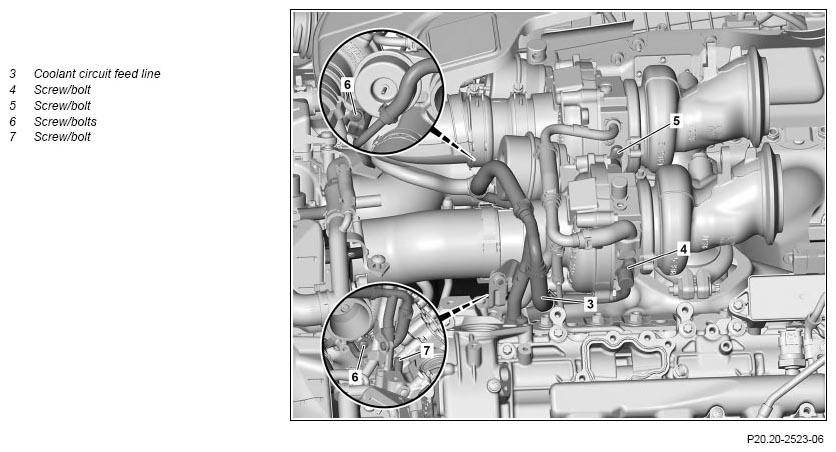

12	Remove screw/bolts (6) from ATLs	Bolt, coolant line to turbocharger/cylinder head	*BA09.40-P-1004-01ZA
13	Remove screw/bolts (4, 5) from ATLs	Bolt, coolant line to turbocharger/cylinder head	*BA09.40-P-1004-01ZA
14	Remove screw/bolt (7) on cylinder head and remove coolant circuit feed line (3) upwards	Replace seals. Bolt, coolant line to turbocharger/cylinder head	*BA09.40-P-1004-01ZA
15	Install in the reverse order
	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
16	Perform an engine test run and check engine for leaktightness
