Remove/install 360° camera in outside mirror - AR54.30-P-3002LW
MODEL 205, 253 with CODE 501 (360° camera)
MODIFICATION NOTES
| 19.8.15 | Data on commissioning and calibration updated. | Operation steps 13, 14.1 and 14.2 |
Shown on left outside mirror (M21/1)
| Remove/install | |||
| 1 | Remove left outside mirror (M21/1) or right outside mirror (M21/2) | AR88.70-P-9000LW | |
| 2 | Remove covering on outside rear-view mirror | AR88.70-P-9040LF | |
| 3 | Loosen telephone antenna and place to one side with connected line | Model 205, 253 with code 348 (Emergency call/assistant system) with code 501 (360° camera) Model 205.0/2, 253 with code 386 (Comfort telephony) with code 501 (360° camera) Model 205.0/2 with code 347 (Mercedes-Benz emergency call system) with code 501 (360° camera) |
|
| AR82.62-P-0011LW | |||

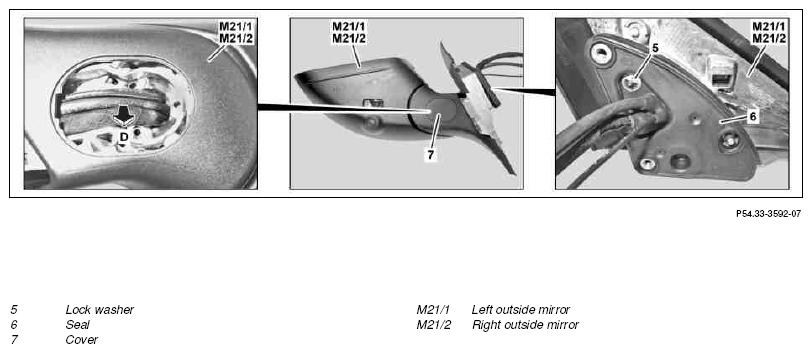

| 4 | Remove circlip (5) | ||
| 5 | Coat seal (6) in area of electrical lines with suitable lubricant and pull approx. 15 cm over electrical lines | ||
| 6 | Remove cover (7) below at left outside mirror (M21/1) or right outside mirror (M21/2) | ||
| 7 | Pull out electrical lines approx. 15 cm out of left outside mirror (M21/1) or right outside mirror (M21/2) (arrow D) | ||

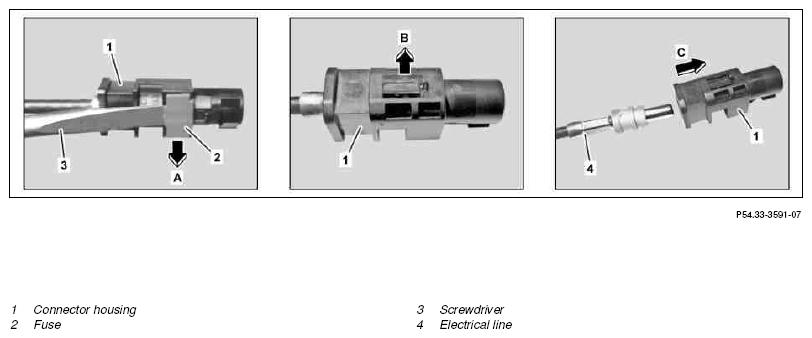

| 8 | Remove electrical fuse (2) at connector housing (1) using a suitable screwdriver (3) (arrow A) | ||
| 9 | Unlock connector housing (1) (arrow B) and pull off from electrical line (4) (arrow C) | Fig 4 | |

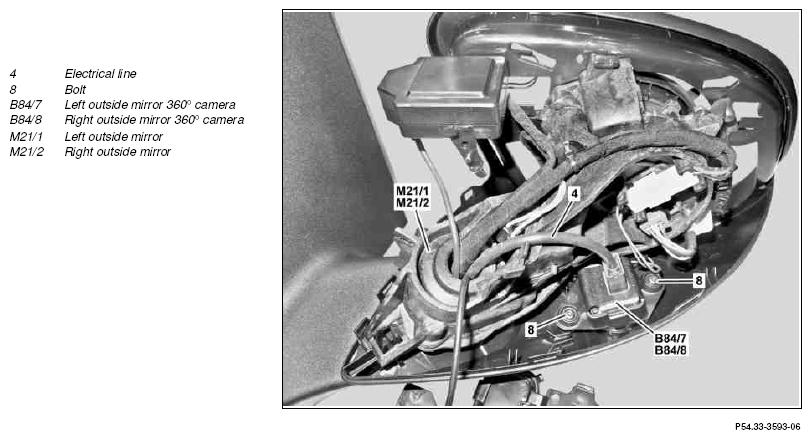

| 10 | Remove bolt (8) | ||
| 11 | Pull electrical line (4) completely out of seal (6) and the left outside mirror (M21/1) or right outside mirror (M21/2), and remove camera for left outside mirror 360° camera (B84/7) or the camera for the right outside mirror 360° camera (B84/8) | ||
| 12 | Install in the reverse order | ||
| 13 | Commission camera for left outside mirror 360° camera (B84/7) or camera for right outside mirror 360° camera (B84/8) using diagnostic system | If the camera for the left outside mirror 360° camera (B84/7) or the camera for the right outside mirror 360° camera (B84/8) was replaced. | |
| AD00.00-P-2000-04B | |||
| 14.1 | Calibrate camera for left outside mirror 360° camera (B84/7) or camera for right outside mirror 360° camera (B84/8) using diagnostic system | If the camera for the left outside mirror 360° camera (B84/7) or the camera for the right outside mirror 360° camera (B84/8) was removed. | |
| AD00.00-P-2000-04B | |||
| 14.2 | Calibrate all the cameras for the 360° camera system using the diagnostic system | If the camera for the left outside mirror 360° camera (B84/7) and the camera for the right outside mirror 360° camera (B84/8) were removed. | |
| AD00.00-P-2000-04B |
