Check wiper arms and adjust - AR82.30-P-6000LW
MODEL 205
MODEL 253
Shown on model 205
| Injury hazard from pinching and crushing, in extreme cases extremities can even be cut off when caught in windshield wiper mechanism. | Always remove ignition key when working on windshield wiper mechanism. | AS82.30-Z-0001-01A | |
| Check | |||
| 1 | Move windshield wiper system to parked position | ||
| 2 | Switch off ignition and remove transmitter key | ||
| 3 | Manually move windshield wiper system to reversing position | ||

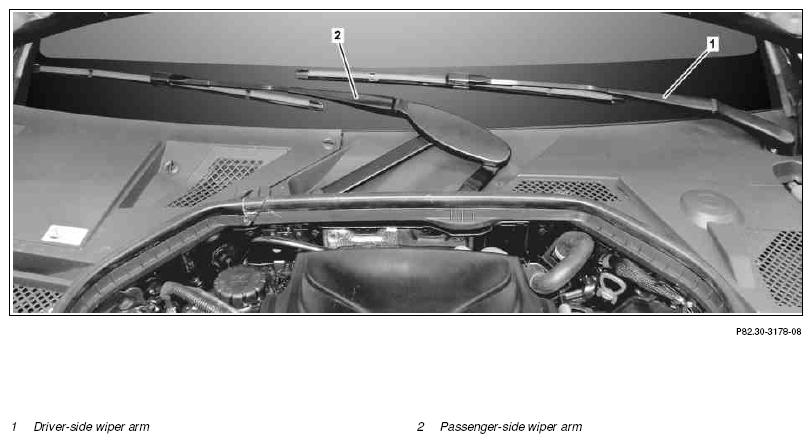

| 4 | Remove wiper blades | When working on raised driver-side wiper arm (1) or passenger-side wiper arm (2), ensure that they do not fall onto the windshield. Otherwise windshield will be damaged. |
|
| Clean | |||
| 5 | Clean wiper blade fixtures on driver-side wiper arm (1) and passenger-side wiper arm (2) using a clean cloth | ||
| 6 | Check angle of incidence of driver-side wiper arm (1) and passenger-side wiper arm (2) relative to windshield | AR82.30-P-6000-01LW | |
| Notes on wiper arm adjustment | AH82.30-P-0001-01A | ||
When changing from reversing position to park position, make sure that driver-side wiper arm (1) and passenger-side wiper arm (2) do not make direct contact with windshield. Otherwise windshield will be damaged. |
|||
| Angle of incidence of passenger-side wiper arm in parked position | *BE82.30-P-1004-01M | ||
| Angle of incidence of driver-side wiper arm in parked position | *BE82.30-P-1003-01M | ||
| Angle of incidence of passenger-side wiper arm in reversing position | *BE82.30-P-1002-01M | ||
| Angle of incidence of driver-side wiper arm in reversing position | *BE82.30-P-1001-01M | ||
| Fig 4 | |||
| Fig 3 | |||
| Adjust | |||
| 7 | Adjust angle of incidence of driver-side wiper arm (1) or passenger-side wiper arm (2) in parked position | If the test values deviate from the tolerance range in the reversing position or in the parked and reversing position. | |
| AR82.30-P-6100-01LW | |||
| Angle of incidence of driver-side wiper arm in parked position | *BE82.30-P-1003-01M | ||
| Angle of incidence of passenger-side wiper arm in parked position | *BE82.30-P-1004-01M | ||
| Fig 4 | |||
| Fig 3 | |||
| 8 | Adjust windshield wiper system | If the test values of the driver-side wiper arm (1) and the passenger-side wiper arm (2) deviate from the tolerance range in the parked position. | |
| AR82.30-P-6400-01LW | |||
| Angle of incidence of passenger-side wiper arm in parked position | *BE82.30-P-1004-01M | ||
| Angle of incidence of driver-side wiper arm in parked position | *BE82.30-P-1003-01M | ||
| *BA82.30-P-1004-01M | |||
| Fig 4 | |||
| Fig 3 | |||
| Fig 2 | |||
| 9 | Install wiper blades |
TEST AND ADJUSTMENT VALUES FOR WIPER ARMS
| Number | Designation | Model 205 | Model 253 | ||
|---|---|---|---|---|---|
| BE82.30-P-1001-01M | Angle of incidence of driver-side wiper arm in reversing position | Left-hand drive vehicle | ∠° | -2, 1...-6, 1 | -1, 2...-5, 2 |
| Right-hand drive vehicle | ∠° | +2, 1...+ 6, 1 | +1, 2...+5, 2 | ||
TEST AND ADJUSTMENT VALUES FOR WIPER ARMS
| Number | Designation | Model 205 | Model 253 | ||
|---|---|---|---|---|---|
| BE82.30-P-1002-01M | Angle of incidence of passenger-side wiper arm in reversing position | Left-hand drive vehicle | ∠° | -2, 1...-6, 1 | -1, 8...-5, 8 |
| Right-hand drive vehicle | ∠° | +2, 1...+ 6, 1 | +1, 8...+5, 8 | ||
TEST AND ADJUSTMENT VALUES FOR WIPER ARMS
| Number | Designation | Model 205 | Model 253 | ||
|---|---|---|---|---|---|
| BE82.30-P-1003-01M | Angle of incidence of driver-side wiper arm in parked position | Left-hand drive vehicle | ∠° | +3, 5...+ 7, 5 | +3, 4...+7, 4 |
| Right-hand drive vehicle | ∠° | -3, 5...-7, 5 | -3, 4...-7, 4 | ||
TEST AND ADJUSTMENT VALUES FOR WIPER ARMS
| Number | Designation | Model 205 | Model 253 | ||
|---|---|---|---|---|---|
| BE82.30-P-1004-01M | Angle of incidence of passenger-side wiper arm in parked position | Left-hand drive vehicle | ∠° | +3, 1...+7, 1 | +3, 0...+7, 0 |
| Right-hand drive vehicle | ∠° | -3, 1...-7, 1 | -3, 0...-7, 0 | ||
WINDSHIELD WIPER
| Number | Designation | Model 205 | Model 253 | |
|---|---|---|---|---|
| BA82.30-P-1004-01M | Screw/bolt, windshield wiper system bracket to partition wall | Nm | 11 | 11 |
