Remove/install telephone antenna splitter - AR82.70-P-8956LWR

MODEL 205, 253

with CODE 362 (HERMES LTE)

MODEL 205, 253

with CODE 379 (Telephone module with Bluetooth® (SAP profile))

MODEL 205, 253

with CODE 386 (Comfort telephony)

MODEL 205, 253

with CODE B24 (remote control for auxiliary heater)

MODEL 205

with CODE 344 (Antenna preinstallation for taxi)

MODEL 253

with CODE 360 (HERMES UMTS)

Shown with CODE 386 (Comfort telephony)

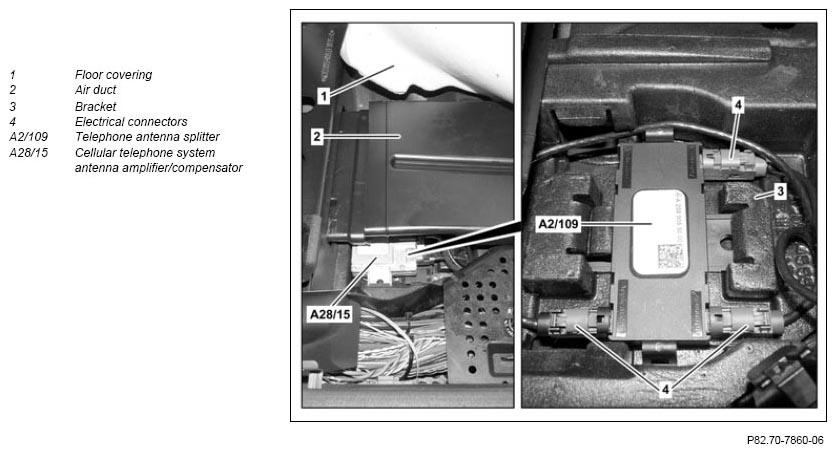

Fig 1: Telephone Antenna Splitter Remove/Install Components - Shown With Code 386

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove right front door sill	Model 205.0/1/2, 253	AR68.30-P-4100LW
		Model 205.3/4	AR68.30-P-4100CLW
2	Release right front seat and tilt backwards	Model 205.0/1/2/3, 253	AR91.10-P-1000LW
		Model 205.4 Do not disconnect electrical connections.	AR91.10-P-1000LWR
3	Release front right floor covering (1)
4	Release air duct (2)
5	Remove cellular telephone system antenna amplifier/compensator (A28/15) from bracket (3) and place to one side with lines connected	If installed.
6	Pull telephone antenna splitter (A2/109) out of bracket (3) and disconnect electrical connectors (4)	The number of electrical connections (4) may vary depending on the vehicle equipment involved.
7	Install in the reverse order
