Remove/install door sill molding - AR68.30-P-4100CLW

MODEL 205.3/4

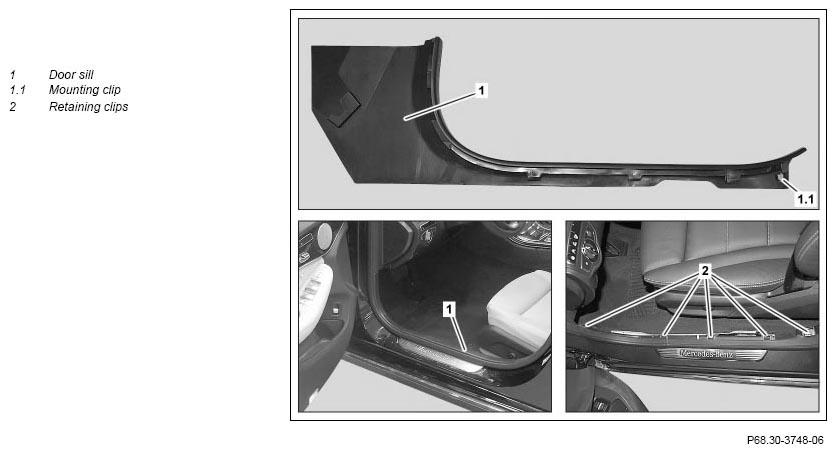

Fig 1: Door Sill Molding Remove/Install Components

Courtesy of MERCEDES-BENZ TRUCK CO., INC.

	Remove/install
1	Unclip retaining clip (1.1) on door sill (1) below B-pillar	Clip remover	Figure
2	Detach door sill (1) from retaining clips (2) starting at B-pillar
3	Loosen door sill (1) from guide on A-pillar and remove
4	Install in the reverse order

Fig 2: Identifying Clip Remover (452 589 01 63 00)

Courtesy of MERCEDES-BENZ TRUCK CO., INC.
