Remove/install front seat - AR91.10-P-1000LWR

MODEL 205.4

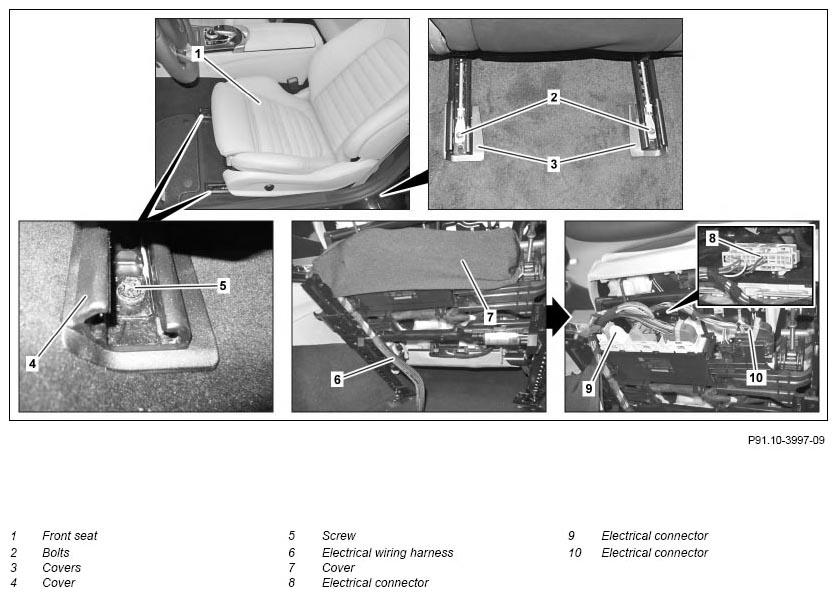

Fig 1: Front Seat Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Risk of injury  during testing and repair operations related to pyrotechnical components	Do not expose pyrotechnical components to temperatures above 100 °C or 212 °F. Disconnect current supply when working on such components.	AS91.00-Z-0008-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on performing repair, body work and welding on vehicles with airbags and RTE units		AH91.00-P-0002-01M
	Information, assessment and legal requirements when working with, handling and storing pyrotechnical components		AH91.00-Z-0000-10A
	Remove/install
1	Switch on ignition
2	Completely open soft top
3	Move steering column to foremost and topmost position	When removing driver seat.
4	Move front seat (1) backwards and all the way to top
5	Remove bolts (5)	Bolt, front seat to vehicle floor	*BA91.10-P-1001-01T
6	Adjust front seat (1) to front
7	Remove bolts (2)	Bolt, front seat to vehicle floor	*BA91.10-P-1001-01T
8	Disconnect battery ground line		AR54.10-P-0003LW
9	Tilt back front seat (1)
10	Remove cover (7)
11	Unclip electrical wiring harness (6) at seat frame
12	Disconnect electrical connectors (8, 9, 10)	The quantity depends on the vehicle equipment.
13	Cover center console, steering wheel, door sill and door sill molding
	000 588 08 98 00 Cover		WS98.00-P-0014B
14	Remove front seat (1) from vehicle, put down and secure to prevent it from tipping over	Carefully remove front seat (1) from vehicle. Otherwise components of the vehicle may be damaged. Helper required. Ensure that lock pins of guide rails in vehicle floor are seated correctly. Ensure that covers (3, 4) are seated correctly.
15	Remove covers (3, 4)	When carrying out other work on the front seat (1).
16	Install in the reverse order

FRONT SEATS

Number	Designation		Model 205
BA91.10-P-1001-01T	Bolt, front seat to vehicle floor	Nm	50
