Remove/install rear tail lamp unit - AR82.10-P-4731CLW
MODEL 205.3/4

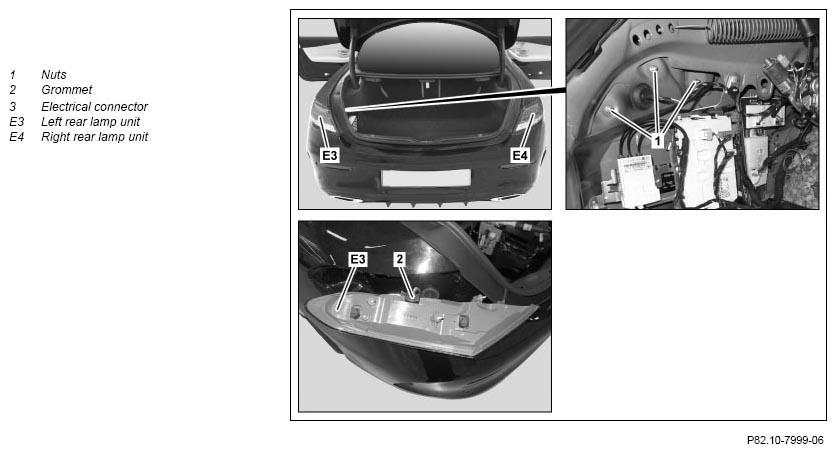

Shown on model 205.3
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. | AS00.00-Z-0017-01A | |
| Notes on sensor system for trunk lid opening/closing | Model 205.3 with code P17 (KEYLESS-GO package) |
AH80.61-P-0001-01A | |
| Remove/install | |||
| 1 | Remove rear center assembly paneling | AR68.30-P-4785LW | |
| 2 | Release side paneling in area of left rear lamp unit (E3) or right rear lamp unit (E4) until nuts (1) are accessible | Model 205.3 | AR68.30-P-4800LW |
| Model 205.4 | AR68.30-P-4800LWR | ||
| 3 | Remove grommet (2) | ||
| 4 | Unscrew nuts (1) | ||
| 5 | Remove left rear lamp unit (E3) or right rear lamp unit (E4) until electrical connector (3) is accessible | ||
| 6 | Disconnect electrical connector (3) from left rear lamp unit (E3) or right rear lamp unit (E4) | ||
| 7 | Remove left rear lamp unit (E3) or right rear lamp unit (E4) | Carefully position left rear lamp unit (E3) or right rear lamp unit (E4). Otherwise adjacent parts may be damaged. |
|
| 8 | Install in the reverse order |
