Remove/install side paneling in trunk - AR68.30-P-4800LWR

MODEL 205.4

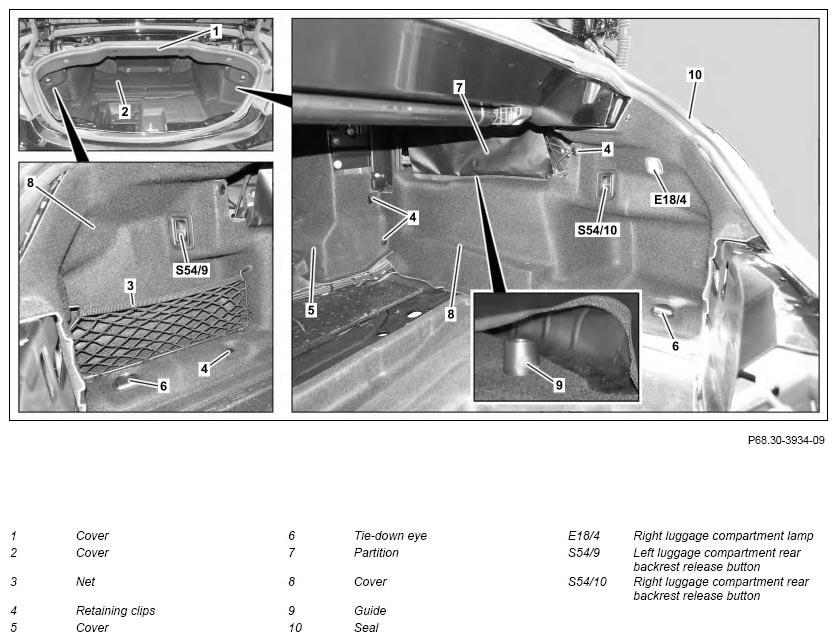

Fig 1: Trunk Side Paneling Remove/Install Components

Courtesy of MERCEDES-BENZ TRUCK CO., INC.

	Remove/install
1	Remove trim (1)
2	Remove cover (2)		AR68.30-P-4660LWR
3	Remove panel on rear center piece		AR68.30-P-4785LW
4	Remove lashing eye (6)	Screw/bolt for tie-down eye	*BA68.50-P-1001-03I
5	Separate partition (7) from paneling (8) and place behind guide (9)	Pay attention to installation position.
6	Remove retaining clips (4)	Clip remover	Figure
7	Loosen paneling (8)	Ensure that paneling (5), seal (10) as well as retaining bracket of net (3) are installed correctly. Hook paneling (8) into guide (9).
8	Disconnect electrical connector from left rear trunk backrest release button (S54/9) or right trunk rear backrest release button (S54/10)
9	Disconnect electrical connector from right trunk lamp (E18/4)	When removing right paneling (8).
10	Disconnect electrical connector from trailer hitch release switch	Model 205.4 with code 550 (Trailer coupling) When removing left paneling (8).
11	Remove cover (8)
12	Install in the reverse order
13	Check components for proper function

CARGO RETAINERS

Number	Designation		Model 205
BA68.50-P-1001-03I	Screw/bolt for tie-down eye	Nm	24
