Remove/install paneling on rear center section - AR68.30-P-4785LW

MODEL 205.0/1

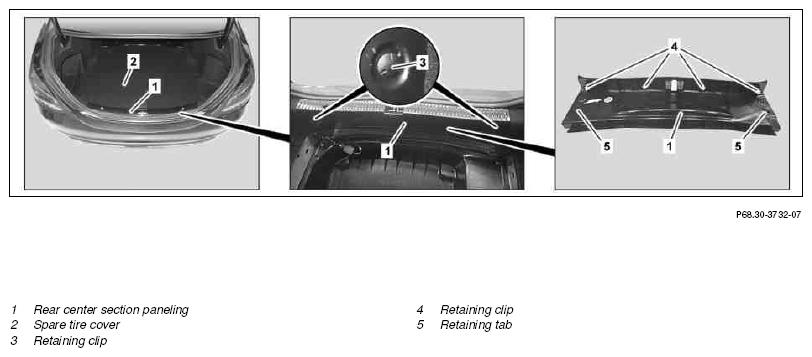

Fig 1: Rear Center Section Paneling Remove/Install Components

Courtesy of MERCEDES-BENZ TRUCK CO., INC.

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Notes on sensor system for trunk lid opening/closing		AH80.61-P-0001-01A
	Remove/install
1	Open luggage compartment lid
2	Lift spare wheel cover (2)
3	Remove retaining clips (3)	Clip remover	Figure
4	Unclip rear center section paneling (1) from retaining clips (4)	Mounting wedge	Figure
5	Remove rear center section paneling (1) upward	Insert rear center section paneling (1) with retaining tabs (5) into body.
6	Install in the reverse order

Fig 2: Identifying Clip Remover (452 589 01 63 00)

Courtesy of MERCEDES-BENZ TRUCK CO., INC.

Fig 3: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ TRUCK CO., INC.
