Remove/install front axle level sensors - AR82.10-P-0004LW

MODEL 205

Shown on left side of vehicle

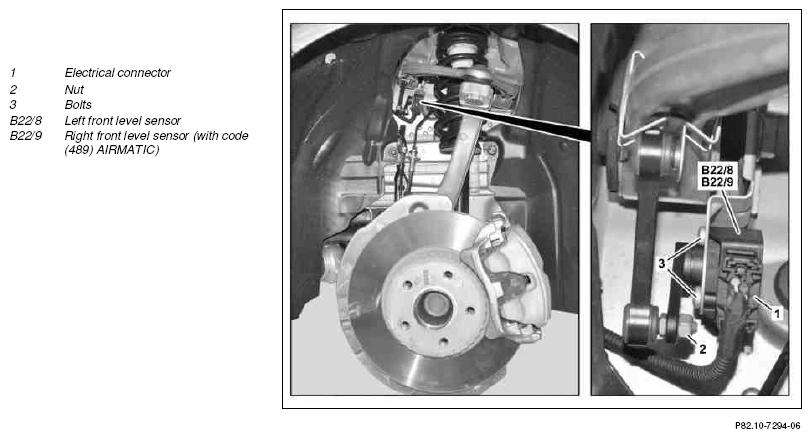

Fig 1: Front Axle Level Sensors Remove/Install Components - Shown On Left Side Of Vehicle

Courtesy of MERCEDES-BENZ USA

	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Remove/install
1	Remove left or right front wheel-and-tire assy		AR40.10-P-1101A
2	Disconnect electrical connector (1) at left front level sensor (B22/8) or at right front level sensor (B22/9)
3	Detach front fender liner in front area and push away toward front		AR88.10-P-1300LW
4	Unscrew nut (2) and unhook torsion bar linkage at left front level sensor (B22/8) or right front level sensor (B22/9)	Do not twist left front level sensor (B22/8) or right front level sensor (B22/9). Pay attention to installation position.
5	Remove screws/bolts (3) and remove left front level sensor (B22/8) or right front level sensor (B22/9)	Do not bend bracket.
6	Install in the reverse order
7	Calibrate left front level sensor (B22/8) or right front level sensor (B22/9) using diagnostic system	When replacing left front level sensor (B22/8) or right front level sensor (B22/9).
			AD00.00-P-2000-04B
8	Check headlamp adjustment	When replacing left front level sensor (B22/8) or right front level sensor (B22/9).
			AP82.10-P-8261CAA
