Remove/install fender liner in front fender - AR88.10-P-1300LW

MODEL 205

MODEL 253

Shown on fender liner 205

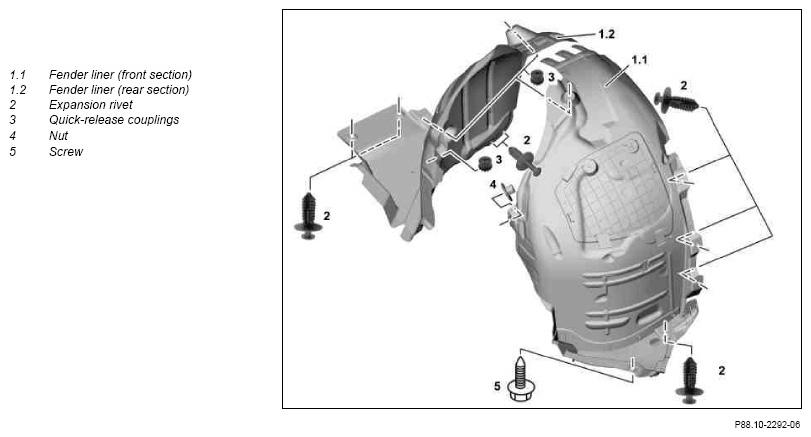

Fig 1: Front Fender Liner Remove/Install Components - Shown On Model 205

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Raise vehicle		AR00.60-P-1002LWG
2	Remove screw (5)
3	Remove expansion rivet (2)
4	Unscrew nut (4)
5.1	Unscrew quick-release coupling (3)	Model 205 Push quick-release coupling (3) against stop.
5.2	Unscrew the nuts	Model 253 Nuts are installed instead of quick-release couplings (3).
6	Pull outer edges of fender liner (front section) (1.1) and fender liner (rear section) (1.2) toward inside out of wheel arch lip and remove fender liner (front section) (1.1) and fender liner (rear section) (1.2)
7	Install in the reverse order
