Remove/install antenna amplifier/compensator for telephone - AR82.62-P-0005LW
MODEL 205, 253 as of model year 2017
with CODE 386 (Comfort telephony)
except CODE 379 (Telephone module with Bluetooth® (SAP profile))
MODEL 205, 253 up to model year 2017
with CODE 386 (Comfort telephony)
Shown on model 253.### 1# up to model year 2017 with code 386 (Comfort telephony)

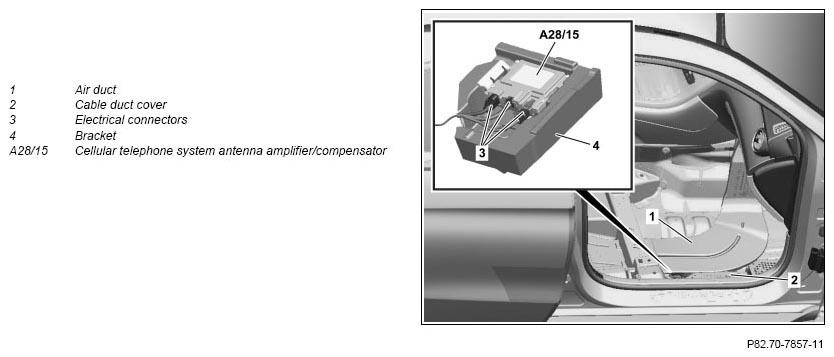

Fig 1: Telephone Antenna Amplifier/Compensator Remove/Install Components - Shown On Model 253.### 1#
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove right door sills | Model 205.3/4 as of model year 2017 with code 386 (Comfort telephony) except code 379 (Telephone module with Bluetooth® (SAP profile)) Model 205.3/4 up to model year 2017 with code 386 (Comfort telephony) |
AR68.30-P-4100CLW |
| Model 205.0/1/2, 253 as of model year 2017 with code 386 (Comfort telephony) except code 379 (Telephone module with Bluetooth® (SAP profile)) Model 205.0/1/2, 253 up to model year 2017 with code 386 (Comfort telephony) |
AR68.30-P-4100LW | ||
| 2 | Remove right front seat | Model 205.4 as of model year 2017 with code 386 (Comfort telephony) except code 379 (Telephone module with Bluetooth® (SAP profile)) Model 205.4 up to model year 2017 with code 386 (Comfort telephony) |
AR91.10-P-1000LWR |
| Model 205.0/1/2/3, 253 as of model year 2017 with code 386 (Comfort telephony) except code 379 (Telephone module with Bluetooth® (SAP profile)) Model 205.0/1/2/3, 253 up to model year 2017 with code 386 (Comfort telephony) |
AR91.10-P-1000LW | ||
| 3.1 | Remove driver's side floor covering | Model 205.### 2#, 253.### 2# as of model year 2017 with code 386 (Comfort telephony) except code 379 (Telephone module with Bluetooth® (SAP profile)) Model 205.### 2#, 253.### 2# up to model year 2017 with code 386 (Comfort telephony) |
AR68.20-P-2050LW |
| 3.2 | Remove passenger-side floor covering | Model 205.### 1#, 253.### 1# as of model year 2017 with code 386 (Comfort telephony) except code 379 (Telephone module with Bluetooth® (SAP profile)) Model 205.### 1#, 253.### 1# up to model year 2017 with code 386 (Comfort telephony) |
AR68.20-P-2070LW |
| 4 | Remove air duct (1) | ||
| 5 | Remove cable duct cover (2) | ||
| 6 | Remove cellular telephone system antenna amplifier/compensator (A28/15) from bracket (4) and disconnect electrical connectors (3) | ||
| 7 | Install in the reverse order |
