Remove/install Global Positioning System (GPS) antenna splitter - AR82.85-P-0007LW

MODEL 205, 253

with CODE 355 (Preinstallation for retrofitting navigation system)

with CODE 362 (HERMES LTE)

with CODE 830 (Vehicles for China, additional parts)

MODEL 205.0/2

with CODE 344 (Antenna preinstallation for taxi)

with CODE 355 (Preinstallation for retrofitting navigation system)

MODEL 205.0/2

with CODE 344 (Antenna preinstallation for taxi)

with CODE 360 (HERMES UMTS)

MODEL 205.0/2

with CODE 344 (Antenna preinstallation for taxi)

with CODE 362 (HERMES LTE)

MODEL 205.0/2

with CODE 344 (Antenna preinstallation for taxi)

with CODE 531 (COMAND APS)

Shown on model 205.0

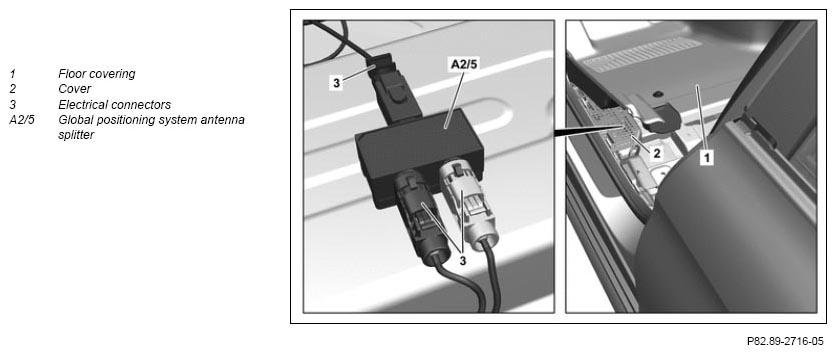

Fig 1: GPS Antenna Splitter Remove/Install Components - Shown On Model 205.0

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove front left door sill	Model 205.0/1/2, 253	AR68.30-P-4100LW
		Model 205.3/4	AR68.30-P-4100CLW
2	Release front seat and tilt backwards	Model 205.0/1/2/3, 253	AR91.10-P-1000LW
		Model 205.4	AR91.10-P-1000LWR
3	Release front left floor covering (1)
4	Take off cover (2)
5	Detach electrical connections (3)
6	Unclip global positioning system antenna splitter (A2/5) and remove
7	Install in the reverse order
