Remove/install AM antenna amplifier with antenna changeover switch - AR82.62-P-8348LWR
MODEL 205.4
Shown on left side of vehicle

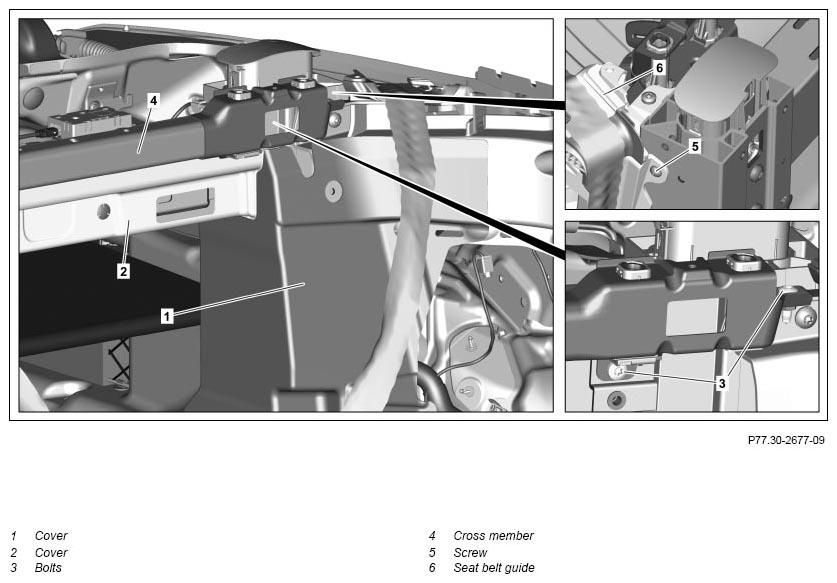

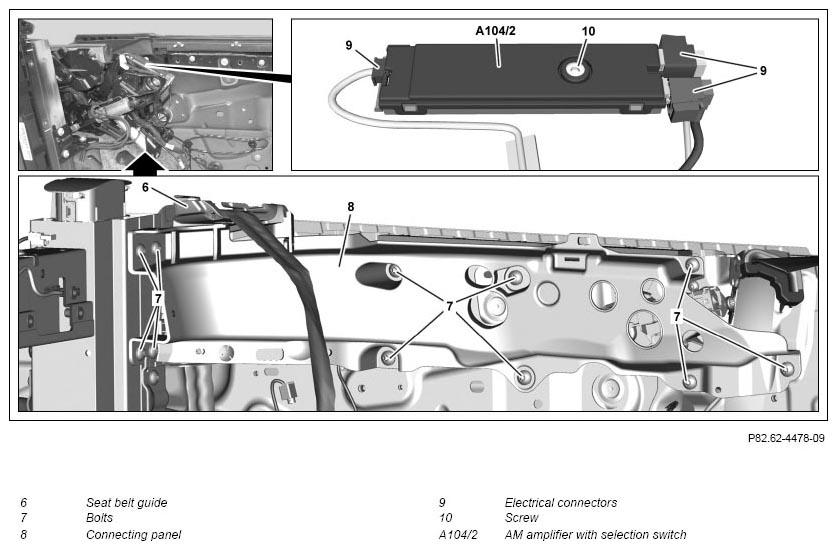

Fig 1: AM Antenna Amplifier With Antenna Changeover Switch Remove/Install Components - Shown On Left Side Of Vehicle
| Risk of injury. Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Risk of injury when performing check and repair work in area of roll bar | Keep body parts out of the area where the roll bar extends. Do not use the cover in the area of the roll bar as a shelf for objects. |
AS91.00-Z-0003-01LCA | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove shoulder cushion in left and right rear | AR91.12-P-1712LWR | |
| 2 | Remove seat side bolster in left and right rear | AR91.12-P-1711LWR | |
| 3 | Remove upper side paneling in left rear | AR68.30-P-4783LWR | |
| 4 | Remove lower side paneling in left rear | AR68.30-P-4784LWR | |
| 5 | Release paneling (1) at left and right in area of roll bars | ||
| 6 | Remove cover (2) | ||
| 7 | Remove screws/bolts (3) at left and right on crossmember (4) and remove crossmember (4) | ||
| 8 | Remove screw/bolt (5) at left belt guide (6) | ||
| 9 | Remove screws/bolts (7) at left connecting panel (8) and remove connecting panel (8) together with belt guide (6) | *BA64.10-P-1001-01D | |
| 10 | Disconnect electrical connections (9) | ||
| 11 | Remove screw/bolt (10) and remove AM amplifier with selection switch (A104/2) | ||
| 12 | Install in the reverse order |
REAR PANEL
| Number | Designation | Model 205.4 | |
|---|---|---|---|
| BA64.10-P-1001-01D | Bolt, connecting panel to body | Nm | 20 |
