Remove/install lower cover on left and right of rear passenger compartment - AR68.30-P-4784LWR
MODEL 205.4
Shown on left side of vehicle

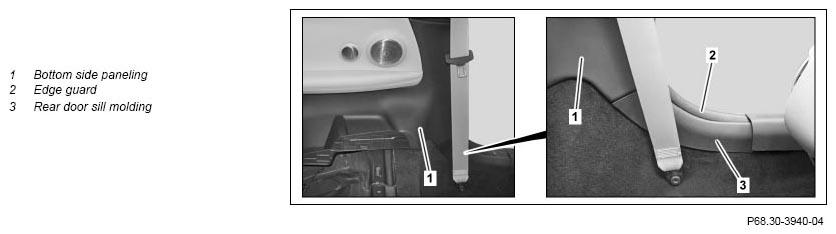

Fig 1: Rear Passenger Compartment Lower Cover Remove/Install Components - Shown On Left Side Of Vehicle
Shown on left side of vehicle with code 810 (Sounds system) and code 882 (Interior monitoring)

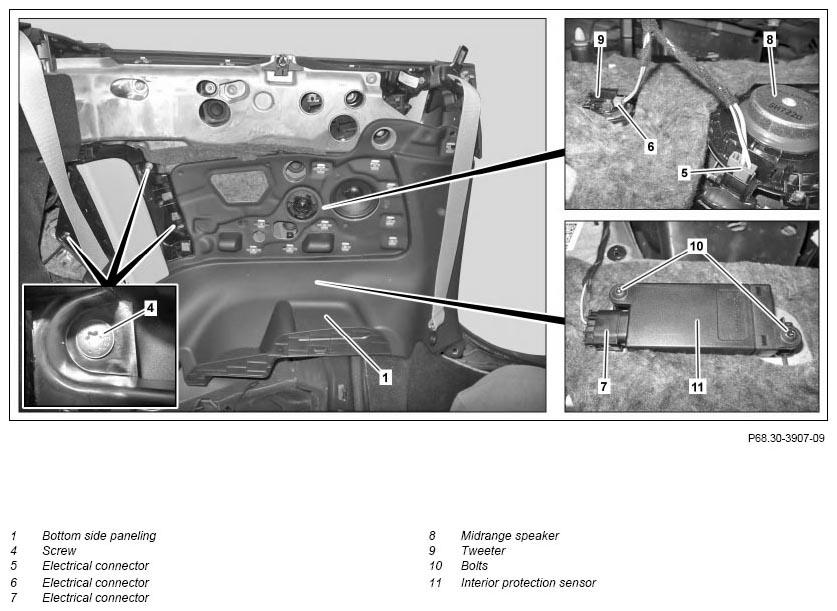

Fig 2: Rear Passenger Compartment Lower Cover Remove/Install Components - Shown On Left Side Of Vehicle With Code 810
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove upper side paneling | AR68.30-P-4783LWR | |
| 2 | Remove seat side bolster for seat backrest in rear | AR91.12-P-1711LWR | |
| 3 | Loosen edge guard (2) from B-pillar | ||
| 4 | Loosen front door sill in rear area | AR68.30-P-4100CLW | |
| 5 | Loosen rear door sill (3) in area of lower side paneling (1) | ||
| 6 | Remove screws (4) | ||
| 7 | Unclip lower side paneling (1) | ||
| 8 | Disconnect electrical connectors (5, 6, 7) | with code 810 (Sound system) Electrical connector (6). with code 882 (Interior motion sensor) Electrical connector (7). |
|
| 9 | Remove lower side paneling (1) | ||
| 10 | Unclip midrange speaker (8) and remove | When replacing lower side paneling (1). | |
| 11 | Turn tweeter (9) counterclockwise and remove | Model 205.4 with code 810 (Sound system) When replacing lower side paneling (1). |
|
| 12 | Unscrew bolts (10) and remove interior protection sensor (11) | Model 205.4 with code 882 (Interior motion sensor) When replacing lower side paneling (1). |
|
| 13 | Install in the reverse order |
