Remove/install upper cover on left and right of rear passenger compartment - AR68.30-P-4783LWR

MODEL 205.4

MODIFICATION NOTES

09.05.2016

Bolt, front belt end fitting

BA91.40-P-1003-01U

Shown on left side of vehicle

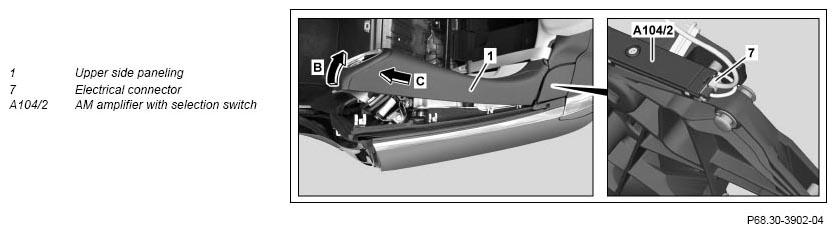

Fig 1: Rear Passenger Compartment Upper Cover Remove/Install Components - Shown On Left Side Of Vehicle (1 Of 3)

Courtesy of MERCEDES-BENZ TRUCK CO., INC.

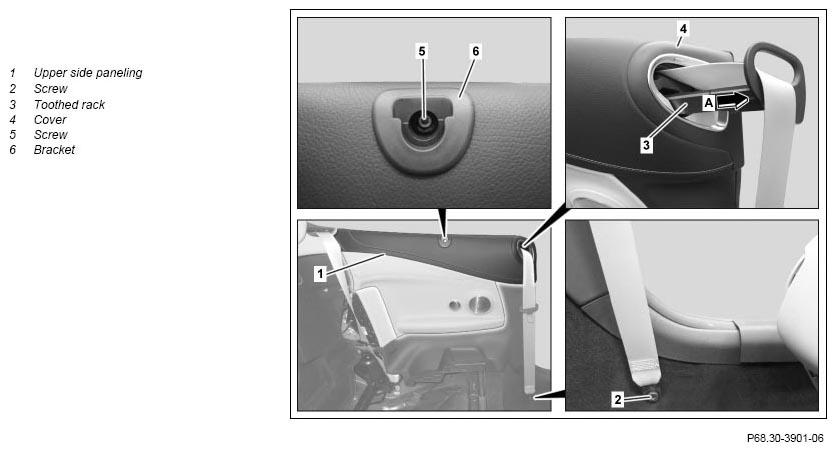

Fig 2: Rear Passenger Compartment Upper Cover Remove/Install Components - Shown On Left Side Of Vehicle (2 Of 3)

Courtesy of MERCEDES-BENZ TRUCK CO., INC.

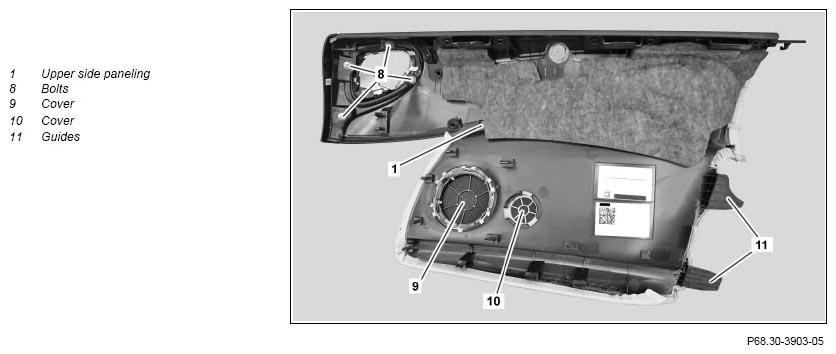

Fig 3: Rear Passenger Compartment Upper Cover Remove/Install Components - Shown On Left Side Of Vehicle (3 Of 3)

Courtesy of MERCEDES-BENZ TRUCK CO., INC.

	Risk of injury. Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating area of mechanical components when moving components.	AS00.00-Z-0009-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Move soft top to repair position R4	Completely close soft top.	AR77.30-P-1030LWR
2	Unscrew bolt (2) from belt end fitting	Bolt, front belt end fitting	*BA91.40-P-1003-01U
3	Completely pull toothed rack (3) out of belt extender (arrow A) and remove
4	Unscrew bolt (5) and remove bracket (6)	If installed.
5	Disconnect electrical connector (7) from AM amplifier with selection switch (A104/2)	When removing top left side paneling (1).
6	Unclip upper front side paneling (1) (arrow B) toward front (arrow C) and remove	Ensure that guides (11) are seated correctly in lower side paneling.
7	Unscrew screws (8) and remove cover (4)	When replacing upper side paneling (1).
8	Unclip cover (9)	When replacing upper side paneling (1).
9	Unclip cover (10)	Model 205.4 with code 810 (Sound system) When replacing upper side paneling (1).
10	Install in the reverse order
