Remove/install front axle brake caliper - AR42.10-P-0070LWC
MODEL 205 with CODE B07 (Ceramic brake system) without CODE B06 (grey-painted brake callipers) without CODE U70 (red-painted brake callipers) 6-piston fixed-caliper brake
| Risk of poisoning from swallowing brake fluid. Risk of injury from skin and eye contact with brake fluid | Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid. | AS42.50-Z-0001-01A | |
| Risk of accident when commissioning the vehicle due to a lack of braking effect when the service brake is operated for the first time after repair work. | Before starting the engine, actuate brake pedal several times until pressure is built up and maintained in the brake system. | AS42.50-Z-0002-01A | |
| Brake fluid notes | AH42.50-P-0001-01A | ||
| Notes on repairs to brake system | AH42.00-P-0003-01A | ||
| Remove/install | |||

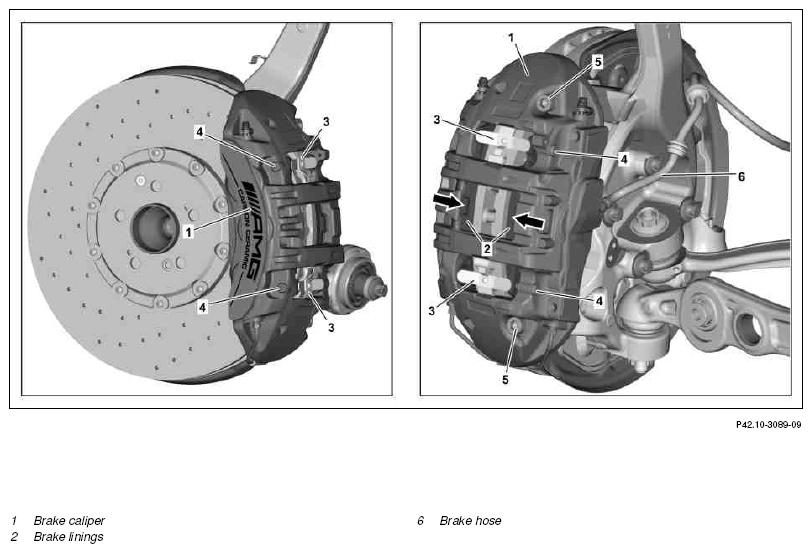

| 1 | Detach brake hose (6) from brake caliper (1) | AR42.10-P-0013LW | |
| 2 | Detach right front brake wear sensor electrical connector from brake caliper (1) | When removing brake caliper (1) on right side of vehicle. | |
MODEL 205.086/087/286/287/386/387/486/487 with CODE B07 (Ceramic brake system) without CODE B06 (grey-painted brake callipers) without CODE U70 (red-painted brake callipers) 6-piston fixed-caliper brake |
*BA42.10-P-1002-10W | ||
| 3 | Remove brake linings (2) | AR42.10-P-1610LWC | |
| 4 | Unscrew brake caliper (1) from brake hose (6) | AR42.10-P-0013LW | |
| 5 | Install in the reverse order | ||
| 6 | Bleed brake system | AR42.10-P-0010LW |
FRONT AXLE BRAKE CALIPER
| Number | Designation | MODEL 205.086/087/286/287/386/387/486/487 with CODE B06/B07 | |
|---|---|---|---|
| BA42.10-P-1002-10W | Screw/bolt, brake wear sensor to brake caliper | Nm | 8 |
